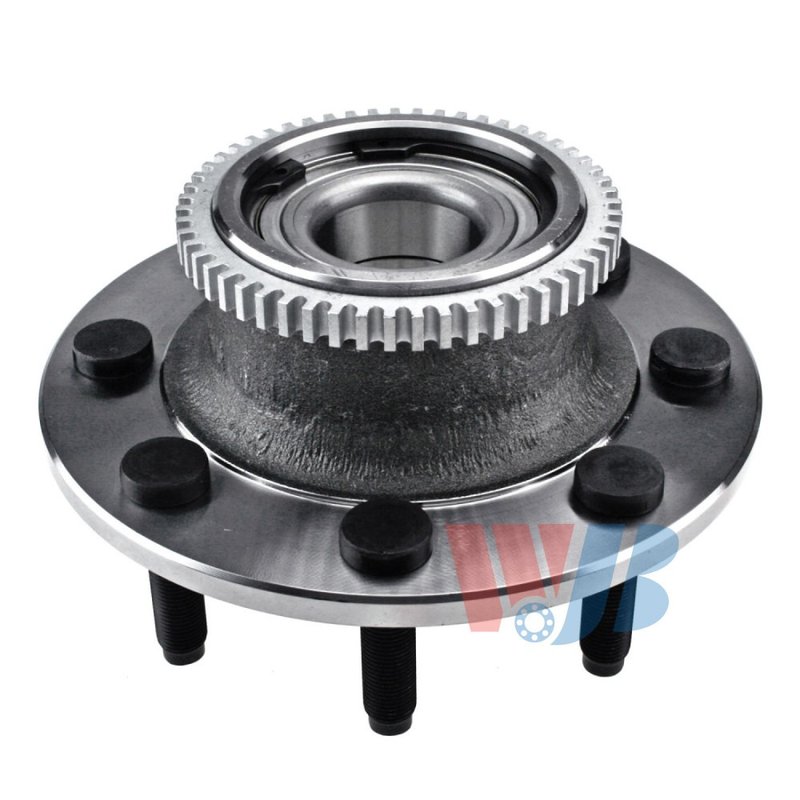

InMotion WA515139 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Ram 2500/3500

The InMotion WA515139 is a front wheel bearing and hub assembly built for select Dodge Ram heavy-duty trucks. It is engineered from OE data and measurements for direct replacement fitment, with precision manufacturing and quality-control standards aimed at consistent wheel support, braking alignment, and sensor performance.

• Front wheel bearing and hub assembly for heavy-duty Ram applications
• Direct replacement design based on OE data and measurements
• Includes ABS sensor
• 8 wheel studs
• Modified square flange shape
• Flange diameter: 205.3 mm
• Bolt circle diameter: 165.2 mm / 5.315 in
• Wheel pilot diameter: 121.0 mm
• Brake pilot diameter: 122.1 mm
• Hub pilot diameter: 99.9 mm
• Flange offset: 57.1 mm

Fitment Details

Compatible with front applications on select Dodge Ram 2500 and Dodge Ram 3500 trucks. Fits 2000-2002 Dodge Ram 2500, front, Standard Grade. Fits 2000-2002 Dodge Ram 3500, front, Standard Grade. Fits 1994-1997 Dodge Ram 3500, front, Standard Grade.

For shoppers searching for a Dodge Ram 2500 front wheel bearing hub assembly or a Dodge Ram 3500 front hub replacement, WA515139 provides the specified OE-style dimensions for the listed vehicles. This part number, WA515139, is also a direct reference point when matching the correct front hub assembly for these Ram truck applications.

Common Repair Uses

• Wheel bearing noise from the front hub area
• ABS warning light caused by a failing hub sensor or hub assembly
• Front wheel looseness or play
• Uneven braking feel related to hub wear
• Incorrect hub fitment after a previous replacement

Installation Notes

Verify the vehicle year, model, front position, and Standard Grade application before installation. Confirm flange dimensions, bolt circle diameter, stud count, and sensor configuration against the original part. Clean the mounting surface and inspect related brake and steering components during replacement. WA515139 is intended as a direct replacement hub assembly for the listed front applications.

Quality Assurance

InMotion manufactures this hub assembly using high-precision processes and strict quality-control criteria. Each unit is engineered from OE data and measurements to support proper fitment, performance, and service life in the specified Dodge Ram 2500 and Dodge Ram 3500 front applications.
