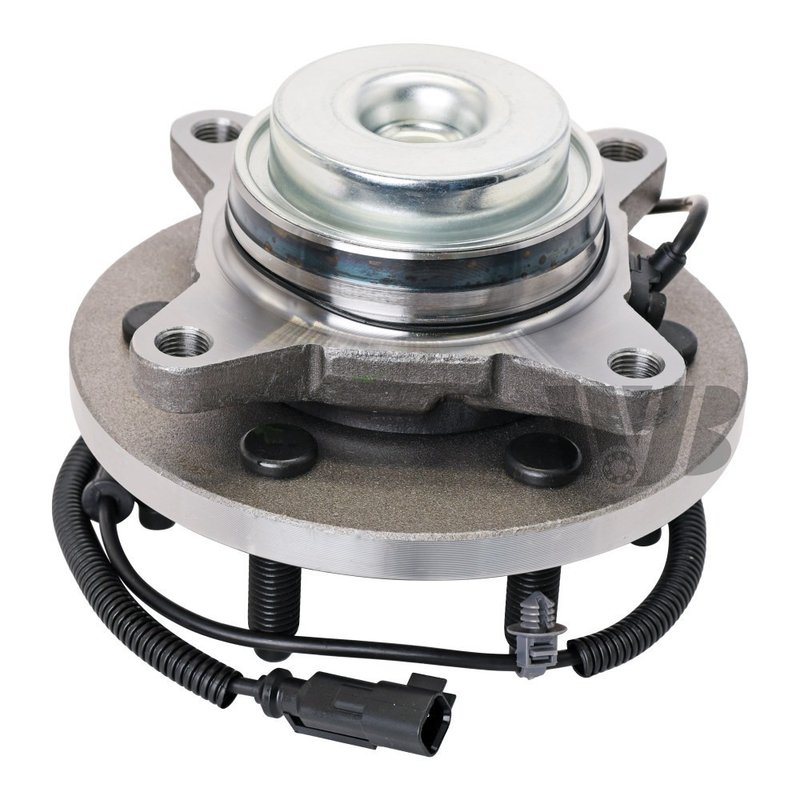

InMotion WA515143HD Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly

InMotion WA515143HD is a new front wheel bearing and hub assembly built for direct replacement on select Ford, Lincoln applications. It is engineered from OE data and measurements for accurate fitment, stable wheel support, and long service life on the front axle.

Compatible with 2011-2014 Ford F-150, 2011-2014 Ford Expedition, and 2011-2014 Lincoln Navigator, this hub assembly includes an ABS sensor, wiring harness, and a roller bearing design for service-ready replacement. The WA515143HD is a practical choice when replacing a worn front hub on a Ford F-150 front wheel bearing hub assembly or a Lincoln Navigator front hub assembly.

Key Features

• New wheel bearing and hub assembly for front position use
• ABS sensor included with linear connector shape
• Wiring harness included; harness length is 38 in.
• Roller bearing type for OE-style hub service
• Circle flange shape with 6 flange bolts included
• 54-tooth tone ring for ABS signal input
• Non-driven hub assembly
• Hub pilot diameter: 3.54 in. / 90 mm
• Flange diameter: 7.2 in. / 183 mm
• Flange offset: 1.8 in. / 45.6 mm
• Flange bolt thread size: M14-2
• Lug bolt thread size: M14-1.5

Detailed Description

InMotion WA515143HD is manufactured with strict quality-control criteria and built as a direct replacement hub assembly for the front of select Ford and Lincoln trucks and SUVs. It uses OE-based measurements to help ensure proper fitment and consistent performance, while the integrated ABS tone ring and sensor support wheel speed signal operation. This part cross-references SKF BR930791 for the same application.

Use WA515143HD when servicing the front hub on 2011-2014 Ford F-150, 2011-2014 Ford Expedition, or 2011-2014 Lincoln Navigator. The assembly is designed for non-driven front applications and includes the mounting points and dimensions needed for a straightforward OE-style replacement.

What It Helps Fix

• Front wheel bearing noise or roughness
• Excessive play or looseness at the wheel hub
• ABS warning light caused by hub sensor or tone ring issues
• Vibration or instability from a worn front hub assembly
• Uneven wheel support from a damaged bearing unit

Installation Notes

Confirm front-position fitment by year, make, and model before ordering. Verify flange bolt thread size, lug bolt thread size, hub pilot diameter, and ABS connector style against the original part. Because this assembly includes an ABS sensor and wiring harness, inspect the vehicle harness and connector routing during installation. Professional installation is recommended for proper torque, sensor alignment, and brake system verification.

Quality Assurance

InMotion manufactures this hub assembly using high-precision processes and OE data to support fit accuracy and durability. The WA515143HD is a new part built under strict quality-control standards for front hub replacement on the listed Ford and Lincoln vehicles.
