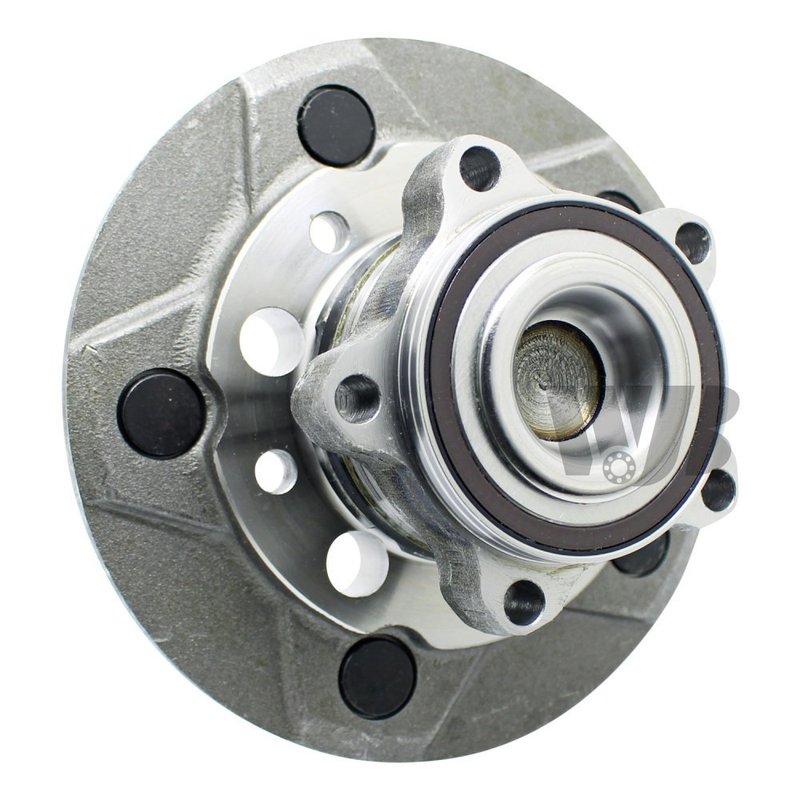

InMotion WA515153 Wheel Bearing and Hub Assembly - Front

Front Wheel Hub Assembly for Transit Vans

InMotion WA515153 is a front wheel bearing and hub assembly built for 2015-2019 Ford Transit-150, Transit-250, Transit-350, and Transit-350 HD models. It is engineered from OE data and measurements for direct replacement fitment, with the hub, bearing, and ABS sensor integrated into one service part.

Key Features

• Direct replacement front hub assembly for Ford Transit van applications
• Includes anti-lock brake sensor for vehicles equipped with ABS
• 5 flange bolt holes and 5 wheel studs
• Wheel pilot diameter: 64.9 mm
• Brake pilot diameter: 92.9 mm
• Hub pilot diameter: 87.5 mm
• Flange diameter: 208.0 mm
• Bolt circle diameter: 160.1 mm
• Flange offset: 78.2 mm

Detailed Description

Built for front-end service on Ford Transit vans, InMotion WA515153 is manufactured with precision processes and strict quality-control standards to match the original application. The assembly is designed around OE specifications to support proper wheel mounting, brake alignment, and sensor integration. For buyers searching for a front wheel bearing and hub assembly for 2015-2019 Ford Transit-150, Transit-250, Transit-350, or Transit-350 HD, this part number WA515153 provides a direct-fit replacement solution.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Repair Uses

• Wheel bearing noise from the front hub area
• ABS warning light caused by a failed hub sensor
• Excessive front wheel play or looseness
• Uneven brake rotor contact from hub wear
• Vibration or roughness during front wheel rotation

Installation Notes and Tips

Verify front axle fitment, wheel pilot diameter, and bolt circle diameter before installation. Confirm the ABS sensor connection and inspect the mating surfaces, knuckle, and axle hardware for wear or corrosion. Torque fasteners to Ford service specifications and perform a road test after installation to confirm quiet operation and proper ABS function.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and controlled production standards to support fitment, performance, and service life. WA515153 is built as a direct replacement for the original front hub assembly on the listed Ford Transit applications.
