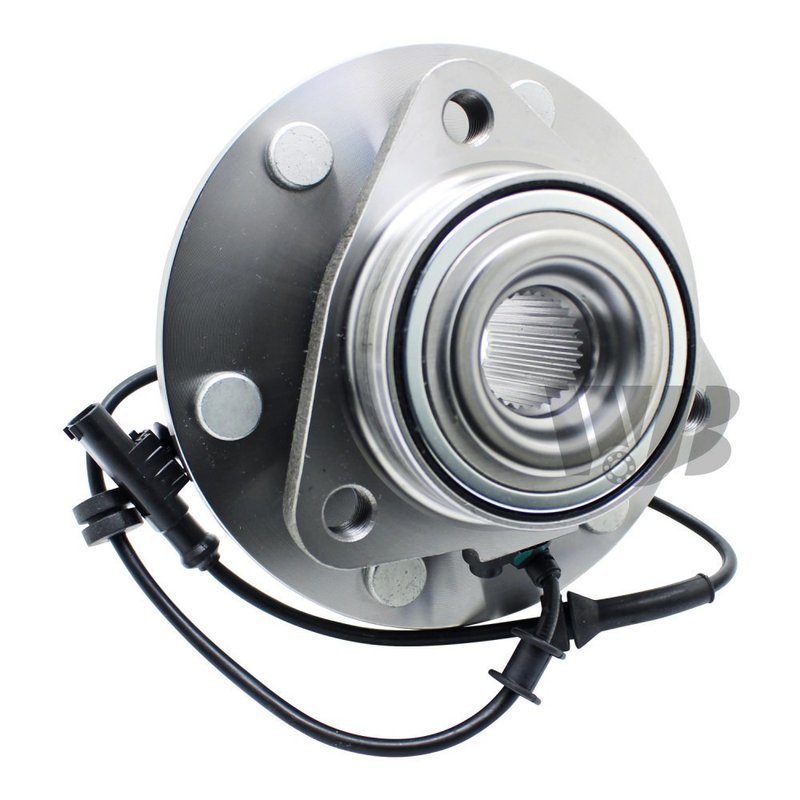

InMotion WA515155 Wheel Bearing and Hub Assembly - Front

Front Wheel Hub Assembly for Nissan Armada and Titan

InMotion WA515155 is a front wheel bearing and hub assembly built for 2012-2015 Nissan Armada and 2012-2015 Nissan TITAN Standard Grade applications. It is engineered from OE data for direct replacement fitment, with the hub, bearing, and ABS sensor integration matched to the original application.

Key Features

• Direct replacement front hub assembly for Nissan Armada and Nissan TITAN
• 29-spline design with 6 wheel studs
• ABS sensor included
• Triangle flange shape with 3 flange bolt holes
• Wheel pilot diameter: 77.6 mm
• Brake pilot diameter: 89.9 mm
• Hub pilot diameter: 88.9 mm
• Bolt circle diameter: 139.5 mm / 4.75 in
• Flange diameter: 171.0 mm
• Flange offset: 45.3 mm

Detailed Description

This InMotion wheel bearing and hub assembly, part number WA515155, is manufactured using precision processes and strict quality-control standards. It is designed for the front position on 2012-2015 Nissan Armada and 2012-2015 Nissan TITAN Standard Grade models, with dimensions and OE-based measurements that support proper fitment, bearing performance, and service life. The integrated ABS sensor helps maintain the original sensor-equipped hub configuration, while the 29-spline hub and 6-stud flange match the specified driveline and wheel mounting requirements. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What This Part Helps Address

• Front wheel bearing noise or rough rotation
• Excessive wheel play or looseness at the hub
• ABS warning light concerns related to a failed hub sensor assembly
• Uneven wheel mounting caused by worn hub components
• Vibration or instability traced to hub wear

Installation Notes and Tips

Fits 2012-2015 Nissan Armada, front. Fits 2012-2015 Nissan TITAN, front. Confirm the 29-spline count, 6-stud wheel pattern, and ABS-equipped front hub configuration before installation. Clean the mounting surface, inspect the knuckle and axle interface, and torque fasteners to the vehicle manufacturer’s specifications. Part number WA515155 should be matched to the vehicle’s front hub location and Standard Grade application details.

Quality Assurance

InMotion manufactures this hub assembly with OE data and measurements to support correct application matching and consistent dimensional accuracy. The part is produced under strict quality-control criteria for direct replacement use on the listed Nissan Armada and Nissan TITAN front applications.
