Part #: WA515156HD

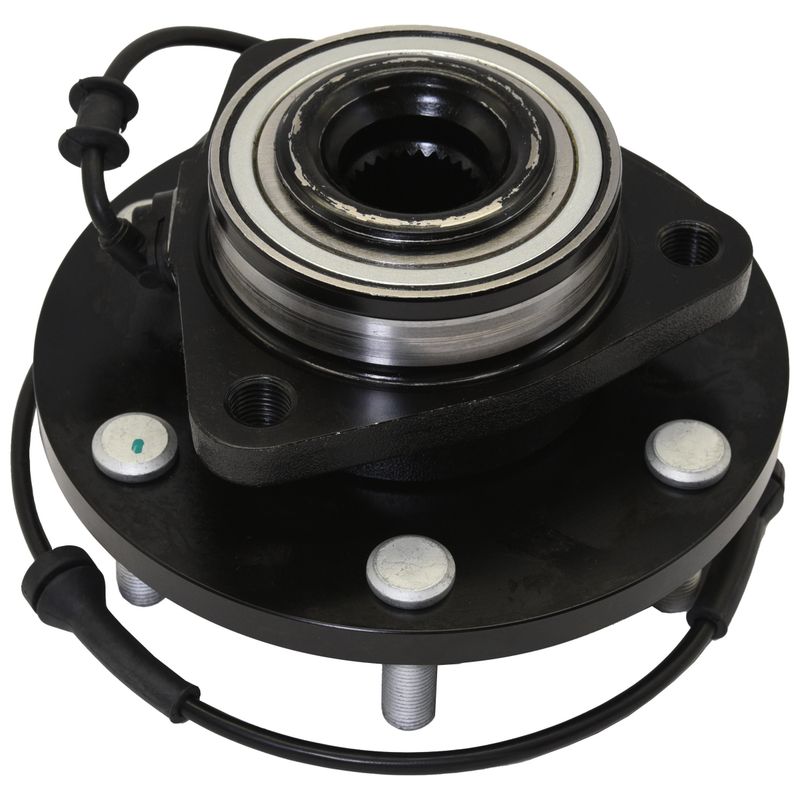

InMotion WA515156HD Wheel Bearing and Hub Assembly - Front

Front
⚙️ 8 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$323.34Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🚗Fitment: Nissan, Armada and TITAN
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Wheel Bearing and Hub Assembly options
InMotion WA515156HD Wheel Bearing and Hub Assembly - Front
BrandInMotion
Part NumberWA515156HD
Spline Quantity29
Hub Pilot Diameter3.54
Hub Pilot Diameter90
Flange ShapeCircle
Anti Lock Brake Sensor IncludedYes
Bearing TypeRoller
Flange Offset1.79
Flange Offset45.5
Flange Diameter171
Flange Diameter6.73
Abs Connector ShapeLinear
Abs Ring TypeTone ring
Driven Or Non-drivenDriven
Flange Bolt Size (in)0.47
Flange Bolt Size (mm)12
Flange Bolt Thread SizeM12-1.25
Hub Centerbore Diameter (in)5.5
Hub Centerbore Diameter (mm)139.69999999999999
Lug Bolt Thread SizeM14-1.5
New Or RemanufacturedNew
Number Of Abs Sensor Ring Teeth54
Number Of Flange Bolts Included6
Number Of Lug Bolts Included0
Number Of Mounting Bolts To Knuckle3
Wiring Harness IncludedYes
Wiring Harness Length (in)27

This part fits 8 vehicles. Search below:

YearMakeModelDrive TypePositionNotes
2015NissanArmadaRWDFrontPremium Grade
2015NissanTITANRWDFrontPremium Grade
2014NissanArmadaRWDFrontPremium Grade
2014NissanTITANRWDFrontPremium Grade
2013NissanArmadaRWDFrontPremium Grade
2013NissanTITANRWDFrontPremium Grade
2012NissanArmadaRWDFrontPremium Grade
2012NissanTITANRWDFrontPremium Grade

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

402029FF0A515156BR930886SP500705

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
