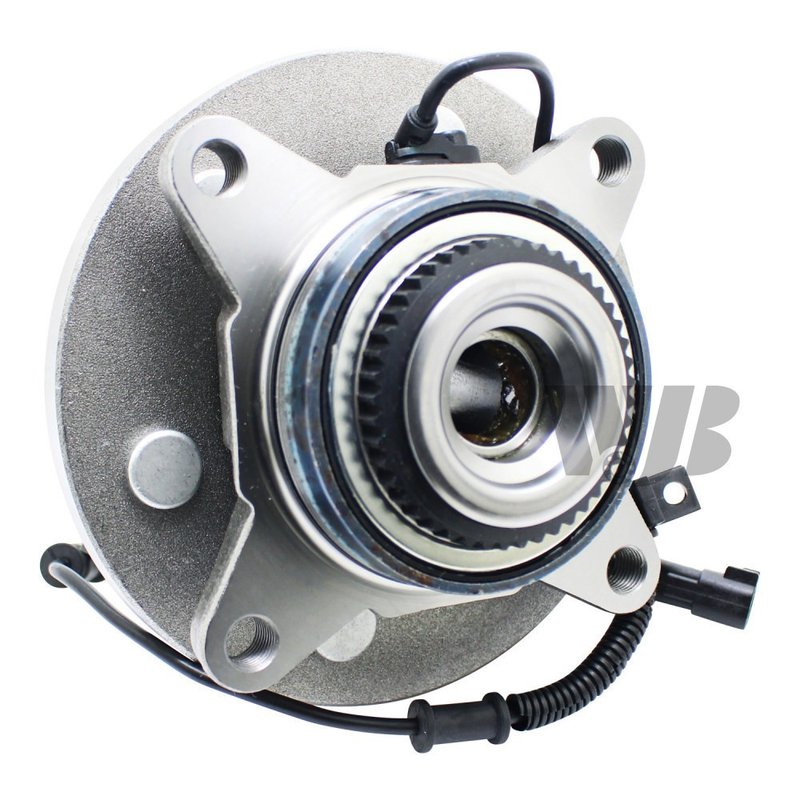

InMotion WA515158 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Expedition and Navigator

The InMotion WA515158 is a front wheel bearing and hub assembly built for 2015-2017 Ford Expedition and 2015-2017 Lincoln Navigator applications. It is engineered from OE data and measurements for direct replacement fitment, with the hub, bearing, and ABS sensor integrated into one service part.

Key Features

• Front wheel bearing and hub assembly for Ford Expedition and Lincoln Navigator
• Direct replacement design based on OE data and dimensions
• 45 spline quantity
• 6 wheel studs with 4 flange bolt holes
• ABS sensor included
• Hub pilot diameter: 99.3 mm
• Wheel pilot diameter: 86.7 mm
• Brake pilot diameter: 89.9 mm
• Bolt circle diameter: 135.0 mm
• Flange diameter: 183.0 mm
• Flange offset: 45.4 mm

Detailed Description

InMotion WA515158 is manufactured with high-precision processes and strict quality-control standards to match the original front hub assembly layout on select full-size SUVs. This part is designed for 2015-2017 Ford Expedition, front, Standard Grade, and 2015-2017 Lincoln Navigator, front, Standard Grade. The integrated ABS sensor helps maintain proper wheel speed signal function, while the OE-based dimensions support correct hub location, wheel mounting, and brake interface. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Repair Symptoms

• Wheel bearing noise from the front end
• Excessive wheel play or looseness
• ABS warning light related to front wheel speed sensing
• Uneven hub wear or vibration at the wheel
• Improper wheel mounting due to hub fitment issues

Installation Notes and Tips

Confirm front axle fitment, bolt circle diameter, and spline count before installation. Inspect the mating surfaces, axle nut condition, and brake components during service, and torque all fasteners to the vehicle manufacturer’s specifications. Verify ABS sensor connection and wheel speed operation after installation. Fits 2015-2017 Ford Expedition, front. Fits 2015-2017 Lincoln Navigator, front.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and controlled production standards to support proper fitment and long service life. Part number WA515158 is built as a direct replacement for the listed applications.
