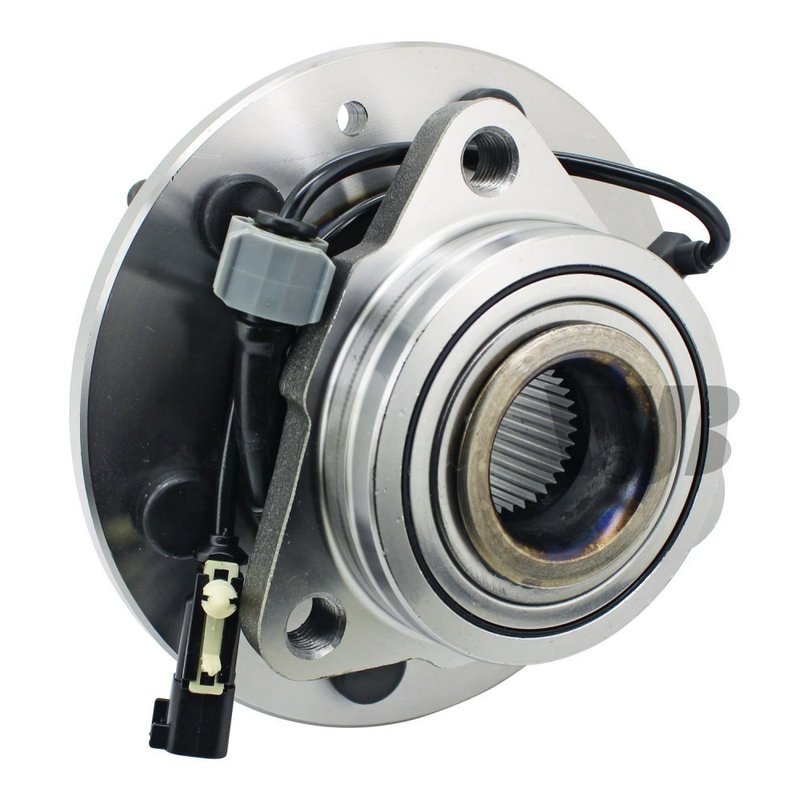

InMotion WA515160 Wheel Bearing and Hub Assembly - Front or Rear

Front Wheel Bearing Hub Assembly

InMotion WA515160 is a front wheel bearing and hub assembly built for direct replacement service on select GM full-size trucks and SUVs. It is engineered from OE data and measurements for accurate fitment, stable wheel support, and consistent bearing performance.

With integrated ABS sensor coverage and precise hub dimensions, this assembly supports proper wheel speed signal operation and dependable front-end service on applications such as Cadillac Escalade, Chevrolet Tahoe, and GMC Yukon.

Key Features

• Part number: WA515160
• Wheel bearing and hub assembly for front axle service
• 33 spline quantity
• 6 wheel studs with 3 flange bolt holes
• ABS sensor included
• Wheel pilot diameter: 77.7 mm
• Brake pilot diameter: 78.3 mm
• Hub pilot diameter: 99.1 mm
• Flange diameter: 179.0 mm
• Bolt circle diameter: 139.6 mm
• Flange offset: 49.7 mm

Detailed Description

InMotion WA515160 is manufactured with high-precision processes and strict quality-control standards to match the original hub assembly dimensions for the listed vehicles. It is a direct replacement wheel hub assembly for front applications on 2015-2020 Cadillac Escalade and Escalade ESV, 2015-2020 Chevrolet Tahoe, 2015-2020 GMC Yukon and Yukon XL, 2019 Cadillac XTS, 2019 Chevrolet Silverado 1500 LD, 2019 GMC Sierra 1500 Limited, and 2014-2018 Chevrolet Silverado 1500 and GMC Sierra 1500. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Wheel bearing noise from a worn front hub assembly
• ABS warning light concerns related to hub-mounted sensor failure
• Wheel looseness or play caused by bearing wear
• Uneven front wheel rotation from damaged hub components
• Fitment issues when replacing an OE-style front hub on listed GM vehicles

Installation Notes

Verify the vehicle year, make, model, and position before installation. Compare the spline count, bolt pattern, pilot diameters, and flange dimensions to the removed part to confirm match. Clean the mounting surface and inspect related suspension and brake components during service. Professional installation is recommended for proper torque and ABS system verification.

Quality Assurance

InMotion manufactures this hub assembly using OE data and measurements to support correct fitment, performance, and service life. The part is produced under strict quality-control criteria for the listed front applications, including Cadillac Escalade, Chevrolet Tahoe, and GMC Yukon platforms.
