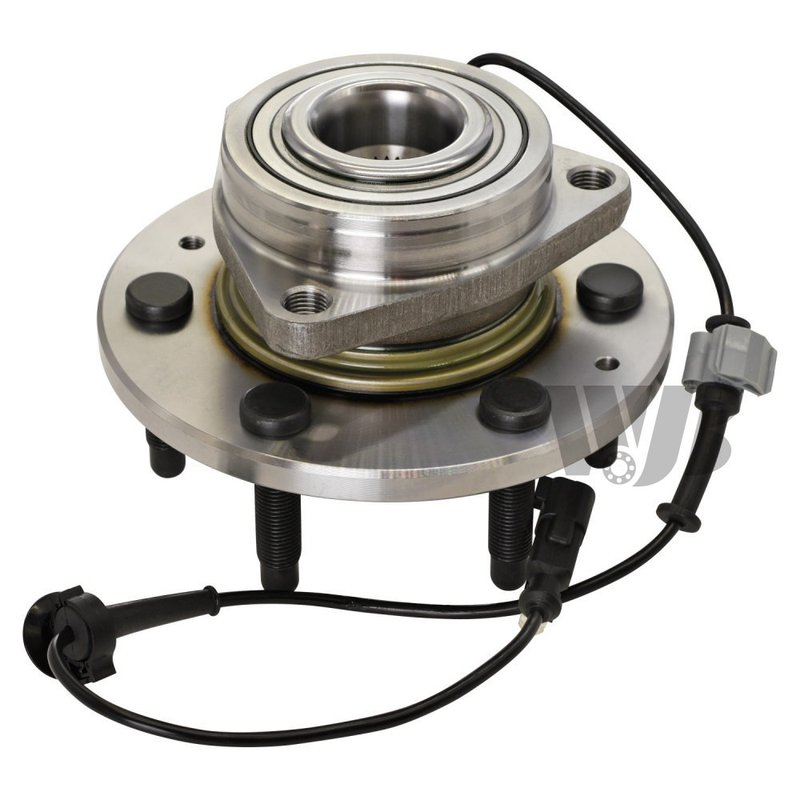

InMotion WA515160HD Wheel Bearing and Hub Assembly - Front or Rear

OE-Style Front Wheel Hub Assembly

InMotion WA515160HD is a new wheel bearing and hub assembly built for front axle service on select Cadillac, Chevrolet, and GMC trucks and SUVs. It is engineered from OE data and measurements for direct replacement fitment, with a roller bearing design, integrated ABS sensor, and tone ring construction.

Key Features

• Part number WA515160HD
• New wheel bearing and hub assembly for driven front applications
• 33-spline hub design
• Roller bearing type for front hub service
• Integrated ABS sensor with linear connector and wiring harness included
• ABS tone ring with 55 teeth
• 6-bolt flange with M14-1.5 flange bolt thread size
• 3-bolt knuckle mounting pattern
• Hub pilot diameter: 78.3 mm (3.08 in)
• Flange diameter: 179 mm (7.05 in)
• Flange offset: 49.7 mm (1.96 in)
• Hub centerbore diameter: 139.7 mm (5.5 in)

Detailed Description

This InMotion hub assembly is manufactured with strict quality-control standards and built for vehicles that require a front driven hub with ABS integration. WA515160HD is a direct replacement style part for 2014-2018 Chevrolet Silverado 1500, 2014-2018 GMC Sierra 1500, 2019 Chevrolet Silverado 1500 LD, 2019 GMC Sierra 1500 Limited, 2015-2020 Cadillac Escalade, 2015-2020 Cadillac Escalade ESV, 2015-2020 Chevrolet Tahoe, 2015-2020 GMC Yukon, 2015-2020 GMC Yukon XL, and 2017-2019 Cadillac XTS. This part cross-references Timken HA590491 and SKF BR930914 for the same application.

Common Repair Symptoms

• Front wheel bearing noise or growling
• ABS warning light caused by hub sensor issues
• Wheel play or looseness at the hub
• Uneven front-end vibration during driving
• Failed hub assembly on driven front axle applications

Installation Notes

Verify spline count, flange bolt pattern, and ABS connector style before installation. This assembly uses a 3-bolt knuckle mount, 6 flange bolts, and M14-1.5 thread sizes for the flange and lug interface. Confirm front position fitment for your exact vehicle, including 2015-2020 Cadillac Escalade and 2014-2018 Chevrolet Silverado 1500 applications, before replacing the original hub.

Quality Assurance

InMotion manufactures this hub assembly using OE data and precise measurements to support proper fitment, performance, and service life. The part is new and built under strict quality-control criteria for direct replacement use.
