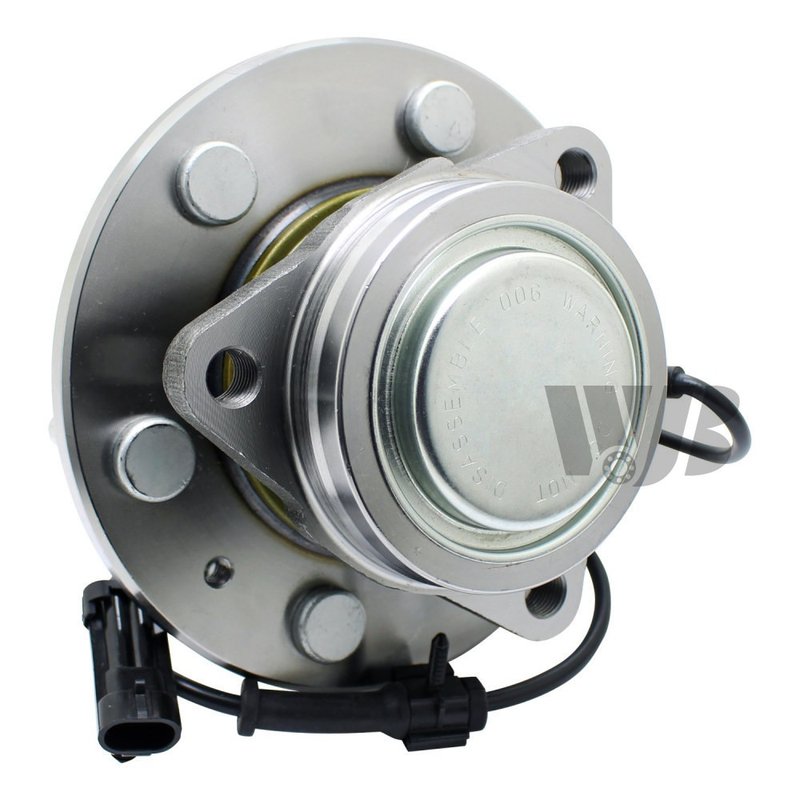

InMotion WA515161 Wheel Bearing and Hub Assembly - Front

Front Wheel Hub Assembly for Express and Savana

InMotion WA515161 is a front wheel bearing and hub assembly built for 2014 Chevrolet Express 1500 and 2014 GMC Savana 1500 applications. It is engineered from OE data and measurements for direct replacement fitment, with the precision and dimensional control needed for dependable wheel support and ABS function.

Key Features

• Front wheel bearing and hub assembly for standard grade applications
• Fits 2014 Chevrolet Express 1500, front
• Fits 2014 GMC Savana 1500, front
• Includes ABS sensor
• 6 wheel studs with 3 flange bolt holes
• Bolt circle diameter: 139.7 mm
• Flange diameter: 179.0 mm
• Flange offset: 49.9 mm
• Wheel pilot diameter: 77.7 mm
• Brake pilot diameter: 78.4 mm
• Hub pilot diameter: 99.2 mm

Detailed Description

WA515161 is a direct-fit front hub assembly for the 2014 Chevrolet Express 1500 and 2014 GMC Savana 1500. The assembly is manufactured to strict quality-control standards and built using OE specifications to support proper wheel mounting, bearing operation, and sensor integration. This part cross-references ACDelco 84856649 for the same application.

Common Repair Uses

• Wheel bearing noise from the front hub area
• Excessive wheel play or looseness
• ABS warning light caused by a failed hub sensor
• Uneven wheel mounting or hub wear
• Vibration or roughness from a worn front hub assembly

Installation Notes and Tips

Confirm front axle fitment and standard grade application before ordering. Inspect the mating surfaces, axle components, and ABS wiring during replacement, and torque fasteners to the vehicle manufacturer’s specifications. Verify wheel pilot, brake pilot, and bolt circle dimensions during installation to ensure correct seating and alignment.

Quality Assurance

InMotion manufactures this hub assembly with high-precision processes and strict inspection criteria. OE-based measurements are used to help maintain fitment, performance, and service life for the specified Express 1500 and Savana 1500 front applications.
