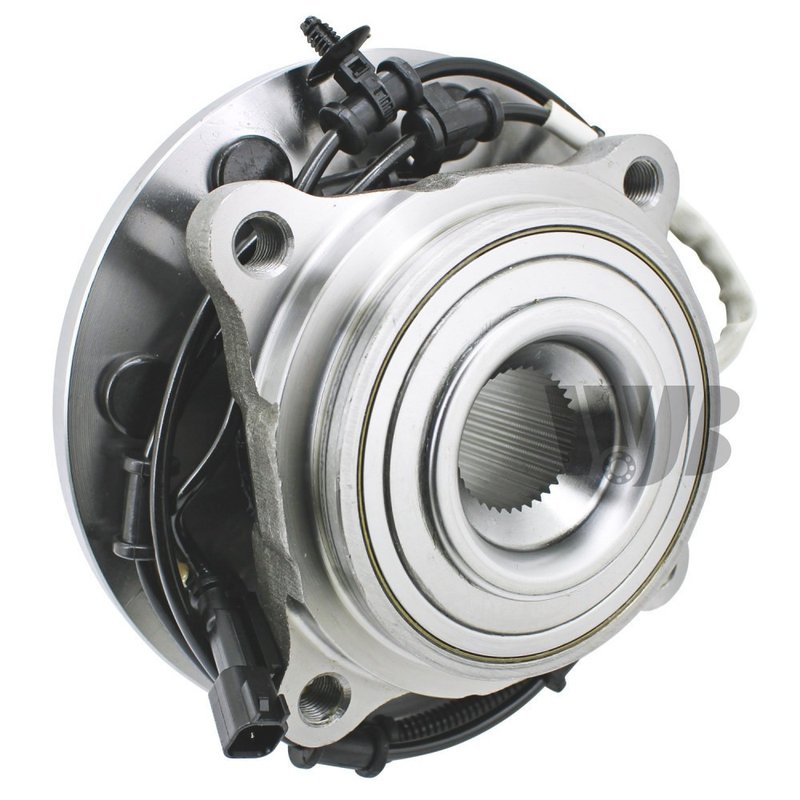

InMotion WA515162 Wheel Bearing and Hub Assembly - Front

Front Wheel Hub Assembly for Ram 2500/3500

The InMotion WA515162 wheel bearing and hub assembly is a direct replacement for front applications on select Ram heavy-duty trucks. Built from OE data and measurements, it is engineered for accurate fitment, stable wheel support, and long service life on Ram 2500 and Ram 3500 models.

Key Features

• Front wheel bearing and hub assembly for 2014-2018 Ram 2500 and 2013-2018 Ram 3500
• 35-spline design with 8 wheel studs
• 4 flange bolt holes with a 165.0 mm bolt circle diameter
• Integrated anti-lock brake sensor included
• Precision-built using OE specifications for fit and performance
• Part number WA515162 for easy identification

Detailed Product Overview

InMotion WA515162 is manufactured with strict quality-control standards and high-precision production methods to match the original hub assembly dimensions. Important measurements include a 121.0 wheel pilot diameter, 122.9 brake pilot diameter, 120.0 hub pilot diameter, 56.3 flange offset, and 205.0 flange diameter. These specifications help ensure proper wheel mounting, brake interface alignment, and dependable front-end operation on Ram 2500 and Ram 3500 trucks.

This front wheel bearing and hub assembly is a practical OE-style replacement for drivers searching for a Ram 2500 front hub assembly or Ram 3500 front wheel bearing hub assembly. The WA515162 part number is also useful when cross-checking service records or ordering by reference.

What It Helps Address

• Front wheel bearing noise or rough rotation
• Excessive wheel play or looseness at the hub
• ABS warning light concerns related to the hub sensor
• Uneven wheel mounting caused by worn hub components
• Vibration or instability from a damaged front hub assembly

Installation Notes and Tips

Verify spline count, bolt pattern, pilot diameters, and ABS sensor configuration before installation. This assembly is listed for the front position only and is not a universal replacement. Confirm vehicle year, model, and trim details against the fitment data for Ram 2500 and Ram 3500 applications before service begins.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and controlled production standards to support consistent fitment and durability. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
