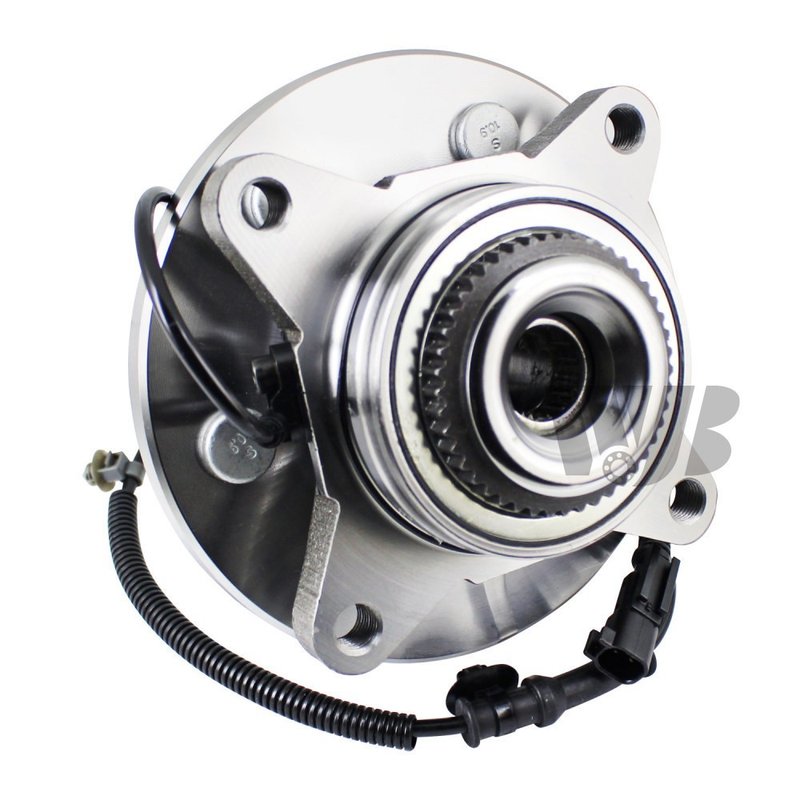

InMotion WA515166 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing and Hub Assembly for Ford F-150

InMotion WA515166 is a front wheel bearing and hub assembly built for 2011-2014 Ford F-150 Standard Grade applications. It is engineered from OE data and measurements for direct replacement fitment, with the hub, bearing, and ABS sensor integration matched to the original application.

Key Features

• Direct replacement front hub assembly for 2011-2014 Ford F-150
• Part number WA515166
• 45 spline quantity
• 6 wheel studs with 4 flange bolt holes
• ABS sensor included
• Wheel pilot diameter: 86.7 mm
• Brake pilot diameter: 90.0 mm
• Hub pilot diameter: 99.2 mm
• Bolt circle diameter: 135.0 mm
• Flange diameter: 183.0 mm
• Flange offset: 45.5 mm

Detailed Description

This InMotion wheel bearing and hub assembly is manufactured with precise tolerances and quality-control standards to match the original front hub assembly on the Ford F-150. WA515166 is designed for the front position on 2011, 2012, 2013, and 2014 Ford F-150 Standard Grade trucks, making it a direct-fit OE-style replacement for service work that requires correct hub geometry, stud pattern, and ABS sensor integration. This part cross-references HUB349 for the same application.

What It Helps Fix

• Front wheel bearing noise or rough rotation
• Excessive hub play or looseness at the wheel end
• ABS warning light concerns related to the front hub sensor
• Wheel mounting issues caused by worn studs or hub wear
• Vibration or uneven wheel-end operation from a damaged hub assembly

Installation Notes and Tips

Verify front-position fitment before installation on your Ford F-150. Confirm the spline count, bolt circle diameter, and pilot dimensions match the original part, and inspect the mating surfaces, axle interface, and fasteners for wear or corrosion before assembly. Because the ABS sensor is included, ensure the connector and routing match the vehicle’s original configuration.

Quality Assurance

InMotion manufactures these hub assemblies using OE data, precise measurements, and strict quality-control criteria to support proper fitment, performance, and service life on the specified Ford F-150 applications.
