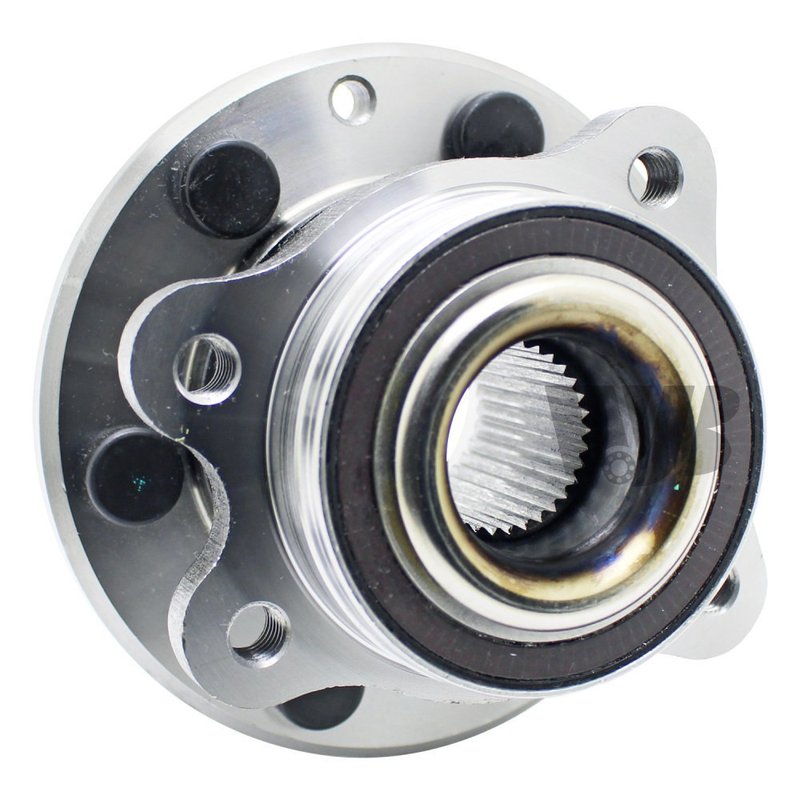

InMotion WA515167 Wheel Bearing and Hub Assembly - Front

Front Wheel Hub Assembly for Colorado and Canyon

InMotion WA515167 is a front wheel bearing and hub assembly built for 2015-2022 Chevrolet Colorado and 2015-2022 GMC Canyon Standard Grade applications. It is engineered from OE data and measurements for direct replacement fitment, with the hub, bearing, and ABS sensor integrated into one service part.

Key Features

• Direct replacement front hub assembly for Chevrolet Colorado and GMC Canyon
• 33-spline design with 6 wheel studs
• ABS sensor included for proper wheel speed signal integration
• 4 flange bolt holes for secure mounting
• OE-based dimensions for fitment, performance, and service life
• Hub pilot diameter: 90.4 mm
• Wheel pilot diameter: 66.8 mm
• Brake pilot diameter: 70.8 mm
• Bolt circle diameter: 120.0 mm
• Flange diameter: 153.1 mm and flange offset: 57.9 mm

Detailed Description

InMotion WA515167 is a front wheel bearing and hub assembly designed for Standard Grade 2015-2022 Chevrolet Colorado and 2015-2022 GMC Canyon models. Built with high-precision manufacturing and strict quality-control standards, this assembly follows OE data and measurements to match the original hub geometry and mounting points. The integrated ABS sensor supports wheel speed input at the front axle, while the 33-spline hub and 6-stud wheel mounting layout match the specified application.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Part Can Address

• Front wheel bearing noise such as humming, growling, or rumbling
• Excessive wheel play or looseness at the hub
• ABS warning light caused by a failed wheel speed sensor in the hub assembly
• Uneven wheel rotation or vibration from hub wear
• Mounting issues related to a damaged or worn front hub assembly

Installation Notes and Tips

Verify front axle fitment by year, make, model, and Standard Grade configuration before installation. Inspect the mating surfaces, axle spline engagement, and brake components during service, and confirm the ABS connector and sensor routing match the original setup. Torque all fasteners to the vehicle manufacturer’s specifications and check wheel bearing operation after installation.

Quality Assurance

InMotion manufactures this hub assembly using OE-based measurements and controlled production standards to support proper fitment and long-term service in the listed Chevrolet Colorado and GMC Canyon applications.
