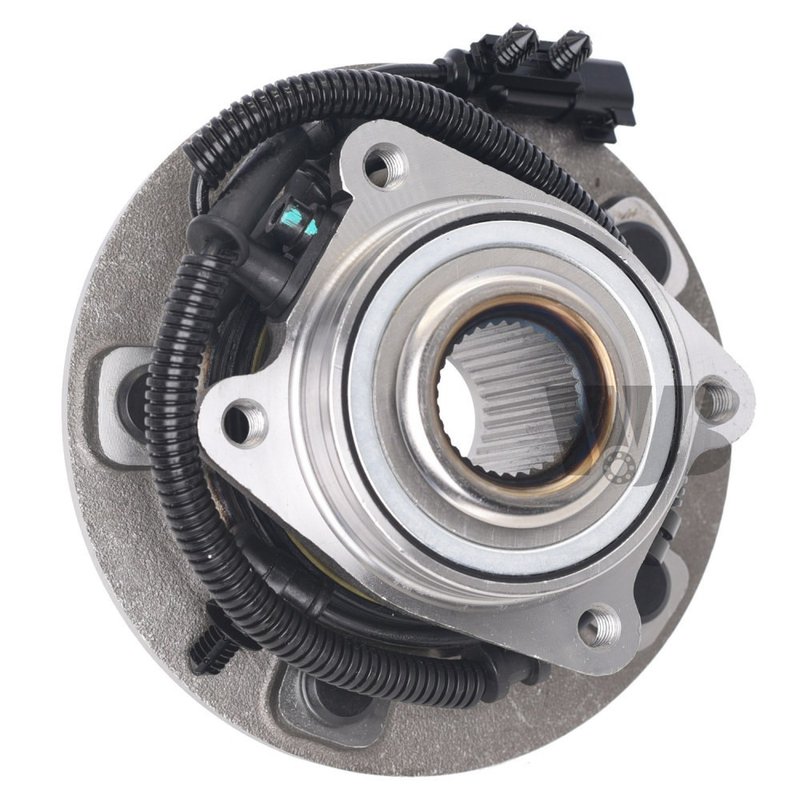

InMotion WA515173 Wheel Bearing and Hub Assembly - Front

Front Wheel Hub Assembly for Pacifica

InMotion WA515173 is a front wheel bearing and hub assembly built for 2017-2020 Chrysler Pacifica Standard Grade applications. It is engineered from OE data and measurements for direct replacement fitment, with the hub dimensions and sensor integration needed for a precise front-end repair.

• Fits 2017-2020 Chrysler Pacifica, front
• Part number: WA515173
• 32-spline hub design
• 5 wheel studs and 4 flange bolt holes
• ABS sensor included
• Wheel pilot diameter: 71.38 mm
• Brake pilot diameter: 72.41 mm
• Hub pilot diameter: 84.92 mm
• Flange diameter: 161.73 mm
• Bolt circle diameter: 127.36 mm
• Flange offset: 48.6 mm

OE-Style Fit and Construction

This wheel bearing and hub assembly is manufactured with high-precision processes and strict quality-control standards to match the designated application. InMotion WA515173 is built for the front position on Chrysler Pacifica models from 2017 through 2020, using OE-based measurements to support proper wheel mounting, brake alignment, and ABS system function. If you are replacing a worn front hub on a Chrysler Pacifica, WA515173 provides the dimensional accuracy needed for a direct-fit repair.

Common Problems This Part Can Address

• Front wheel bearing noise or growling
• Excessive wheel play or looseness
• ABS warning light caused by hub sensor issues
• Uneven wheel mounting or vibration at the hub
• Front-end service needs on a Chrysler Pacifica

Installation Notes

Confirm the vehicle is a 2017-2020 Chrysler Pacifica with front-position fitment before installation. Verify spline count, bolt pattern, and sensor connection against the original hub assembly, and inspect related components such as the axle nut, brake hardware, and knuckle mounting surfaces during service. Proper torque procedures are important for hub life and ABS performance.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and controlled production standards to support fitment, performance, and durability. Part number WA515173 is built as a direct replacement for the specified Chrysler Pacifica front application.
