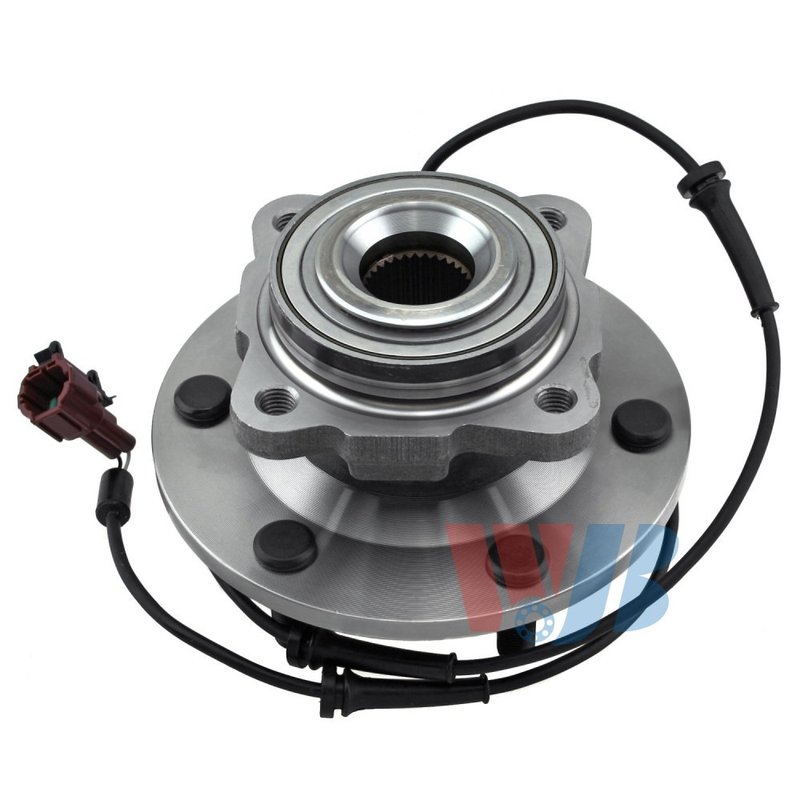

InMotion WA541004 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Nissan and INFINITI

The InMotion WA541004 is a rear wheel bearing and hub assembly built for direct replacement on select Nissan and INFINITI applications. It is engineered from OE data and measurements to support proper fitment, wheel mounting, and long service life on vehicles such as the Nissan Armada and INFINITI QX56.

With a 32-spline design, 6 wheel studs, and an integrated ABS sensor, this rear hub assembly is built to match the original configuration for standard-grade applications. The modified flange shape, 114.3 bolt circle, and 171.0 flange diameter help ensure correct wheel and brake interface alignment.

Key Features

• Part number WA541004 rear wheel bearing and hub assembly
• Direct replacement design for select rear applications
• Integrated anti-lock brake sensor included
• 32 spline quantity with 6 wheel studs
• 4 flange bolt holes and modified flange shape
• OE-based dimensions for fitment accuracy and durability
• Compatible with 2005-2012 Nissan Armada, rear
• Compatible with 2004-2010 INFINITI QX56, rear

Detailed Description

InMotion WA541004 is manufactured using high-precision processes and strict quality-control standards to deliver a rear hub assembly that matches the original part’s application requirements. Key dimensions include a 77.7 wheel pilot diameter, 82.0 brake pilot diameter, 89.0 hub pilot diameter, 56.3 flange offset, and 171.0 flange diameter. The assembly also uses a 114.3 bolt circle, listed as 5.5, for the designated wheel pattern.

This rear wheel bearing hub assembly is a practical OE-style replacement for drivers searching for a rear hub assembly for Nissan Armada, rear or an INFINITI QX56 rear wheel bearing and hub assembly. The WA541004 is also listed for 2004 Nissan Pathfinder, rear and 2004 Nissan Pathfinder Armada, rear in standard grade configurations.

Common Problems This Part May Address

• Rear wheel bearing noise or rough rotation
• ABS warning light caused by a failed hub sensor
• Wheel looseness from worn hub components
• Uneven wheel mounting due to damaged hub surfaces
• Vibration or play from a deteriorated rear hub assembly

Installation Notes and Tips

Confirm rear fitment by matching the vehicle year, make, model, and standard grade configuration before installation. Verify spline count, bolt circle, flange dimensions, and ABS sensor connection against the original part. Clean the mounting surface thoroughly and inspect related brake and suspension components during replacement.

For best results, compare the existing hub assembly to WA541004 before installation and follow the vehicle service manual for torque specifications and ABS system procedures.

Quality Assurance

InMotion manufactures this hub assembly with OE data and measurements and applies strict quality-control criteria during production. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
