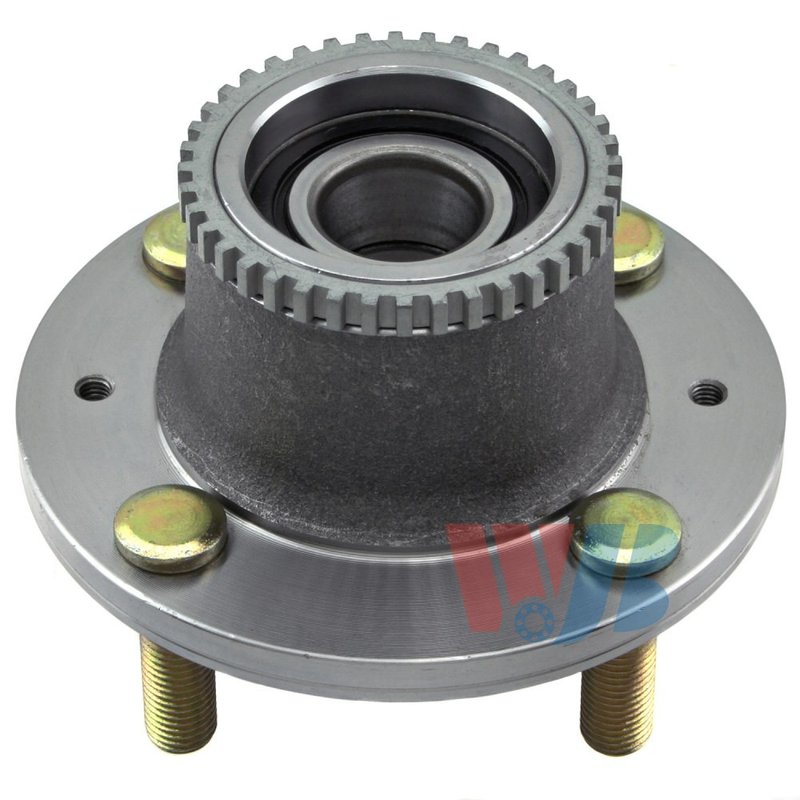

InMotion WA541009 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Hub Assembly for Aveo, G3, and Swift+

InMotion WA541009 is a rear wheel bearing and hub assembly built for direct replacement on select Chevrolet, Pontiac, and Suzuki compact cars. It combines OE-based dimensions with an integrated ABS sensor to support accurate wheel-speed signal output and proper hub fitment.

Key Features

• Rear wheel bearing and hub assembly for select applications
• Integrated anti-lock brake sensor included
• 4-wheel stud design
• OE-data-based dimensions for fitment and performance
• Precision-manufactured to strict quality-control criteria
• Wheel pilot diameter: 56.5 mm
• Brake pilot diameter: 57.0 mm
• Hub pilot diameter: 58.0 mm
• Flange diameter: 125.5 mm
• Flange offset: 48.0 mm
• Bolt circle diameter: 100.0 mm

Detailed Description

InMotion WA541009 is engineered as a direct replacement wheel hub assembly for rear applications on 2004-2011 Chevrolet Aveo, 2007-2011 Chevrolet Aveo5, 2009-2010 Pontiac G3, and 2008-2009 Suzuki Swift+. The assembly is manufactured using OE measurements and application-specific data to help ensure correct mounting, stable wheel support, and consistent brake and sensor interface dimensions. This part number, WA541009, is a practical choice when replacing a worn rear hub on a Chevrolet Aveo or Aveo5, Pontiac G3, or Suzuki Swift+.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Vehicle Fitment

• Fits 2004-2011 Chevrolet Aveo, rear, Standard Grade
• Fits 2007-2011 Chevrolet Aveo5, rear, Standard Grade
• Fits 2009-2010 Pontiac G3, rear, Standard Grade
• Fits 2008-2009 Suzuki Swift+, rear, Standard Grade

Common Replacement Reasons

• Rear wheel bearing noise or roughness
• ABS warning light caused by hub sensor issues
• Wheel play from a worn hub assembly
• Uneven brake rotor contact from hub wear
• Incorrect wheel mounting due to damaged stud or pilot dimensions

Installation Notes

Confirm rear position, bolt circle diameter, stud count, and pilot dimensions before installation. Verify ABS sensor connection and wheel-speed signal operation after mounting. Compare the existing hub flange offset and pilot measurements to the original part to ensure proper alignment. Professional installation is recommended for vehicles with integrated ABS components.

Quality Assurance

InMotion manufactures this hub assembly with high-precision processes and strict quality-control standards. OE-based engineering is used to support proper fitment, performance, and service life across the listed applications.
