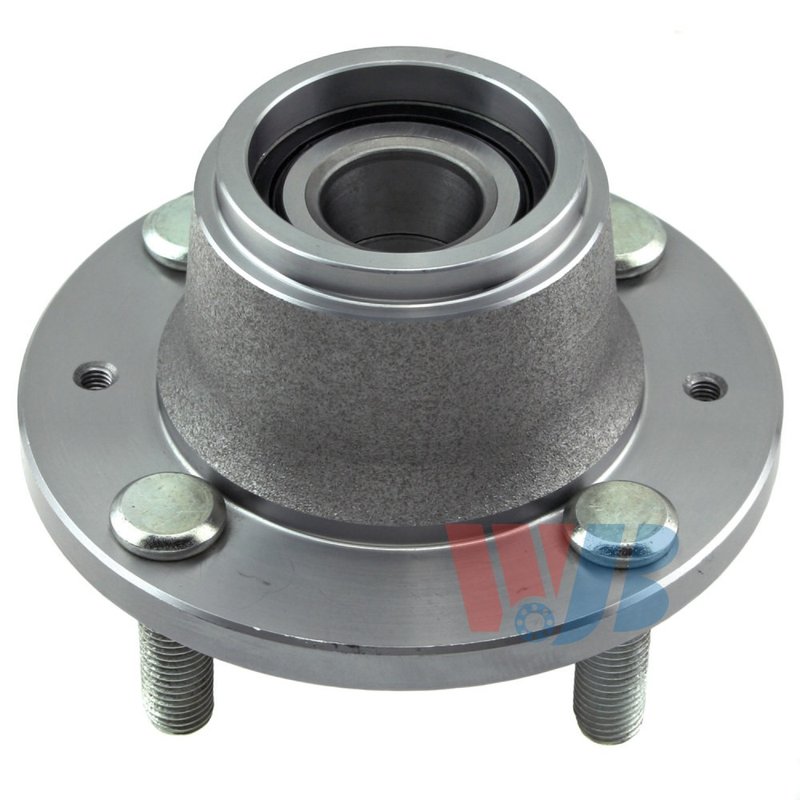

InMotion WA541010 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Hub Assembly for Select GM and Suzuki Models

InMotion WA541010 is a rear wheel bearing and hub assembly built for direct replacement service on select Chevrolet, Pontiac, and Suzuki applications. It is engineered from OE data and measurements to match the original fit, performance, and service life expectations for the designated vehicles.

Compatible with rear applications on 2013-2015 Chevrolet Spark, 2004-2011 Chevrolet Aveo, 2007-2011 Chevrolet Aveo5, 2009-2010 Pontiac G3, and 2004-2007 Suzuki Swift+.

Key Features

• Part number WA541010 wheel bearing and hub assembly
• Rear hub assembly for 4-wheel-stud applications
• Wheel pilot diameter: 56.5 mm
• Brake pilot diameter: 57.0 mm
• Hub pilot diameter: 58.0 mm
• Bolt circle diameter: 100.0 mm
• Flange diameter: 125.5 mm
• Flange offset: 48.0 mm
• Anti-lock brake sensor not included

Detailed Description

This InMotion hub assembly is manufactured with precision machining and quality-control standards intended to match OE fitment requirements. The WA541010 uses application-specific dimensions to support proper wheel mounting, brake alignment, and hub location on the rear axle of the listed Chevrolet Spark, Chevrolet Aveo, Chevrolet Aveo5, Pontiac G3, and Suzuki Swift+ models. For buyers searching for a rear wheel bearing hub assembly for 2004-2011 Chevrolet Aveo or a rear hub assembly for 2013-2015 Chevrolet Spark, this part number provides a direct replacement option built around factory measurements.

The assembly is designed around a 4-stud, 100.0 mm bolt circle layout and does not include an ABS sensor. This makes WA541010 a practical OE-style replacement when the original rear hub shows wear, noise, or mounting issues. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Fix

• Rear wheel bearing noise or rough rotation
• Excessive hub play or looseness at the wheel
• Vibration or instability from a worn rear hub assembly
• Improper wheel mounting caused by damaged hub pilot surfaces
• Brake and wheel alignment concerns related to hub wear

Installation Notes and Tips

Confirm rear position, stud count, bolt circle diameter, and pilot dimensions before installation. Compare the original hub assembly to WA541010 to verify flange offset, flange diameter, and brake pilot diameter match the vehicle’s rear suspension and brake setup. Because the ABS sensor is not included, reuse or transfer the existing sensor arrangement only if the vehicle configuration requires it and the original components are serviceable.

Professional installation is recommended. Clean the mounting surfaces, inspect the knuckle and brake components for wear, and torque fasteners to the vehicle manufacturer’s specifications during reassembly.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and strict quality-control criteria to support consistent fitment and long-term service. WA541010 is built as a direct replacement for the listed rear applications.
