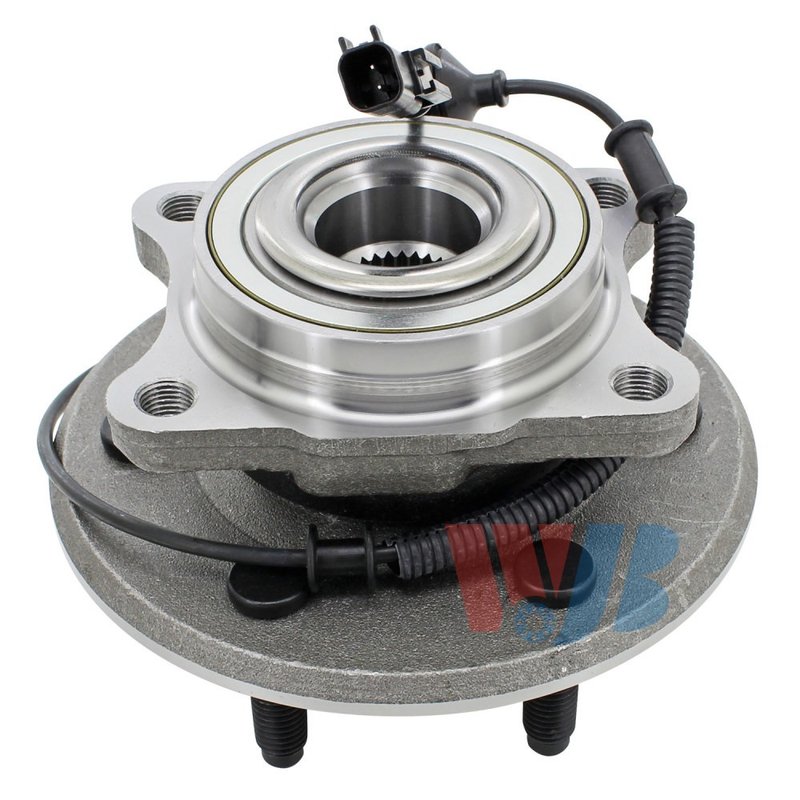

InMotion WA541013 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Hub Assembly for Ford Expedition and Lincoln Navigator

InMotion WA541013 is a rear wheel bearing and hub assembly built for 2011-2014 Ford Expedition and 2011-2014 Lincoln Navigator applications. It is engineered from OE data and measurements for direct replacement fitment, with the hub, bearing, and ABS sensor integrated into one service part.

Key Features

• Direct replacement rear hub assembly for Ford Expedition and Lincoln Navigator
• Part number WA541013 for application matching and catalog lookup
• 33-spline design with 6 wheel studs
• ABS sensor included
• 4 flange bolt holes with modified flange shape
• Wheel pilot diameter: 86.8 mm
• Brake pilot diameter: 90.0 mm
• Hub pilot diameter: 99.3 mm
• Bolt circle diameter: 135.0 mm (5.323 in)
• Flange diameter: 183.1 mm with 55.5 mm flange offset

Detailed Description

InMotion WA541013 is a rear wheel bearing and hub assembly manufactured with strict quality-control criteria and high-precision production methods. It is designed for 2011-2014 Ford Expedition rear and 2011-2014 Lincoln Navigator rear applications, using OE measurements to support proper fitment, performance, and service life. This assembly is a practical replacement choice when servicing a worn rear hub on a Ford Expedition or Lincoln Navigator, and the included ABS sensor helps maintain the original sensor-equipped configuration.

This part cross-references Monroe Shocks & Struts (e.g., HUB403) for the same application.

What It Helps Address

• Rear wheel bearing noise or growling from the hub area
• Wheel looseness or play caused by hub wear
• ABS warning light concerns related to a failed hub sensor assembly
• Uneven wheel rotation or rough rear hub operation
• Service replacement needs on 2011-2014 Ford Expedition and Lincoln Navigator rear hubs

Installation Notes and Tips

Confirm rear position, spline count, bolt circle, and pilot diameters before installation. Inspect the mating surfaces, axle interface, and ABS wiring condition during service. Torque all fasteners to the vehicle manufacturer’s specifications and verify proper ABS operation after installation. For best results, compare the removed unit to WA541013 before assembly.

Quality Assurance

InMotion manufactures this hub assembly using OE-based dimensions and controlled production standards to support consistent fitment and durability. WA541013 is built as a direct replacement part for the listed rear applications.
