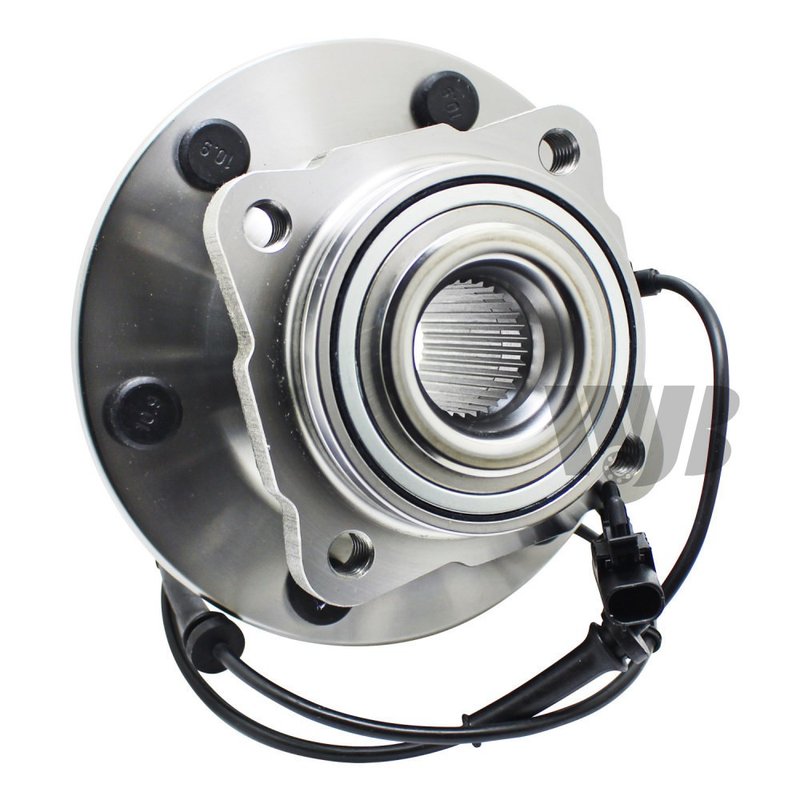

InMotion WA541014 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Hub Assembly for Nissan Armada

InMotion WA541014 is a rear wheel bearing and hub assembly built for 2012-2015 Nissan Armada Standard Grade applications. It is engineered from OE data and measurements for direct replacement fitment, with the hub, bearing, and ABS sensor integration matched to the original application.

• Fits 2012-2015 Nissan Armada, rear, Standard Grade
• 32-spline hub design
• 6 wheel studs with 4 flange bolt holes
• ABS sensor included
• Bolt circle diameter: 139.7 mm
• Hub pilot diameter: 89.0 mm
• Wheel pilot diameter: 77.6 mm
• Brake pilot diameter: 81.9 mm
• Flange diameter: 171.0 mm
• Flange offset: 56.2 mm

Built to OE Dimensions

This InMotion wheel bearing and hub assembly, part number WA541014, is manufactured with precision processes and quality-control standards aimed at consistent fitment and long service life. The rear hub assembly is specified for the Nissan Armada and uses OE-based measurements to align with the original mounting, pilot, and stud dimensions. If you are replacing a worn rear hub on a 2012-2015 Nissan Armada, WA541014 provides the correct geometry for the listed Standard Grade application.

Common Problems This Part Can Address

• Rear wheel bearing noise or growling
• Excessive wheel play or looseness at the hub
• ABS warning light caused by a failed hub sensor
• Uneven wheel mounting due to worn hub surfaces
• Vibration or instability from hub wear

Installation Notes

Confirm rear axle and trim details before ordering, since this part is listed for the Standard Grade Nissan Armada application only. Inspect the mating surfaces, axle splines, and fasteners during replacement, and verify ABS connector routing before final assembly. Part number WA541014 should be matched to the vehicle’s year, model, and rear position before installation.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and strict quality-control criteria to support proper fit and dependable operation. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
