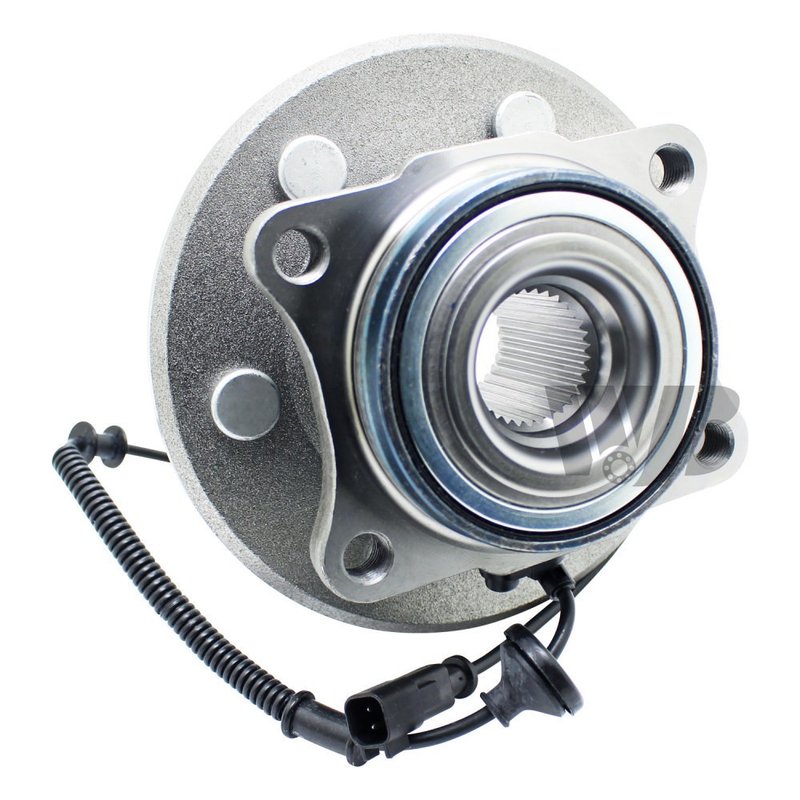

InMotion WA541015 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Hub Assembly for Expedition and Navigator

The InMotion WA541015 wheel bearing and hub assembly is built for rear applications on select Ford and Lincoln SUVs. It is engineered from OE data and measurements for direct replacement fitment, with the hub, bearing, and ABS sensor integrated into one service part.

• Rear wheel bearing and hub assembly for 2015-2017 Ford Expedition and 2015-2017 Lincoln Navigator
• 33-spline design with 6 wheel studs
• ABS sensor included
• 4 flange bolt holes for mounting
• Hub pilot diameter: 99.3 mm
• Wheel pilot diameter: 86.8 mm
• Brake pilot diameter: 90.0 mm
• Bolt circle diameter: 135.1 mm
• Flange diameter: 183.1 mm
• Flange offset: 55.5 mm

OE-Style Fitment and Construction

InMotion manufactures this hub assembly with high-precision processes and strict quality-control standards to match the original rear hub dimensions and mounting points. The WA541015 is a direct replacement for the factory part on rear 2015-2017 Ford Expedition and rear 2015-2017 Lincoln Navigator Standard Grade applications. This part cross-references Monroe Shocks & Struts (e.g., HUB405) for the same application.

Common Problems This Part Can Address

• Rear wheel bearing noise or growling from the hub area
• ABS warning light caused by a failed hub-mounted sensor
• Wheel looseness or play at the rear axle
• Uneven hub wear from a damaged bearing assembly
• Vibration or rough rotation at the rear wheel end

Installation Notes

Confirm rear fitment by year, make, model, and Standard Grade application before installation. Inspect the axle splines, mounting surface, and brake components for wear or damage during service. Torque all fasteners to the vehicle manufacturer’s specifications and verify ABS operation after installation.

Quality Assurance

InMotion builds this hub assembly using OE data and dimensional measurements to support proper fit, performance, and service life. The WA541015 is manufactured under strict quality-control criteria for rear wheel hub replacement on the specified Ford Expedition and Lincoln Navigator applications.
