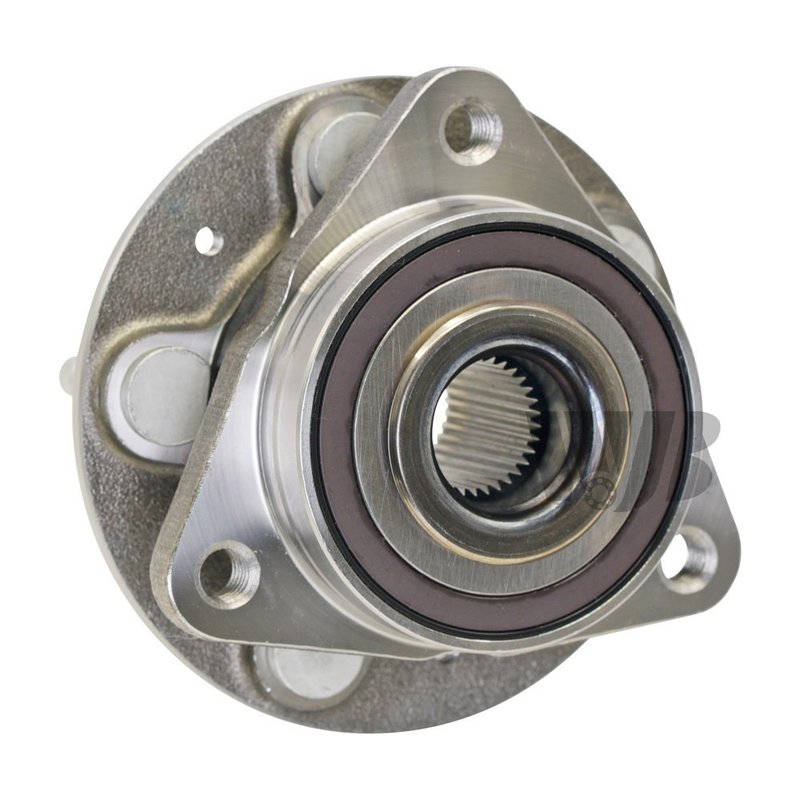

InMotion WA590668 Wheel Bearing and Hub Assembly - Front
Front Wheel Bearing Hub Assembly for Cruze
Restore smooth front-wheel operation with this InMotion wheel bearing and hub assembly, part number WA590668. Built as a new, direct replacement hub assembly, it is engineered from OE data and measurements for accurate fitment on the front of select Chevrolet Cruze models.
- Part number: WA590668
- Brand: InMotion
- Part type: Wheel bearing and hub assembly
- Position: Front
- Driven hub design with 33 splines
- Ball bearing type
- No ABS sensor included
- 5 flange bolts and 5 lug bolts
- 3 mounting bolts to knuckle
- Flange bolt thread size: M12-1.5
- Lug bolt thread size: M12-1.75
- Hub pilot diameter: 60 mm
- Hub centerbore diameter: 105 mm
Fitment Details
Compatible with 2016-2019 Chevrolet Cruze, front. This application note also references replacement by WA513445 for the listed Cruze fitment. If you are searching for a Chevrolet Cruze front wheel bearing hub assembly WA590668, verify the vehicle’s driven front hub configuration before ordering.
What This Hub Assembly Helps Address
- Front wheel bearing noise such as humming or growling
- Excessive wheel play or looseness at the hub
- Vibration or rough rotation from a worn hub assembly
- Damaged flange or mounting surfaces at the front knuckle
- Incorrect wheel hub fitment after prior repair work
Installation Notes
Confirm the vehicle uses the driven front hub configuration with 33 splines, M12-1.75 lug bolts, and no ABS sensor included before installation. Match the flange bolt thread size, hub pilot diameter, and centerbore dimensions to the original part for proper seating and alignment. Professional installation and final torque verification are recommended for a front wheel bearing and hub assembly replacement on Chevrolet Cruze models.
Quality Assurance
InMotion manufactures this hub assembly using high-precision processes and strict quality-control criteria. Each unit is built for the specified application using OE data and measurements to support proper fit, performance, and service life. Cross-reference part numbers for the same application include Timken HA590668 and MOOG 513445.
| Brand | InMotion |
| Part Number | WA590668 |
| Spline Quantity | 33 |
| Hub Pilot Diameter | 2.36 |
| Hub Pilot Diameter | 60 |
| Anti Lock Brake Sensor Included | No |
| Bearing Type | Ball |
| Flange Offset | 1.65 |
| Flange Offset | 42 |
| Flange Diameter | 136 |
| Flange Diameter | 5.35 |
| Driven Or Non-driven | Driven |
| Flange Bolt Size (in) | 0.47 |
| Flange Bolt Size (mm) | 12 |
| Flange Bolt Thread Size | M12-1.5 |
| Hub Centerbore Diameter (in) | 4.13 |
| Hub Centerbore Diameter (mm) | 105 |
| Lug Bolt Thread Size | M12-1.75 |
| New Or Remanufactured | New |
| Number Of Flange Bolts Included | 5 |
| Number Of Lug Bolts Included | 5 |
| Number Of Mounting Bolts To Knuckle | 3 |
| Total Hub Diameter (in) | 5.35 |
| Total Hub Diameter (mm) | 136 |
| Total Hub Height (in) | 4.13 |
| Total Hub Height (mm) | 105 |
| Wiring Harness Included | No |
This part fits 4 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2019 | Chevrolet | Cruze | Front | Replaced by WA513445 |
| 2018 | Chevrolet | Cruze | Front | Replaced by WA513445 |
| 2017 | Chevrolet | Cruze | Front | Replaced by WA513445 |
| 2016 | Chevrolet | Cruze | Front | Replaced by WA513445 |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
