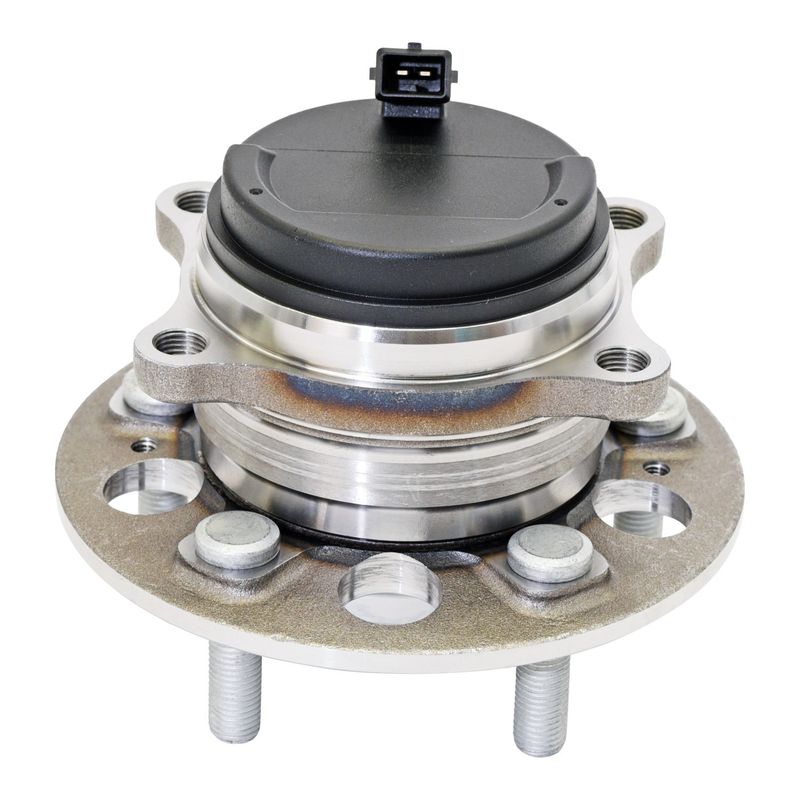

InMotion WA590771 Wheel Bearing and Hub Assembly - Front

Front Wheel Bearing Hub Assembly for Genesis G70 and Kia Stinger

InMotion WA590771 is a new front wheel bearing and hub assembly built for direct replacement on select Genesis G70 and Kia Stinger applications. It uses OE data and measurements for fitment, with a ball bearing design, integrated ABS sensor, and a magnetic encoder ring for accurate wheel speed signal transfer.

Key Features

• Direct replacement front hub assembly for non-driven applications
• Integrated ABS sensor included
• Ball bearing construction for smooth wheel rotation
• Magnetic encoder ring with 104 teeth
• OE-based dimensions for proper fitment and alignment
• New unit manufactured under strict quality-control criteria
• Part number WA590771 for catalog and service reference

Detailed Product Overview

WA590771 is engineered as a front wheel bearing and hub assembly for 2019-2022 Genesis G70, front, standard grade, and 2018-2022 Kia Stinger, front, standard grade. The hub is designed with a 6.07 in. total diameter, 5.37 in. total height, 2.71 in. hub pilot diameter, and 4.5 in. hub centerbore diameter to match the specified OE application. It also features a 154.1 mm flange diameter, 53.4 mm flange offset, M12-1.5 flange bolt thread size, and M12-1.25 lug bolt thread size. InMotion WA590771 is built for vehicles that require a front non-driven hub assembly with ABS integration and precise sensor-ring geometry.

This part cross-references 51750J5000 and HA590771 for the same application.

What This Part Helps Address

• Wheel bearing noise from a worn front hub assembly
• ABS warning lights caused by a failing sensor or encoder ring
• Front-end vibration related to hub wear or looseness
• Uneven wheel rotation from bearing degradation
• Fitment issues when replacing an OE-style front hub on Genesis G70 or Kia Stinger

Installation Notes and Tips

Confirm the vehicle is a front, non-driven application before installation. Verify flange bolt thread size, lug bolt thread size, and sensor connector style against the original part before removal. Because this assembly includes an ABS sensor and magnetic encoder ring, handle the sensor area carefully during installation to avoid contamination or impact damage. Always compare the original hub dimensions and mounting pattern to the replacement part before final assembly.

Quality Assurance

InMotion manufactures this hub assembly using high-precision processes and strict quality-control criteria. Each unit is engineered from OE data and measurements to support proper fitment, performance, and service life in the specified Genesis G70 and Kia Stinger front applications.
