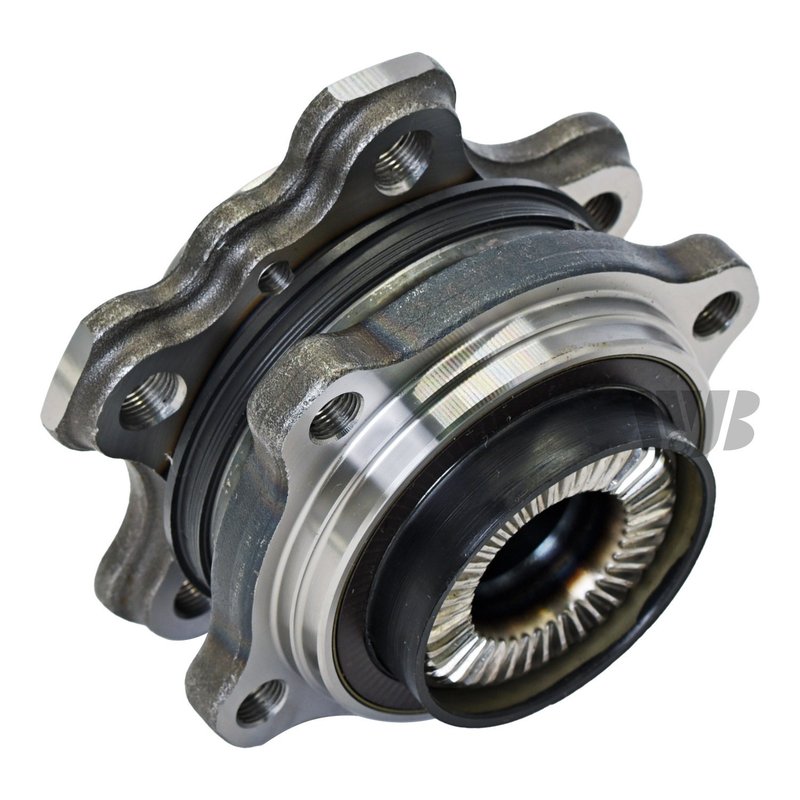

InMotion WA590782 Wheel Bearing and Hub Assembly

BMW X5/X6 Wheel Hub Assembly

InMotion WA590782 is a new wheel bearing and hub assembly built for driven applications with OE-based dimensions and application-specific fitment. It is engineered for 2019-2021 BMW X5 and 2019-2021 BMW X6 models, making it a direct replacement option for drivers searching for a BMW X5 wheel hub assembly or BMW X6 wheel bearing hub assembly.

• Part number: WA590782
• Driven wheel hub assembly with 37 splines
• Ball bearing design for hub support and rotation
• 5-bolt flange with M14-1.25 thread size
• 4-bolt knuckle mounting pattern
• Hub pilot diameter: 66.9 mm (2.63 in)
• Flange diameter: 140 mm (5.51 in)
• Flange offset: 51.3 mm (2.02 in)
• Hub centerbore diameter: 112 mm (4.41 in)
• Lug bolt thread size: M12-1.25
• ABS sensor not included
• Wiring harness not included

OE-Based Replacement Design

WA590782 is manufactured using OE data and measurements to match the original hub assembly dimensions for the listed BMW applications. InMotion builds this wheel bearing and hub assembly with strict quality-control criteria and precision manufacturing to support proper fitment, smooth wheel rotation, and long service life. For shoppers comparing BMW X5 hub assembly replacement parts or BMW X6 wheel bearing hub assembly options, this part number WA590782 provides the key dimensions needed for a direct-fit repair.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What This Part Helps Address

• Wheel bearing noise from a worn hub assembly
• Excessive wheel play or looseness at the hub
• Vibration or rough rotation from bearing wear
• Improper hub fitment after suspension or driveline service
• Replacement needs on driven BMW X5 and BMW X6 models

Installation Notes

Confirm spline count, flange bolt pattern, hub pilot diameter, and lug thread size before installation. This driven hub assembly does not include an ABS sensor or wiring harness, so reuse or source those components as required by the vehicle configuration. Verify the mounting surface, knuckle bolt pattern, and axle interface on the vehicle before final assembly.

Quality Assurance

InMotion manufactures this hub assembly under strict quality-control criteria and to OE-based measurements for the listed BMW fitments. The result is a new replacement part designed around the original application dimensions for 2019-2021 BMW X5 and 2019-2021 BMW X6 service work.
