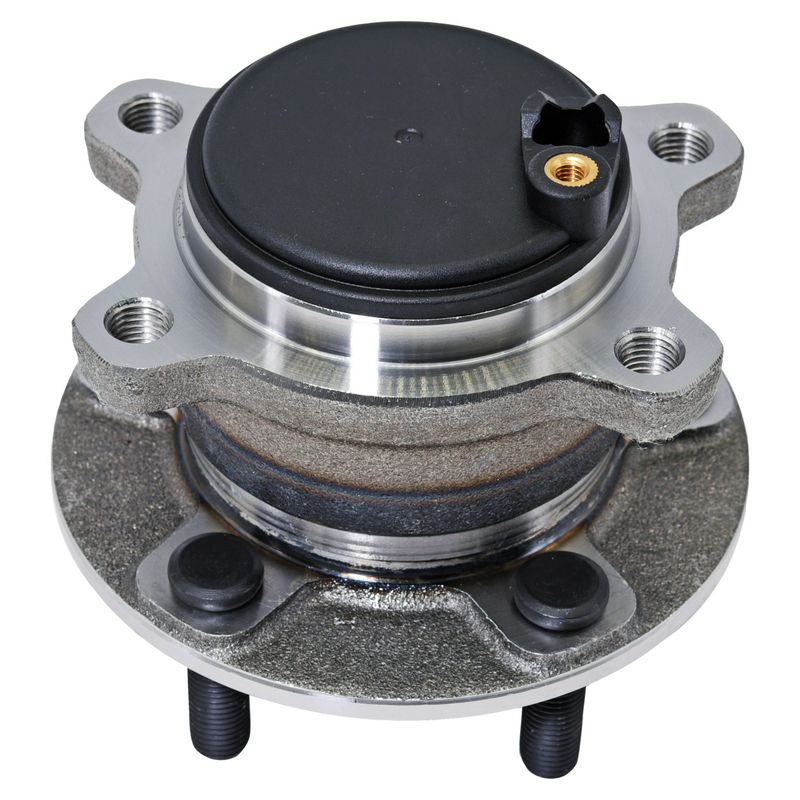

InMotion WA590878 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Escape and Corsair

InMotion WA590878 is a rear wheel bearing and hub assembly built for 2020-2023 Ford Escape and 2020-2023 Lincoln Corsair Standard Grade applications. It is engineered from OE data for direct replacement fitment, with integrated ABS sensing and precision manufacturing for consistent wheel support and sensor performance.

Key Features

• Direct replacement rear wheel bearing and hub assembly
• Fits 2020-2023 Ford Escape, rear, Standard Grade
• Fits 2020-2023 Lincoln Corsair, rear, Standard Grade
• Integrated ABS sensor with magnetic encoder ring
• Ball and roller bearing design
• Non-driven hub assembly for rear axle applications
• GCr15 bearing material for durability
• 5-bolt flange and 5 lug bolt interface
• OE-based dimensions for fitment accuracy

Detailed Description

Built for rear suspension service, InMotion WA590878 is a new wheel hub assembly designed to match the original application using OE measurements and data. The unit features a round flange, 81.4 mm hub pilot diameter, 135.8 mm total hub diameter, and 113 mm total hub height. It also includes a magnetic encoder ABS ring with 88 teeth and a single male terminal ABS sensor connection for vehicles equipped with rear wheel speed sensing. This part cross-references Monroe Shocks & Struts (e.g., HUB463) for the same application.

What It Helps Address

• Wheel bearing noise from a worn rear hub assembly
• ABS warning lights related to hub-mounted wheel speed sensing
• Rear wheel looseness or play caused by bearing wear
• Uneven wheel rotation from a damaged hub bearing surface
• Fitment issues when replacing a failed OE rear hub on Escape or Corsair

Installation Notes and Tips

Confirm rear application, flange bolt pattern, and ABS connector style before installation. This assembly uses M12-1.5 flange and lug bolt thread sizing, with no gasket or seal included and no wiring harness included. Verify hub centerbore, flange offset, and sensor ring orientation against the original part before final assembly.

Quality Assurance

InMotion manufactures this hub assembly with strict quality-control standards and state-of-the-art production methods. Each unit is built as a new OE-style replacement using application-specific measurements to support proper fit, performance, and service life.
