Home› Driveline and Axles > Hubs and Related Components› InMotion WACK4Z1109D Wheel Bearing and Hub Assembly - Rear
InMotion WACK4Z1109D Wheel Bearing and Hub Assembly - RearOE Quality 60-Day Returns

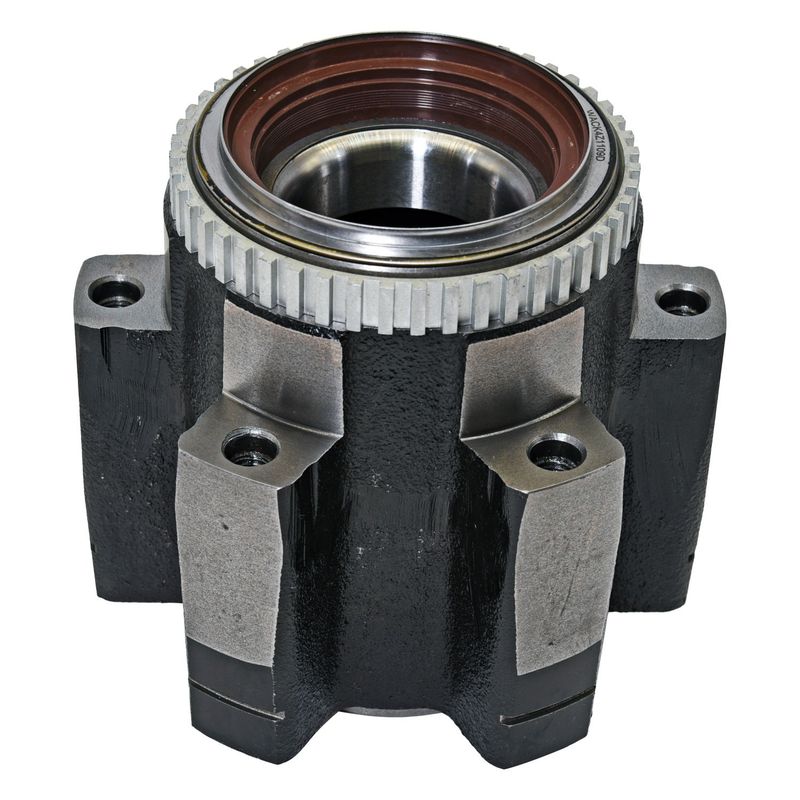

InMotion WACK4Z1109D Wheel Bearing and Hub Assembly - Rear - view 1
InMotion WACK4Z1109D Wheel Bearing and Hub Assembly - Rear - view 2
InMotion WACK4Z1109D Wheel Bearing and Hub Assembly - Rear - view 3
InMotion WACK4Z1109D Wheel Bearing and Hub Assembly - Rear - view 4
InMotion WACK4Z1109D Wheel Bearing and Hub Assembly - Rear - view 5
Part #: WACK4Z1109D

InMotion WACK4Z1109D Wheel Bearing and Hub Assembly - Rear

Rear
⚙️ 36 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$167.13Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🚗Fitment: Ford, Transit-150, Transit-250, Transit-350, and Transit-350 HD
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Wheel Bearing and Hub Assembly options
InMotion WACK4Z1109D Wheel Bearing and Hub Assembly - Rear
BrandInMotion
Part NumberWACK4Z1109D
Hub Pilot Diameter122
Hub Pilot Diameter4.8
Flange ShapeModified
Bearing TypeTapered | roller
Flange Offset107.8
Flange Offset4.24
Flange Diameter170
Flange Diameter6.69
Abs Sensor IncludedNo
Abs Sensor Ring Diameter (in)4.6500000000000004
Abs Sensor Ring Diameter (mm)118.1
Driven Or Non-drivenNon-driven
Flange Bolt Thread SizeM12-1.75
Gasket Or Seal IncludedYes
GreaseableYes
Hub Centerbore Diameter (in)5.83
Hub Centerbore Diameter (mm)148
Lug Bolt Thread SizeM12-1.75
MaterialCast iron
New Or RemanufacturedNew
Number Of Abs Sensor Ring Teeth48
Number Of Flange Bolts Included0
Number Of Lug Bolts Included0
Number Of Mounting Bolts To Knuckle5
Number Of Terminals1
Terminal GenderMale
Total Hub Diameter (in)6.69
Total Hub Diameter (mm)170
Total Hub Height (in)6.1
Total Hub Height (mm)155

This part fits 36 vehicles. Search below:

YearMakeModelPositionNotes
2023FordTransit-150RearDual Rear Wheels
2023FordTransit-250RearDual Rear Wheels
2023FordTransit-350RearDual Rear Wheels
2023FordTransit-350 HDRearDual Rear Wheels
2022FordTransit-150RearDual Rear Wheels
2022FordTransit-250RearDual Rear Wheels
2022FordTransit-350RearDual Rear Wheels
2022FordTransit-350 HDRearDual Rear Wheels
2021FordTransit-150RearDual Rear Wheels
2021FordTransit-250RearDual Rear Wheels
2021FordTransit-350RearDual Rear Wheels
2021FordTransit-350 HDRearDual Rear Wheels
2020FordTransit-150RearDual Rear Wheels
2020FordTransit-250RearDual Rear Wheels
2020FordTransit-350RearDual Rear Wheels
2020FordTransit-350 HDRearDual Rear Wheels
2019FordTransit-150RearDual Rear Wheels
2019FordTransit-250RearDual Rear Wheels
2019FordTransit-350RearDual Rear Wheels
2019FordTransit-350 HDRearDual Rear Wheels
2018FordTransit-150RearDual Rear Wheels
2018FordTransit-250RearDual Rear Wheels
2018FordTransit-350RearDual Rear Wheels
2018FordTransit-350 HDRearDual Rear Wheels
2017FordTransit-150RearDual Rear Wheels
2017FordTransit-250RearDual Rear Wheels
2017FordTransit-350RearDual Rear Wheels
2017FordTransit-350 HDRearDual Rear Wheels
2016FordTransit-150RearDual Rear Wheels
2016FordTransit-250RearDual Rear Wheels
2016FordTransit-350RearDual Rear Wheels
2016FordTransit-350 HDRearDual Rear Wheels
2015FordTransit-150RearDual Rear Wheels
2015FordTransit-250RearDual Rear Wheels
2015FordTransit-350RearDual Rear Wheels
2015FordTransit-350 HDRearDual Rear Wheels

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

HUB351

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
