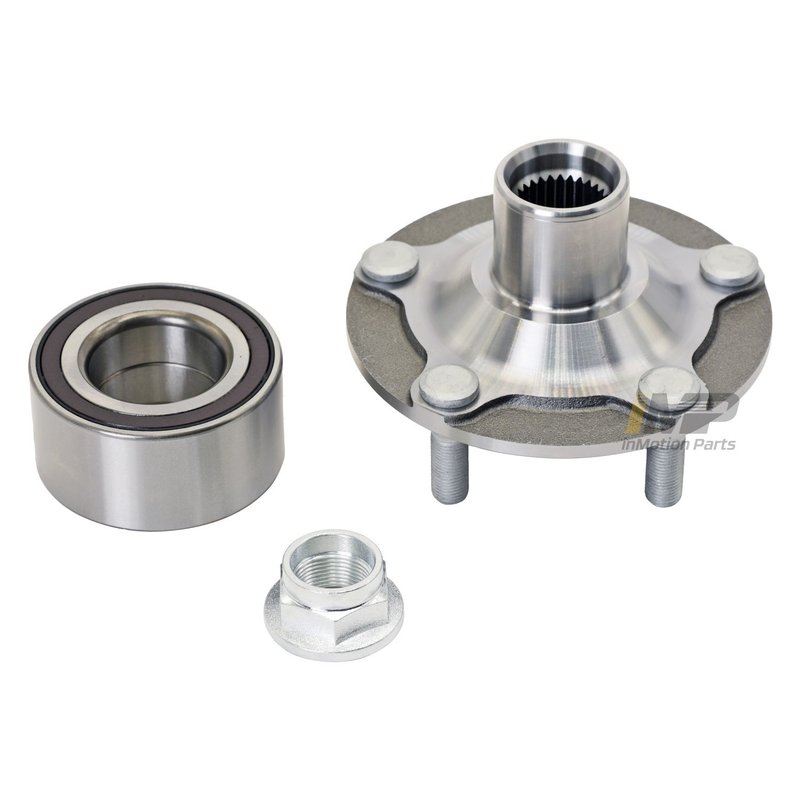

InMotion WAD0202-6LA0JNW Wheel Bearing and Hub Assembly Repair Kit - Front
| Brand | InMotion WAD0202-6LA0JNW |
|---|---|
| Position | Front |
| Spline Quantity | 29 |
| Flange Shape | Round |
| Bearing Type | Ball | roller |
| Flange Offset | 2.27 |
| Flange Offset | 57.7 |
| Flange Diameter | 136 |
| Flange Diameter | 5.35 |
| Abs Connector Shape | Cover |
| Abs Ring Type | Magnetic encoder |
| Abs Sensor Included | Yes |
| Abs Sensor Ring Diameter (in) | 2.8 |
| Abs Sensor Ring Diameter (mm) | 71 |
| Driven Or Non-driven | Driven |
| Flange Bolt Size (in) | M12x1.25 |
| Flange Bolt Size (mm) | 33 |
| Flange Bolt Thread Size | M12-1.25 |
| Gasket Or Seal Included | No |
| Greaseable | No |
| Lug Bolt Thread Size | M12-1.25 |
| New Or Remanufactured | New |
| Number Of Abs Sensor Ring Teeth | 96 |
| Number Of Flange Bolts Included | 0 |
| Number Of Lug Bolts Included | 5 |
| Number Of Mounting Bolts To Knuckle | 0 |
| Terminal Gender | Male |
| Total Hub Diameter (in) | 5.35 |
| Total Hub Diameter (mm) | 136 |
| Total Hub Height (in) | 3.52 |
| Total Hub Height (mm) | 89.5 |
| Wiring Harness Included | No |
| Fits | Nissan · 9 vehicles |
OE-based fitment. Engineered from original measurements for direct replacement use.
Integrated ABS sensing. Includes a magnetic encoder and ABS sensor for wheel-speed signal support.
New hub assembly. Built with ball and roller bearing construction for service replacement.
Cross-references 502026 and D0202-6LA0JNW for the same application. See all 2.
Wheel Bearing Hub Repair Kit
InMotion WAD0202-6LA0JNW is a new wheel bearing and hub assembly repair kit built for driven front applications. It is engineered from OE data and measurements for direct replacement fitment on select Nissan models, with integrated ABS sensing features for modern wheel-speed monitoring.
Key Features
- New wheel hub assembly repair kit with OE-based dimensions and application-specific fitment.
- Ball and roller bearing construction for the hub assembly.
- Magnetic encoder ABS ring with included ABS sensor.
- Round flange design with M12-1.25 thread specification.
- Driven application with 29 splines and 96 encoder teeth.
- Includes five lug bolts; no wiring harness included.
Detailed Description
This InMotion hub assembly repair kit is manufactured with strict quality-control criteria and built for direct replacement use where the original hub assembly is worn or damaged. The WAD0202-6LA0JNW uses OE data and measurements to match the intended application, helping maintain proper hub fit, bearing support, and ABS signal function. It is a fitment-focused solution for Nissan Kicks and Nissan Sentra front applications, including 2021-2024 Nissan Kicks, front and 2020-2024 Nissan Sentra, front.
This part cross-references D0202-6LA0JNW and 502026 for the same application.
Common Uses
- Restoring wheel-end smoothness when the hub bearing is noisy or rough.
- Replacing a hub assembly with ABS-related sensor or encoder wear.
- Addressing looseness or play at the wheel hub.
- Correcting fitment issues on driven front hub applications.
Installation Notes
Verify flange bolt thread size, spline count, ABS connector style, and sensor ring dimensions before installation. This assembly is intended for front driven applications and uses a magnetic encoder with an included ABS sensor. Confirm vehicle application details against the original part before service.
Quality Assurance
InMotion manufactures this hub assembly using high-precision processes and strict quality-control standards. The part is engineered from OE data and measurements to support proper fitment, performance, and service life.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2024 | Nissan | Kicks | — | Front | Replaced by WA51947SK |
| 2024 | Nissan | Sentra | — | Front | Replaced by WA51947SK |
| 2023 | Nissan | Kicks | SV | Front | Replaced by WA51947SK |
| 2023 | Nissan | Sentra | — | Front | Replaced by WA51947SK |
| 2022 | Nissan | Kicks | SR | Front | Replaced by WA51947SK |
| 2022 | Nissan | Sentra | — | Front | Replaced by WA51947SK |
| 2021 | Nissan | Kicks | SR | Front | Replaced by WA51947SK |
| 2021 | Nissan | Sentra | — | Front | Replaced by WA51947SK |
| 2020 | Nissan | Sentra | — | Front | Replaced by WA51947SK |
