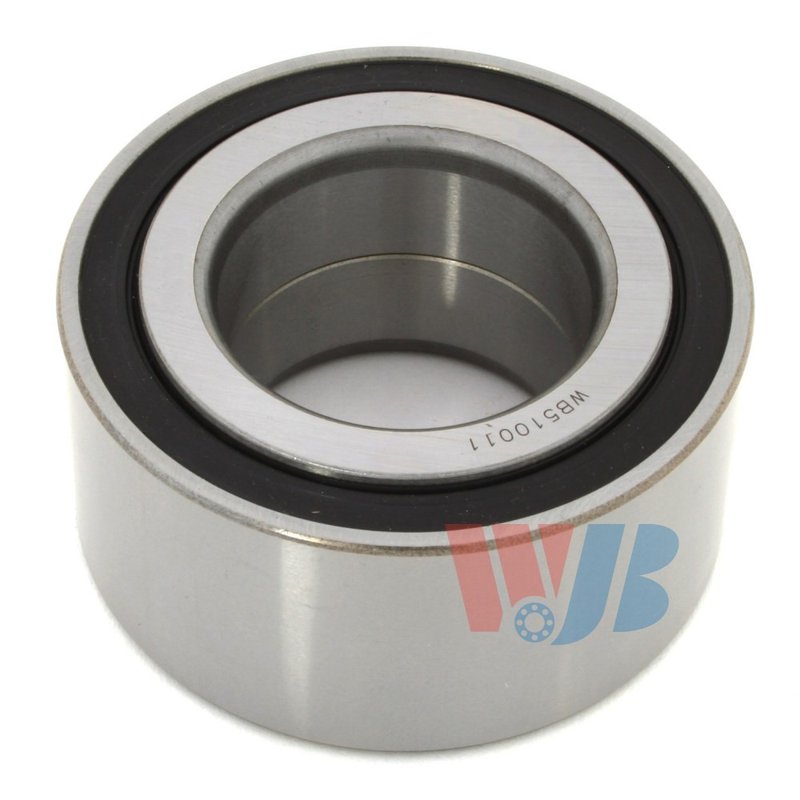

InMotion WB510011 Wheel Bearing - Front or Rear Inner
| Brand | InMotion WB510011 |
|---|---|
| Position | Front and Rear Inner |
| 10023 | Round |
| Inside Diameter | 1.89 |
| Inside Diameter | 48 |
| Flange Included | No |
| Anti Lock Braking System | No |
| Bearing Generation | Gen 1 |
| Width | 1.6539999999999999 |
| Width | 42 |
| Outside Diameter | 3.504 |
| Outside Diameter | 89 |
| Row Quantity | 2 |
| Drive Type | Non-driven |
| Bearing Type | Ball |
| Fits | Acura, Honda, Lexus, and Toyota · 41 vehicles |
Ball bearing design. Delivers smooth rotation with reduced friction and stable performance.
Dual-row construction. Helps support durability and consistent operation across applications.
Easy installation. A universal wheel bearing for multiple industrial and automotive uses.
Wheel Bearing for Lexus, Toyota, Acura, and Honda
InMotion WB510011 is a round, Gen 1 ball wheel bearing built for rear inner and front applications across select Lexus, Toyota, Acura, and Honda vehicles. With a 2-row design, non-driven configuration, and no ABS provision, it is specified for smooth rotation, reduced friction, and stable wheel support.
Key Features
- Part number: WB510011
- Wheel bearing type: ball bearing
- Round design with 2-row construction
- Inside diameter: 1.89 in. / 48 mm
- Outside diameter: 3.504 in. / 89 mm
- Width: 1.654 in. / 42 mm
- Non-driven application
- No flange included
- ABS: No
Detailed Description
InMotion WB510011 is engineered from high-quality materials for consistent wheel support in automotive service. Its Gen 1 construction and ball-bearing design help maintain rotational smoothness while reducing friction under everyday driving loads. This bearing is listed for rear inner use on 1998-2007 Lexus LX470 and 1998-2007 Toyota Land Cruiser, plus front applications on 1996-2004 Acura RL, 2003-2004 Honda Pilot, 2001-2002 Acura MDX, 1996-1998 Acura TL, and 1991-1995 Acura Legend. If you are sourcing a wheel bearing for a Lexus LX470 rear inner hub or a Toyota Land Cruiser rear inner hub, WB510011 provides a direct fitment reference for those service needs.
What It Helps Address
- Wheel noise caused by worn bearing surfaces
- Excessive play or looseness at the wheel hub
- Rough rotation that affects drivability
- Vibration related to bearing wear
- Reduced hub stability during normal operation
Installation Notes and Tips
Confirm hub dimensions before installation and match the bearing to the correct position: rear inner or front, depending on the vehicle. Verify that the application does not require an ABS-equipped bearing, since this unit is listed without ABS. For Acura RL, Acura MDX, Acura TL, Acura Legend, Honda Pilot, Lexus LX470, and Toyota Land Cruiser applications, compare the old bearing dimensions and position details before pressing the new unit into place.
Quality Assurance
InMotion WB510011 is built as a universal-performing wheel bearing for automotive and industrial environments, with an emphasis on durability, smooth operation, and consistent service life across multiple applications. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2007 | Lexus | LX470 | — | — | Rear Inner | — |
| 2007 | Toyota | Land Cruiser | — | — | Rear Inner | — |
| 2006 | Lexus | LX470 | — | — | Rear Inner | — |
| 2006 | Toyota | Land Cruiser | — | — | Rear Inner | — |
| 2005 | Lexus | LX470 | — | — | Rear Inner | — |
| 2005 | Toyota | Land Cruiser | — | — | Rear Inner | — |
| 2004 | Acura | RL | — | — | Front | — |
| 2004 | Honda | Pilot | — | — | Front | — |
| 2004 | Lexus | LX470 | — | — | Rear Inner | — |
| 2004 | Toyota | Land Cruiser | — | — | Rear Inner | — |
| 2003 | Acura | RL | — | — | Front | — |
| 2003 | Honda | Pilot | — | — | Front | — |
| 2003 | Lexus | LX470 | — | — | Rear Inner | — |
| 2003 | Toyota | Land Cruiser | — | — | Rear Inner | — |
| 2002 | Acura | MDX | — | — | Front | — |
| 2002 | Acura | RL | — | — | Front | — |
| 2002 | Lexus | LX470 | — | — | Rear Inner | — |
| 2002 | Toyota | Land Cruiser | — | — | Rear Inner | — |
| 2001 | Acura | MDX | — | — | Front | — |
| 2001 | Acura | RL | — | — | Front | — |
| 2001 | Lexus | LX470 | — | — | Rear Inner | — |
| 2001 | Toyota | Land Cruiser | — | — | Rear Inner | — |
| 2000 | Acura | RL | — | — | Front | — |
| 2000 | Lexus | LX470 | — | — | Rear Inner | — |
| 2000 | Toyota | Land Cruiser | — | — | Rear Inner | — |
| 1999 | Acura | RL | — | — | Front | — |
| 1999 | Lexus | LX470 | — | — | Rear Inner | — |
| 1999 | Toyota | Land Cruiser | — | — | Rear Inner | — |
| 1998 | Acura | RL | — | — | Front | — |
| 1998 | Acura | TL | 3.2L | V6 | Front | — |
| 1998 | Lexus | LX470 | — | — | Rear Inner | — |
| 1998 | Toyota | Land Cruiser | — | — | Rear Inner | — |
| 1997 | Acura | RL | — | — | Front | — |
| 1997 | Acura | TL | 3.2L | V6 | Front | — |
| 1996 | Acura | RL | — | — | Front | — |
| 1996 | Acura | TL | 3.2L | V6 | Front | — |
| 1995 | Acura | Legend | — | — | Front | — |
| 1994 | Acura | Legend | — | — | Front | — |
| 1993 | Acura | Legend | — | — | Front | — |
| 1992 | Acura | Legend | — | — | Front | — |
| 1991 | Acura | Legend | — | — | Front | — |
