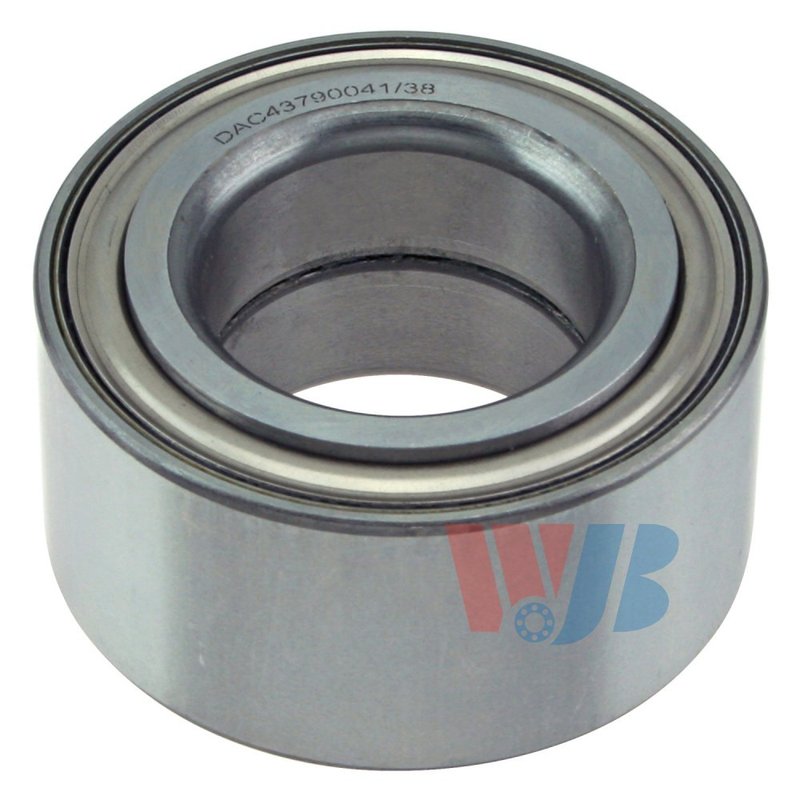

InMotion WB510030 Wheel Bearing - Front

Wheel Bearing for Honda Civic and Acura EL

InMotion WB510030 is a front wheel bearing built for select Honda and Acura applications. It uses a round, double-row ball bearing design with a 43 mm inside diameter, 79 mm outside diameter, and 38 mm width for stable rotational support and reduced friction.

Compatible With 1992-2005 Honda Civic, front; 2001-2005 Acura EL, front; 1994-2001 Acura Integra, front; and 1994-1997 Honda Civic del Sol, front. It also fits 1997-2000 Acura EL, front, with 4-wheel ABS brakes.

Key Features

• Part number WB510030
• Front wheel bearing for non-driven applications
• Gen 1 bearing generation
• Double-row ball bearing construction
• Round profile with no flange included
• Inside diameter: 43 mm (1.693 in.)
• Outside diameter: 79 mm (3.110 in.)
• Width: 38 mm (1.496 in.)
• ABS: No

Detailed Description

InMotion WB510030 is engineered as a universal-style wheel bearing for automotive and industrial use, with a focus on smooth rotation, friction reduction, and long service life. For front-end service on Honda Civic, Acura EL, Acura Integra, and Honda Civic del Sol applications, this bearing provides the dimensional accuracy needed for proper hub support and consistent wheel movement. The WB510030 part number is a direct reference for buyers searching for a front wheel bearing for 1992-2005 Honda Civic or 2001-2005 Acura EL service.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Part Can Address

• Front wheel noise caused by worn bearing surfaces
• Excessive wheel play or looseness at the hub
• Rough or uneven wheel rotation
• Vibration from deteriorated front bearing support
• Reduced stability from bearing wear in the front suspension assembly

Installation Notes and Tips

Verify bearing dimensions, position, and ABS configuration before installation. This WB510030 bearing is for front use and does not include a flange. Proper press-fit procedures and clean mating surfaces are important for correct seating and long-term performance. Confirm vehicle application by year, make, model, and brake configuration before service.

Quality Assurance

InMotion manufactures this bearing from high-quality materials for consistent operation across automotive and industrial environments. The WB510030 is built to support reliable rotational performance and durability in the specified Honda and Acura front-wheel applications.
