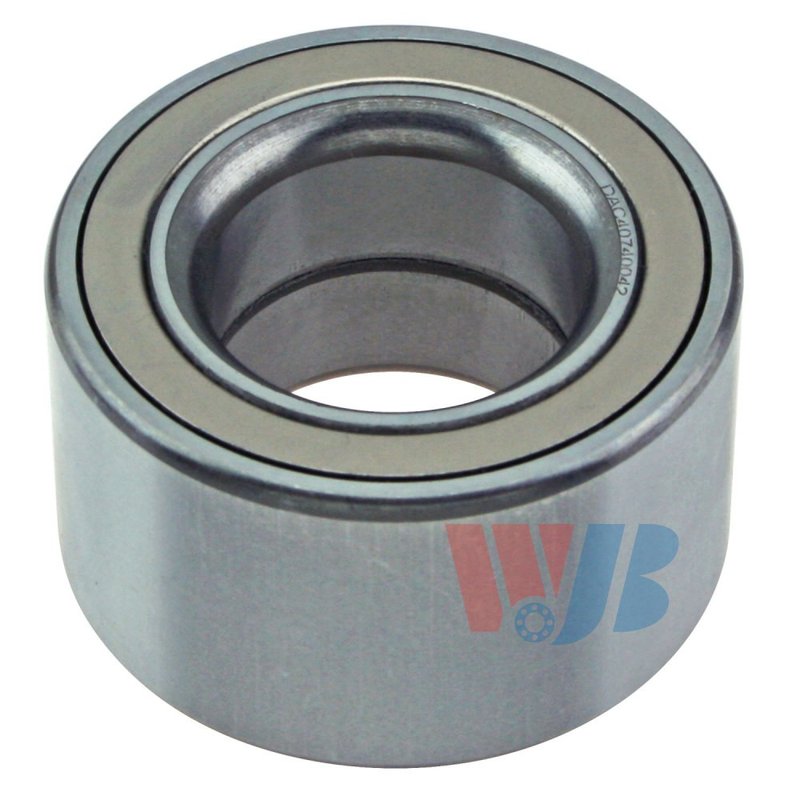

InMotion WB510070 Wheel Bearing - Front or Rear
| Brand | InMotion WB510070 |
|---|---|
| Position | Front and Rear |
| 10023 | Round |
| Inside Diameter | 1.575 |
| Inside Diameter | 40 |
| Flange Included | No |
| Anti Lock Braking System | No |
| Bearing Generation | Gen 1 |
| Width | 1.654 |
| Width | 42 |
| Outside Diameter | 2.913 |
| Outside Diameter | 74 |
| Row Quantity | 2 |
| Drive Type | Non-driven |
| Bearing Type | Ball |
| Fits | Pontiac, Scion, and Toyota · 60 vehicles |
Universal fit. A multi-purpose bearing for a wide range of applications.
Ball bearing design. Delivers smooth operation and reduced friction.
Easy installation. Built for compatibility across multiple uses.
Wheel Bearing for Toyota and Scion Front Applications
The InMotion WB510070 is a round, Gen 1 ball wheel bearing built for non-driven front and rear applications where smooth rotation and reduced friction matter. With a 40 mm inside diameter, 74 mm outside diameter, and 42 mm width, it is sized for specific Toyota, Scion, and Pontiac fitments across multiple model years.
- Part number: WB510070
- Round, Gen 1 ball bearing construction
- 40 mm inside diameter, 74 mm outside diameter, 42 mm width
- Two-row bearing design for rotational support
- Non-driven application
- No flange included
- ABS sensor ring not included
Fitment and Application Details
Compatible With front wheel bearing replacement needs on 2003-2019 Toyota Corolla, 2017-2018 Toyota Corolla iM, 2003-2014 Toyota Matrix, 2003-2010 Pontiac Vibe, 2005-2010 Scion tC, 2000-2005 Toyota Celica, and 2001-2003 Toyota Prius. It also fits 2000-2005 Toyota MR2 Spyder, rear. The WB510070 is a practical choice when servicing Toyota Corolla front wheel bearing assemblies or replacing a front wheel bearing on a Scion tC or Pontiac Vibe.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Bearing Can Address
- Wheel noise caused by worn bearing surfaces
- Excess play or looseness at the hub
- Rough rotation during wheel service
- Friction-related driveline vibration at the wheel end
- Reduced stability from a deteriorated front or rear bearing
Installation Notes
Verify the inside diameter, outside diameter, width, and position before installation. This bearing is listed for front use on most applications and rear use on the 2000-2005 Toyota MR2 Spyder. Confirm that the vehicle does not require an ABS-equipped bearing, since this unit is listed without ABS support and without a flange.
Quality Assurance
InMotion manufactures this wheel bearing from high-quality materials for consistent rotational performance and durability across automotive service applications. Part number WB510070 is specified for multiple Toyota, Scion, and Pontiac platforms, including Toyota Corolla and Toyota Matrix front bearing service.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2019 | Toyota | Corolla | — | — | Front | — |
| 2018 | Toyota | Corolla | — | — | Front | — |
| 2018 | Toyota | Corolla iM | — | — | Front | — |
| 2017 | Toyota | Corolla | — | — | Front | — |
| 2017 | Toyota | Corolla iM | — | — | Front | — |
| 2016 | Toyota | Corolla | — | — | Front | — |
| 2015 | Toyota | Corolla | — | — | Front | — |
| 2014 | Toyota | Corolla | — | — | Front | — |
| 2014 | Toyota | Matrix | — | — | Front | — |
| 2013 | Toyota | Corolla | — | — | Front | — |
| 2013 | Toyota | Matrix | 1.8L | L4 | Front | — |
| 2012 | Toyota | Corolla | — | — | Front | — |
| 2012 | Toyota | Matrix | 1.8L | L4 | Front | — |
| 2011 | Toyota | Corolla | — | — | Front | — |
| 2011 | Toyota | Matrix | 1.8L | L4 | Front | — |
| 2010 | Pontiac | Vibe | 1.8L | L4 | Front | — |
| 2010 | Scion | tC | — | — | Front | — |
| 2010 | Toyota | Corolla | — | — | Front | — |
| 2010 | Toyota | Matrix | 1.8L | L4 | Front | — |
| 2009 | Pontiac | Vibe | 1.8L | L4 | Front | — |
| 2009 | Scion | tC | — | — | Front | — |
| 2009 | Toyota | Corolla | — | — | Front | — |
| 2009 | Toyota | Matrix | 1.8L | L4 | Front | — |
| 2008 | Pontiac | Vibe | — | — | Front | — |
| 2008 | Scion | tC | — | — | Front | — |
| 2008 | Toyota | Corolla | — | — | Front | — |
| 2008 | Toyota | Matrix | — | — | Front | — |
| 2007 | Pontiac | Vibe | — | — | Front | — |
| 2007 | Scion | tC | — | — | Front | — |
| 2007 | Toyota | Corolla | — | — | Front | — |
| 2007 | Toyota | Matrix | — | — | Front | — |
| 2006 | Pontiac | Vibe | — | — | Front | — |
| 2006 | Scion | tC | — | — | Front | — |
| 2006 | Toyota | Corolla | — | — | Front | — |
| 2006 | Toyota | Matrix | — | — | Front | — |
| 2005 | Pontiac | Vibe | — | — | Front | — |
| 2005 | Scion | tC | — | — | Front | — |
| 2005 | Toyota | Celica | — | — | Front | — |
| 2005 | Toyota | Corolla | — | — | Front | — |
| 2005 | Toyota | Matrix | — | — | Front | — |
| 2005 | Toyota | MR2 Spyder | — | — | Rear | — |
| 2004 | Pontiac | Vibe | — | — | Front | — |
| 2004 | Toyota | Celica | — | — | Front | — |
| 2004 | Toyota | Corolla | — | — | Front | — |
| 2004 | Toyota | Matrix | — | — | Front | — |
| 2004 | Toyota | MR2 Spyder | — | — | Rear | — |
| 2003 | Pontiac | Vibe | — | — | Front | — |
| 2003 | Toyota | Celica | — | — | Front | — |
| 2003 | Toyota | Corolla | — | — | Front | — |
| 2003 | Toyota | Matrix | — | — | Front | — |
| 2003 | Toyota | MR2 Spyder | — | — | Rear | — |
| 2003 | Toyota | Prius | — | — | Front | — |
| 2002 | Toyota | Celica | — | — | Front | — |
| 2002 | Toyota | MR2 Spyder | — | — | Rear | — |
| 2002 | Toyota | Prius | — | — | Front | — |
| 2001 | Toyota | Celica | — | — | Front | — |
| 2001 | Toyota | MR2 Spyder | — | — | Rear | — |
| 2001 | Toyota | Prius | — | — | Front | — |
| 2000 | Toyota | Celica | — | — | Front | — |
| 2000 | Toyota | MR2 Spyder | — | — | Rear | — |
