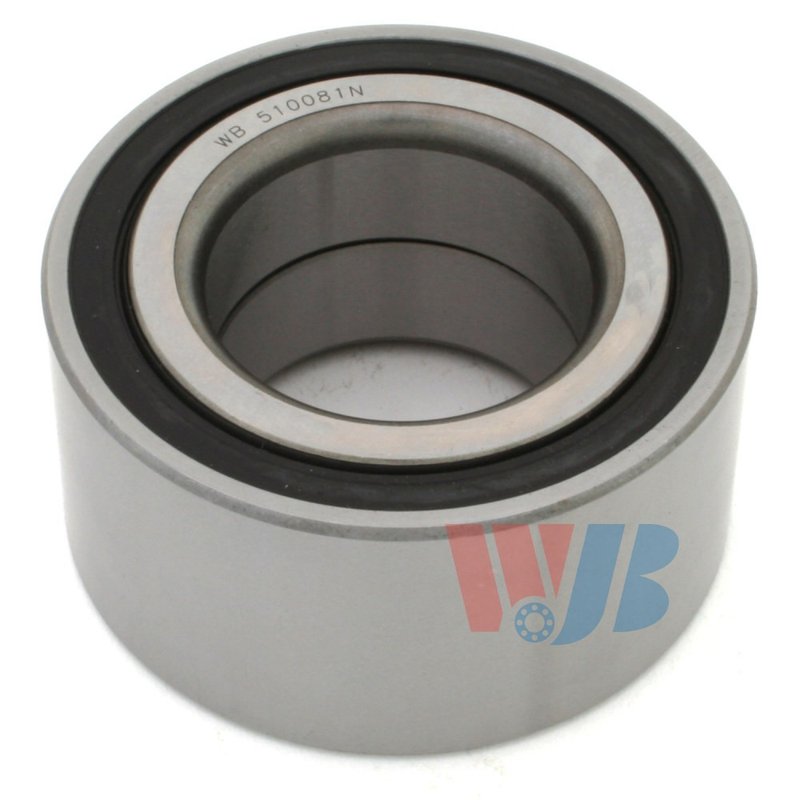

InMotion WB510081 Wheel Bearing - Front or Rear

Wheel Bearing for BMW and Rolls-Royce Fitments

InMotion WB510081 is a front or rear wheel bearing application built for select BMW xDrive models and the Rolls-Royce Phantom. It uses a 2-row ball bearing design with an integrated encoder for ABS-equipped vehicles, helping maintain smooth wheel rotation and stable sensor input.

Key Features

• Part number: WB510081
• Wheel bearing type: ball bearing
• 2-row construction for load support and rotational stability
• ABS encoder type: encoder
• ABS provision: yes
• Round bearing design
• Inside diameter: 49 mm (1.929 in)
• Outside diameter: 90 mm (3.543 in)
• Width: 45 mm (1.772 in)
• Non-driven application
• Generation: Gen 1
• No flange included

Detailed Description

WB510081 is a precision wheel bearing for driveline and axle service where consistent wheel support and ABS signal accuracy matter. The bearing’s 49 mm inside diameter, 90 mm outside diameter, and 45 mm width provide the dimensional profile needed for the listed BMW and Rolls-Royce applications. This part number, WB510081, is specified for front use on multiple BMW xDrive and xi models, as well as rear use on the Rolls-Royce Phantom.

Compatible vehicle coverage includes Fits 2004-2019 Rolls-Royce Phantom, Rear; Fits 2009-2013 BMW 328i xDrive, Front; Fits 2009-2013 BMW 335i xDrive, Front; Fits 2009-2012 BMW 535i xDrive, Front; Fits 2011-2012 BMW 550i xDrive, Front; Fits 2012 BMW 650i, Front; Fits 2004-2012 BMW X3, Front; and additional BMW front applications listed below. This part cross-references no listed interchange numbers in the provided data.

What It Helps Address

• Wheel noise caused by worn bearing surfaces
• Excess wheel play or looseness at the hub
• ABS warning concerns related to encoder-equipped bearing service
• Rough or inconsistent wheel rotation
• Front or rear hub support wear on BMW and Rolls-Royce platforms

Installation Notes and Tips

Confirm the vehicle position before installation, since WB510081 is used in both front and rear applications depending on model. Verify the 49 mm inside diameter, 90 mm outside diameter, and 45 mm width against the removed part before assembly. Because this bearing includes ABS encoder functionality, inspect the tone/encoder side and sensor condition during service. Professional installation is recommended for proper hub alignment and bearing seating.

Quality Assurance

InMotion manufactures this bearing from high-quality materials for durable, consistent operation across automotive and industrial use cases. The Gen 1, 2-row ball bearing construction is intended to deliver reliable rotational performance and long service life in the specified BMW and Rolls-Royce applications.
