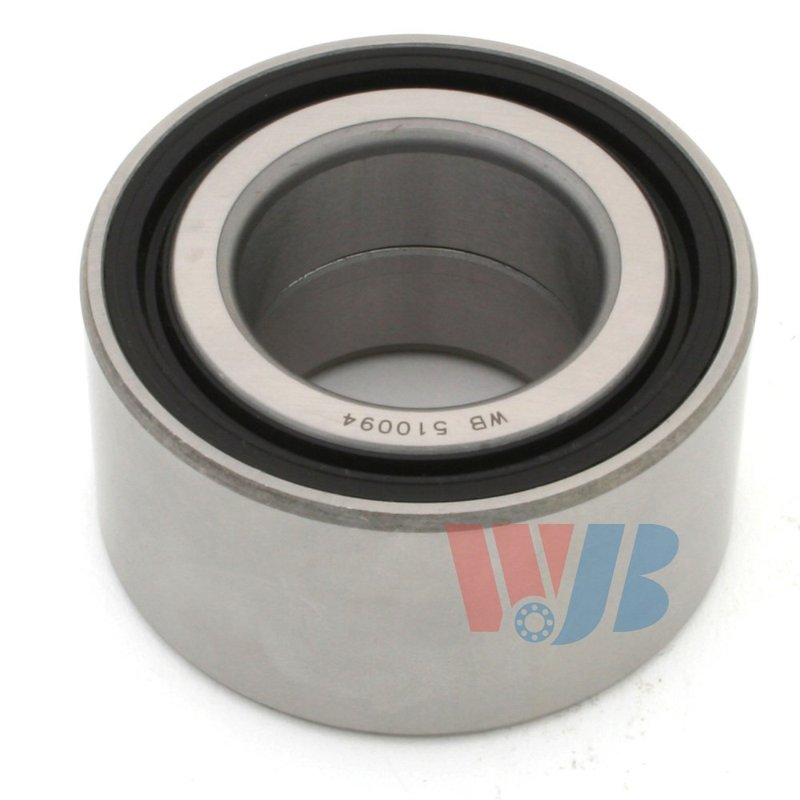

InMotion WB510094 Wheel Bearing - Front

Front Wheel Bearing for Toyota and Scion

InMotion WB510094 is a front wheel bearing built for select Toyota and Scion applications that use a 40 mm inside diameter, 75 mm outside diameter, and 39 mm width. This Gen 1, two-row ball bearing includes ABS encoder functionality and is specified for non-driven front positions.

Compatible With 2006-2020 Toyota Yaris, 2019 Toyota Prius AWD-e, 2012-2019 Toyota Prius C, 2018-2019 Toyota Prius Prime, 2017-2018 Toyota Prius V, 2017-2018 Toyota Yaris iA, 2012-2015 Scion iQ, and 2008-2014 Scion xD, front.

• Part number WB510094 for front wheel bearing replacement
• 40 mm inside diameter, 75 mm outside diameter, 39 mm width
• Two-row ball bearing construction
• ABS encoder type included for vehicles with anti-lock braking systems
• Round bearing design with no flange
• Non-driven wheel bearing for front axle applications

Application Details

This wheel bearing is used in front hub assemblies where smooth rotation, reduced friction, and stable wheel support are required. It is a direct-fit service part for Toyota Yaris, Prius C, Prius Prime, Prius V, Prius AWD-e, Yaris iA, and Scion iQ and xD front positions listed above. WB510094 is also a practical reference when searching for a Toyota Yaris front wheel bearing or Scion xD front wheel bearing replacement.

Common Problems It Can Address

• Wheel noise or growling from a worn front bearing
• Excessive hub play or looseness at the wheel
• ABS warning concerns related to encoder-equipped bearing service
• Rough wheel rotation caused by bearing wear
• Reduced front-end stability from a deteriorated bearing assembly

Installation Notes

Verify the 40 mm inside diameter, 75 mm outside diameter, and 39 mm width before installation. Confirm front position, non-driven application, and ABS encoder requirements against the vehicle’s original bearing specification. Proper hub and knuckle inspection is recommended during service to ensure the new bearing seats correctly.

Quality Assurance

InMotion WB510094 is manufactured from high-quality materials for consistent rotational performance and durability across automotive service environments. The bearing is engineered for reliable operation in the specified front applications and is identified by part number WB510094 for ordering and catalog matching.
