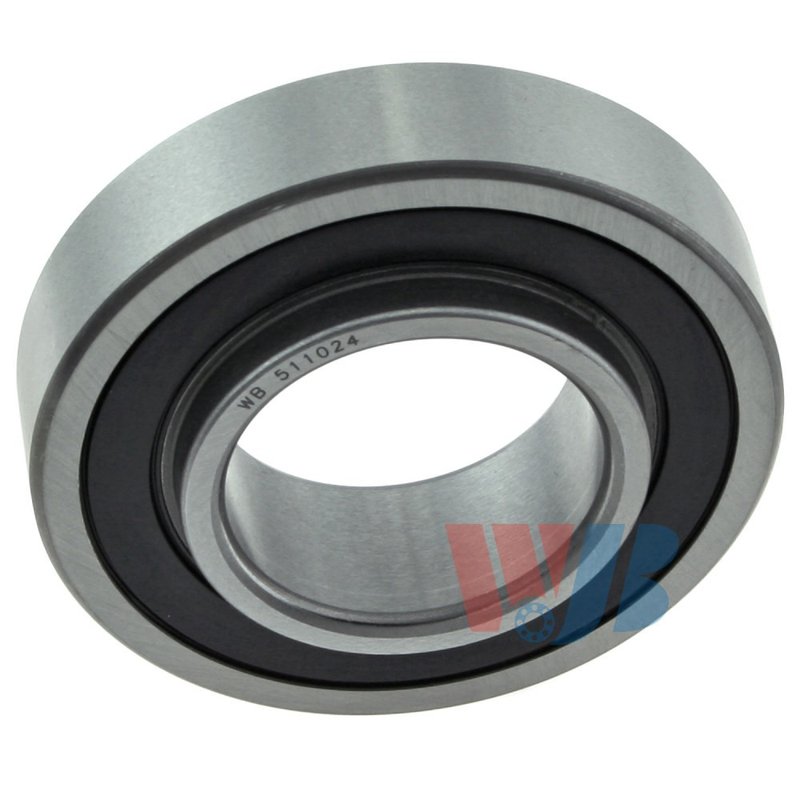

InMotion WB511024 Wheel Bearing - Rear

Rear Wheel Bearing for Suzuki and Chevrolet

The InMotion WB511024 is a rear wheel bearing built for select Suzuki and Chevrolet applications. It uses a single-row ball design with a round profile, 40 mm inside diameter, 80 mm outside diameter, and 23 mm width for precise rotational support.

Compatible with 1999-2005 Suzuki Grand Vitara rear, 1999-2004 Chevrolet Tracker rear, and 1999-2004 Suzuki Vitara rear, this bearing is a direct service part for common rear hub repair needs. The WB511024 is a Gen 1, non-driven bearing with no flange included and no ABS provision.

Key Features

• Part number: WB511024
• Rear wheel bearing for driveline and axle service
• Single-row ball bearing construction
• 40 mm inside diameter, 80 mm outside diameter, 23 mm width
• Round bearing profile
• Non-driven design with no flange included
• No ABS sensor provision

Detailed Description

InMotion WB511024 is engineered as a universal-style wheel bearing for rear axle applications where smooth rotation and reduced friction are required. Its ball-bearing construction supports stable wheel movement, while the Gen 1 design and standard dimensions help maintain proper fit in the hub assembly. This part number WB511024 is listed for rear use on the Suzuki Grand Vitara, Chevrolet Tracker, and Suzuki Vitara across the model years shown.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Rear wheel noise caused by worn bearing surfaces
• Excessive wheel play or looseness at the hub
• Rough rotation from bearing wear or contamination
• Reduced stability from a failing rear bearing assembly
• Service replacement needs on Suzuki Grand Vitara, Chevrolet Tracker, and Suzuki Vitara rear hubs

Installation Notes and Tips

Verify the inside diameter, outside diameter, and width against the original bearing before installation. Confirm rear position and non-driven hub configuration, and check whether your vehicle uses ABS before ordering, since this bearing is listed without ABS provision. Proper hub inspection and clean seating surfaces help support correct bearing installation.

Quality Assurance

Crafted from high-quality materials for consistent performance in automotive and industrial use, the WB511024 is built to deliver reliable rotational support and durability across demanding service conditions.
