Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

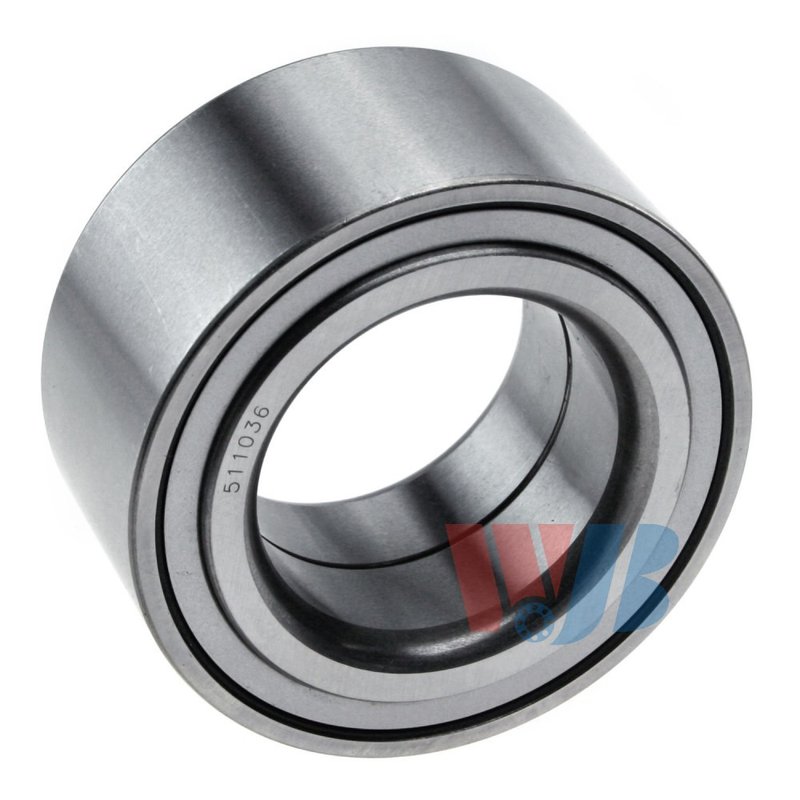

InMotion WB511036 Wheel Bearing - Rear
| Brand | InMotion WB511036 |
|---|---|
| Position | Rear |
| 10023 | Round |
| Inside Diameter | 1.929 |
| Inside Diameter | 49 |
| Flange Included | No |
| Anti Lock Braking System | No |
| Bearing Generation | Gen 1 |
| Width | 1.575 |
| Width | 40 |
| Outside Diameter | 3.307 |
| Outside Diameter | 84 |
| Row Quantity | 2 |
| Drive Type | Non-driven |
| Bearing Type | Ball |
| Fits | Acura · 4 vehicles |
Multi-purpose bearing. Built for smooth operation, reduced friction, and stable performance across applications.
Ball bearing design. Delivers reliable rotational performance with a two-row construction.
Easy installation. A universal performer for a wide range of industrial and automotive uses.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Rear Wheel Bearing for Acura MDX
The InMotion WB511036 is a rear wheel bearing built for 2003-2006 Acura MDX applications. It uses a round, Gen 1, two-row ball bearing design with a non-driven configuration to support smooth wheel rotation and stable operation.
Key Features
- Fits 2003-2006 Acura MDX, rear
- Part number: WB511036
- Round wheel bearing design
- Gen 1 bearing generation
- Two-row ball bearing construction
- Non-driven application
- No flange included
- ABS: No
- Inside diameter: 49 mm (1.929 in)
- Outside diameter: 84 mm (3.307 in)
- Width: 40 mm (1.575 in)
Detailed Description
InMotion WB511036 is a rear wheel bearing for the Acura MDX that measures 49 mm inside diameter, 84 mm outside diameter, and 40 mm width. The two-row ball bearing layout is engineered for rotational support and reduced friction in wheel-end service, while the non-driven design matches rear applications on the 2003-2006 Acura MDX. This part number, WB511036, is a direct fitment reference for the listed vehicle range.
Common Repair Symptoms
- Wheel-end noise or growling from the rear
- Excessive play or looseness at the wheel
- Rough rotation during inspection
- Uneven wheel bearing wear on the rear axle
Installation Notes
Verify rear axle fitment, bearing dimensions, and ABS requirements before installation. Press-fit wheel bearing service should be performed with proper bearing tools and clean mating surfaces to avoid damage during assembly. Confirm the hub and related components are within specification before returning the vehicle to service.
Quality Assurance
Built from high-quality materials for consistent wheel-end performance in automotive and industrial use. The InMotion WB511036 is specified for 2003-2006 Acura MDX rear applications and is identified by part number WB511036 for accurate ordering and service matching.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2006 | Acura | MDX | Rear | — |
| 2005 | Acura | MDX | Rear | — |
| 2004 | Acura | MDX | Rear | — |
| 2003 | Acura | MDX | Rear | — |
