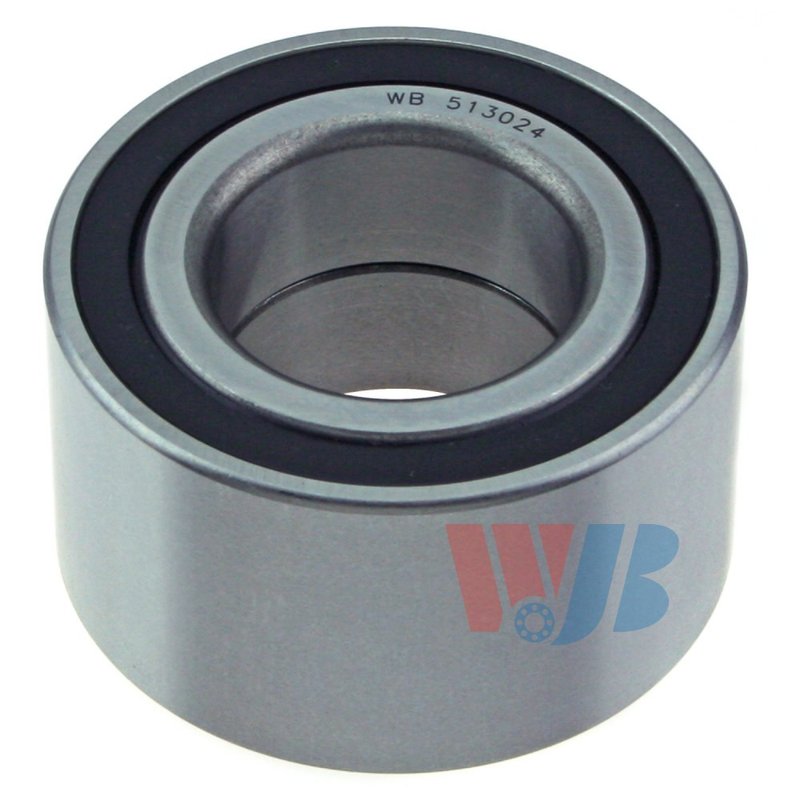

InMotion WB513024 Wheel Bearing - Front

Front Wheel Bearing for Honda and Acura

The InMotion WB513024 is a front wheel bearing built for select Honda and Acura applications. It uses a round, double-row ball bearing design with a 38 mm inside diameter, 72 mm outside diameter, and 40 mm width for stable rotational support and reduced friction.

Compatible With 1984-1991 Honda Civic, front; 1988-1991 Honda CRX, front; and 1986-1989 Acura Integra, front. The WB513024 is a Gen 1, non-driven bearing with no flange included and no ABS provision.

Key Features

• Part number: WB513024
• Front wheel bearing application
• Round, double-row ball bearing construction
• Inside diameter: 1.496 in. / 38 mm
• Outside diameter: 2.835 in. / 72 mm
• Width: 1.575 in. / 40 mm
• Gen 1 bearing design
• Non-driven, no flange included, no ABS sensor provision

Detailed Description

InMotion WB513024 is a replacement wheel bearing for front hub service on 1984-1991 Honda Civic, 1988-1991 Honda CRX, and 1986-1989 Acura Integra models. Its double-row ball bearing layout is suited to rotational loads at the front wheel position, while the round profile and precise dimensions support proper hub fitment. The WB513024 part number is a direct reference for buyers searching for a front wheel bearing for Honda Civic, Honda CRX, or Acura Integra applications.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Front wheel noise caused by worn bearing surfaces
• Excessive hub play or looseness
• Rough wheel rotation and friction-related drag
• Vibration from deteriorated front bearing components
• Service replacement for aging Honda Civic, Honda CRX, and Acura Integra front hubs

Installation Notes and Tips

Verify hub dimensions, bearing generation, and front position before installation. Confirm that the vehicle does not require an ABS-equipped bearing, since this unit is listed with no ABS provision. Press-fit bearing service should be performed with the correct tools to avoid damage to the bearing race or hub assembly.

Quality Assurance

InMotion manufactures this bearing from high-quality materials for consistent operation in automotive and industrial use. The WB513024 is specified with clear dimensional and application data to support accurate replacement selection.
