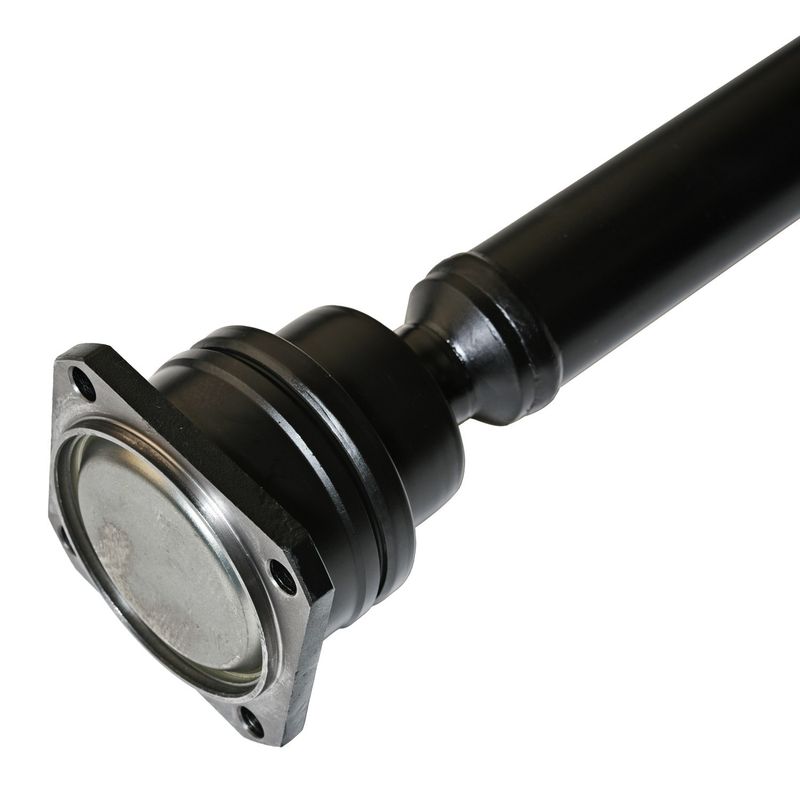

InMotion WDS36-113 Drive Shaft - Front

Drive Shaft Overview

This InMotion drive shaft is built for front driveline service on select midsize trucks. It is a direct-fit replacement for applications that require the specified shaft length, diameter, and adjustable overall length.

Fits 2004-2012 Chevrolet Colorado, front. Fits 2004-2012 GMC Canyon, front. Fits 2007-2008 Isuzu i-370, front. Fits 2006 Isuzu i-350, front.

Key Features

• Drive shaft for front driveline replacement applications.
• Steel shaft construction with a 45, 40Cr, SS400 material specification.
• 27.677 in. shaft length with 30 in. overall length adjustable range.
• 51 mm shaft diameter and 2 mm wall thickness.
• Cross-references Dorman - OE Solutions 936-113 for the same application.

Detailed Description

Use this InMotion drive shaft when servicing the front driveline on Chevrolet Colorado, GMC Canyon, Isuzu i-370, and Isuzu i-350 models listed in the fitment data. The shaft is specified at 703 mm in length, with a 51 mm diameter and 2 mm wall thickness for a precise replacement match. Part number WDS36-113 is also referenced as 936-113 in Dorman - OE Solutions listings for the same application.

The design does not include CV joints, an axle nut, or a slip yoke, so it is important to verify the existing driveline configuration before ordering. The adjustable overall length provides additional fitment flexibility within the listed application range. Part number WDS36-113 should be matched to the vehicle’s original shaft dimensions and mounting setup before installation.

What It Is Used For

• Replacing a worn or damaged front drive shaft.
• Restoring driveline balance after shaft wear or deformation.
• Addressing vibration caused by incorrect shaft dimensions.
• Correcting driveline noise linked to shaft damage or play.

Installation Notes and Tips

Confirm the vehicle’s front driveline measurements, shaft diameter, and overall length before installation. Verify that the application does not require CV joints, a slip yoke, or an axle nut, since those components are not included. Compare the original part number WDS36-113 and the listed interchange 936-113 to ensure the correct replacement.

Quality Assurance

InMotion supplies this drive shaft as a replacement driveline component for the listed applications. Review the fitment details carefully against the vehicle’s original configuration before installation.
