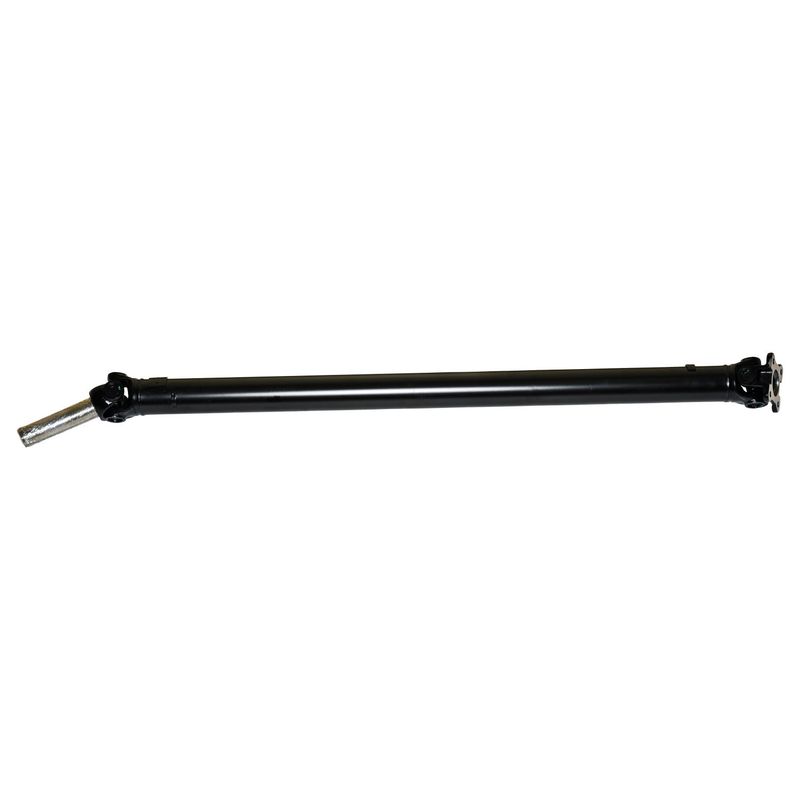

InMotion WDS36-539 Drive Shaft - Rear
| Brand | InMotion WDS36-539 |
|---|---|
| Position | Rear |
| 10920 | No |
| Shaft Material | 45,40cr?ss400 |
| CV Joints Included | No |
| Axle Nut Included | No |
| Slip Yoke | Yes |
| Drive Shaft Length (in) | 62.795 |
| Drive Shaft Length (mm) | 1595 |
| Drive Shaft Wall Thickness (mm) | 2 |
| Overall Length Adjustable | 0 |
| Shaft Diameter (mm) | 73 |
| Fits | Dodge · 7 vehicles |
Slip yoke design. Built for the listed driveline configuration with a slip yoke included.
Steel shaft construction. Uses 45,40Cr?SS400 material with a 73 mm diameter and 2 mm wall thickness.
Fit-specific replacement. Matches the specified rear Ram 1500 bed-length applications.
Cross-references Dorman - OE Solutions 936-539 for the same application. See all 1.
Drive Shaft for Ram 1500
This InMotion drive shaft, part number WDS36-539, is built for rear driveline service on select Dodge Ram 1500 trucks. It matches the listed bed-length applications and uses a slip yoke design for the specified fitment.
Key Features
- Fits 2007-2008 Dodge Ram 1500, rear, 76.3 bed length.
- Fits 2003-2006 Dodge Ram 1500, rear, 75.9 bed length.
- Fits 2002 Dodge Ram 1500, rear, 78.0 bed length.
- Steel shaft construction with a 73 mm diameter and 2 mm wall thickness.
- Slip yoke included in the shaft design.
- Direct replacement part number WDS36-539 for listed applications.
Detailed Description
WDS36-539 is a rear drive shaft assembly for Dodge Ram 1500 applications that require the listed bed-length configurations. The shaft measures 1595 mm overall length, with a 73 mm tube diameter and 2 mm wall thickness, giving it the dimensional profile needed for the specified driveline setup. The shaft material is listed as 45,40Cr?SS400, and the design includes a slip yoke while excluding CV joints and an axle nut.
For Ram 1500 owners replacing a worn or damaged rear driveshaft, this part number WDS36-539 provides a fit-specific solution for the covered model years and bed lengths. This part cross-references Dorman - OE Solutions 936-539 for the same application.
What It Is Used For
- Restoring rear driveline function after shaft wear or damage.
- Replacing a bent or out-of-balance drive shaft.
- Addressing vibration caused by driveline component deterioration.
- Correcting fitment issues on the specified Ram 1500 bed-length applications.
Installation Notes and Tips
Verify the truck’s model year, rear position, and bed length before ordering. Confirm driveline measurements against the existing shaft, including overall length and tube diameter, to match the listed application. Inspect related driveline components during installation to ensure the replacement shaft is installed into a clean, serviceable assembly.
| Year | Make | Model | Body Type | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2008 | Dodge | Ram 1500 | Standard Cab Pickup | RWD | Automatic | 5.7L | V8 | Rear | 76.3 Bed Length |
| 2007 | Dodge | Ram 1500 | Standard Cab Pickup | RWD | Automatic | 5.7L | V8 | Rear | 76.3 Bed Length |
| 2006 | Dodge | Ram 1500 | Standard Cab Pickup | RWD | Automatic | 4.7L | V8 | Rear | 75.9 Bed Length |
| 2005 | Dodge | Ram 1500 | Standard Cab Pickup | RWD | Automatic | — | — | Rear | 75.9 Bed Length |
| 2004 | Dodge | Ram 1500 | Standard Cab Pickup | RWD | Automatic | — | — | Rear | 75.9 Bed Length |
| 2003 | Dodge | Ram 1500 | Standard Cab Pickup | RWD | Automatic | — | — | Rear | 75.9 Bed Length |
| 2002 | Dodge | Ram 1500 | Standard Cab Pickup | RWD | Automatic | — | — | Rear | 78.0 Bed Length |
