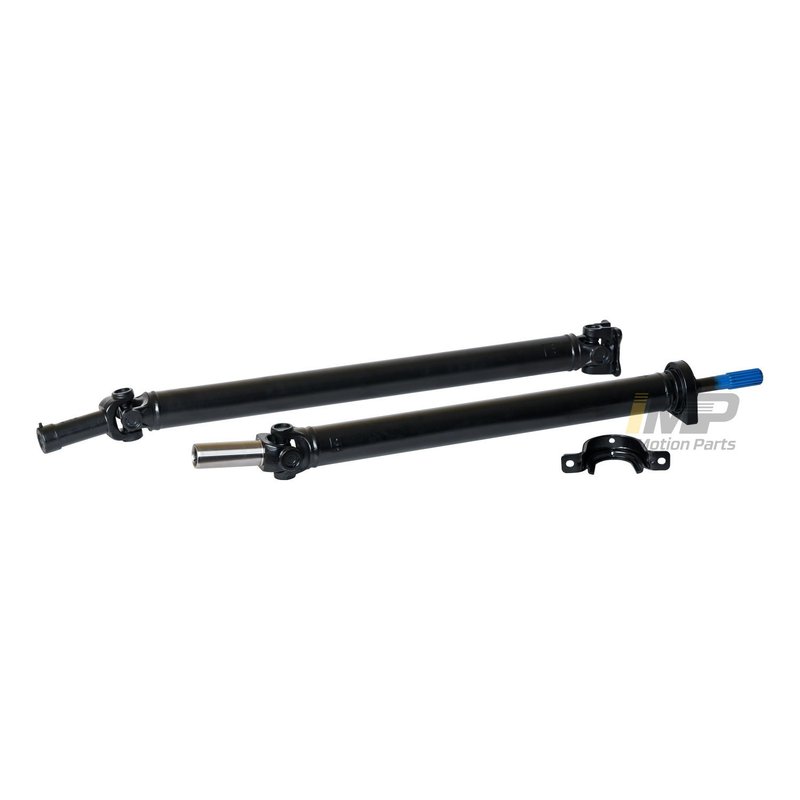

InMotion WDS36-809 Drive Shaft - Rear

Ford F-150 Rear Drive Shaft Overview

The InMotion WDS36-809 is a rear drive shaft for select Ford F-150 applications from 2009-2014. It is built with a 73 mm shaft diameter, 2 mm wall thickness, and a slip yoke design for driveline service where the original shaft has worn, bent, or developed vibration.

Use this Ford F-150 drive shaft when you need a direct replacement for rear driveline repair on supported truck configurations. The WDS36-809 measures 89.961 inches (2285 mm) in length and features adjustable overall length up to 60, with shaft material listed as 45,40Cr?SS400.

Key Features

• Rear drive shaft for Ford F-150 applications
• Part number WDS36-809
• Drive shaft length: 89.961 in. / 2285 mm
• Shaft diameter: 73 mm
• Wall thickness: 2 mm
• Slip yoke included in the design
• CV joints not included
• Axle nut not included
• Compatible with rear-position fitments listed below

Detailed Description

InMotion WDS36-809 is a rear driveline replacement for Ford F-150 trucks with confirmed fitment for 2012-2014 Standard Grade models, 2011 trucks built up to 09/15/2011, 2010 trucks with a 12 bolt differential cover, and 2009 trucks with a 78.8 inch bed. This part cross-references Dorman OE Solutions 936-809 and another listed interchange reference for the same application. If you are searching for a Ford F-150 rear drive shaft, WDS36-809 provides the dimensional and configuration details needed to match the original driveline setup.

What It Helps Fix

• Driveline vibration from a worn or out-of-balance shaft
• Clunking or driveline noise from shaft wear
• Damage from impact, corrosion, or bent tubing
• Loss of smooth power transfer to the rear axle
• Replacement needs after driveline service on supported Ford F-150 models

Installation Notes and Tips

Verify rear-position fitment, bed configuration, differential cover style, and build date before ordering. Confirm shaft length, slip yoke setup, and shaft diameter against the original part on the vehicle. Because CV joints and axle nut are not included, reuse or source any required related components separately as needed for the repair.

Quality Assurance

Built to published dimensional specifications for the listed Ford F-150 applications, including 89.961-inch overall length, 2285 mm length, and 73 mm shaft diameter. Confirm all fitment details against the vehicle before installation to ensure the correct rear drive shaft replacement.
