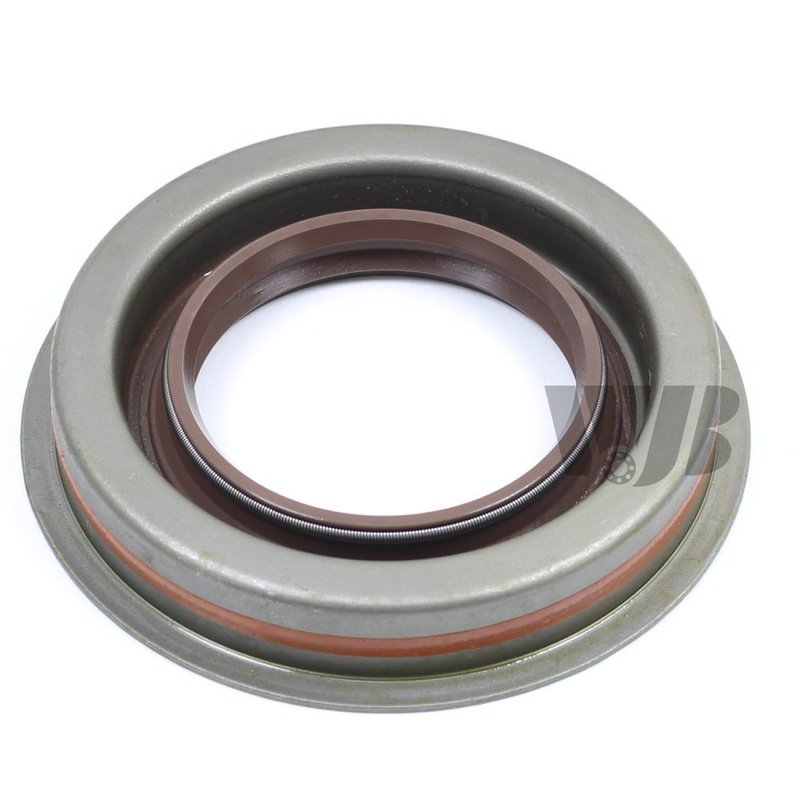

InMotion WS100712V Differential Pinion Seal

Differential Pinion Seal for Spicer Axles

The InMotion WS100712V differential pinion seal is built for axle assemblies that need a precise sealing surface at the pinion. Made from fluoro-elastomer, it helps keep contaminants out and gear oil in, supporting clean operation in demanding driveline conditions.

Use this seal for service work on Spicer 44, Spicer 44-1HD, Spicer 50, and Spicer 60 axle applications found in trucks and SUVs such as Chevrolet Silverado 1500, Ford F-250 Super Duty, and Jeep Wrangler.

Key Features

• Fluoro-elastomer construction for sealing performance in driveline environments
• Inside diameter: 1.874 in.
• Outside diameter: 3.163 in.
• Thickness: 0.5 in.
• Shaft diameter: 1.874 in.
• Housing bore: 3.159 in.
• Direct-fit sealing component for differential pinion service

Detailed Description

InMotion WS100712V is a differential pinion seal engineered to create a tight barrier at the pinion area of the axle housing. Its fluoro-elastomer material is selected for durability in the presence of gear oil, road debris, and moisture, helping maintain a reliable seal where the pinion shaft enters the differential. This makes it a practical replacement for axle service on vehicles including Chevrolet Silverado 1500, GMC Sierra 1500, Ford F-250 Super Duty, Nissan Frontier, and Jeep Grand Cherokee with the specified Spicer axle configurations. This part number, WS100712V, is also a useful reference when sourcing the correct seal for rear or front axle applications listed below.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Gear oil seepage at the differential pinion area
• Contamination entering the axle through a worn seal
• Seal wear from age, heat, and driveline movement
• Maintenance needs during differential service or axle rebuilds
• Noise or driveline concerns caused by low lubricant level from leaks

Installation Notes and Tips

Confirm axle type, position, and housing dimensions before installation. This seal is listed for rear, rear outer, and front applications depending on vehicle and axle configuration. Verify the shaft diameter and housing bore against the existing component, and inspect the pinion surface for wear or scoring before installing WS100712V. Proper installation and pinion preload checks are important during differential service.

Quality Assurance

InMotion manufactures this seal with precision-focused construction and high-quality materials for differential sealing service. WS100712V is intended for vehicles across the 2000-2017 model years listed in the fitment data, including applications for Chevrolet, GMC, Ford, Nissan, Jeep, Suzuki, INFINITI, and Dodge with the specified Spicer axle setups.

• Fits 2017 Chevrolet Express 2500, rear outer, with Spicer 60 Axle
• Fits 2017 GMC Savana 2500, rear outer, with Spicer 60 Axle
• Fits 2003-2016 Chevrolet Express 2500, rear, with Spicer 60 Axle
• Fits 2005-2016 Ford F-250 Super Duty, front, with Spicer 60-SF Axle
• Fits 2005-2016 Ford F-350 Super Duty, front, with Spicer 60-SF Axle
• Fits 2003-2016 GMC Savana 2500, rear, with Spicer 60 Axle
• Fits 2005-2016 Nissan Frontier, rear, with Spicer 44 Axle
• Fits 2004-2015 Nissan TITAN, rear, with Spicer 44 Axle
• Fits 2005-2015 Nissan Xterra, rear, with Spicer 44 Axle
• Fits 2005-2012 Nissan Pathfinder, rear, with Spicer 44 Axle
• Fits 2009-2012 Suzuki Equator, rear, with Spicer 44 Axle
• Fits 2004-2010 INFINITI QX56, rear, with Spicer 44 Axle
• Fits 2006 Jeep Commander, rear, with Spicer 44 Axle
• Fits 2000-2006 Jeep Grand Cherokee, rear, with Spicer 44 Axle
• Fits 2002-2006 Jeep TJ, rear, with Spicer 44-1HD Axle
• Fits 2002-2006 Jeep Wrangler, rear, with Spicer 44-1HD Axle
• Fits 2002-2005 Chevrolet Silverado 1500, rear, with Spicer 60 Axle
• Fits 2005 Chevrolet Silverado 1500 HD, rear, with Spicer 60 Axle
• Fits 2003 Chevrolet Silverado 1500 HD, rear, with Spicer 60 Axle
• Fits 2003-2005 Chevrolet Suburban 2500, rear, with Spicer 60 Axle
• Fits 2002-2005 Chevrolet Tahoe, rear, with Spicer 60 Axle
• Fits 2005 Ford Excursion, front, with Spicer 60-SF Axle
• Fits 2002-2005 GMC Sierra 1500, rear, with Spicer 60 Axle
• Fits 2005 GMC Sierra 1500 HD, rear, with Spicer 60 Axle
• Fits 2003 GMC Sierra 1500 HD, rear, with Spicer 60 Axle
• Fits 2002-2005 GMC Yukon, rear, with Spicer 60 Axle
• Fits 2003-2005 GMC Yukon XL 2500, rear, with Spicer 60 Axle
• Fits 2003-2004 Chevrolet Silverado 2500, rear, with Spicer 60 Axle
• Fits 2001-2004 Ford Excursion, front, with Spicer 60, Spicer 50 Axle
• Fits 2001-2004 Ford F-250 Super Duty, front, with Spicer 60, Axle
• Fits 2001-2004 Ford F-350 Super Duty, front, with Spicer 50, Axle
• Fits 2003-2004 GMC Sierra 2500, rear, with Spicer 60 Axle
• Fits 2001 Dodge Ram 2500, rear, with Spicer 60 Axle
• Fits 2001 Dodge Ram 3500 Van, rear, with Spicer 60 Axle
