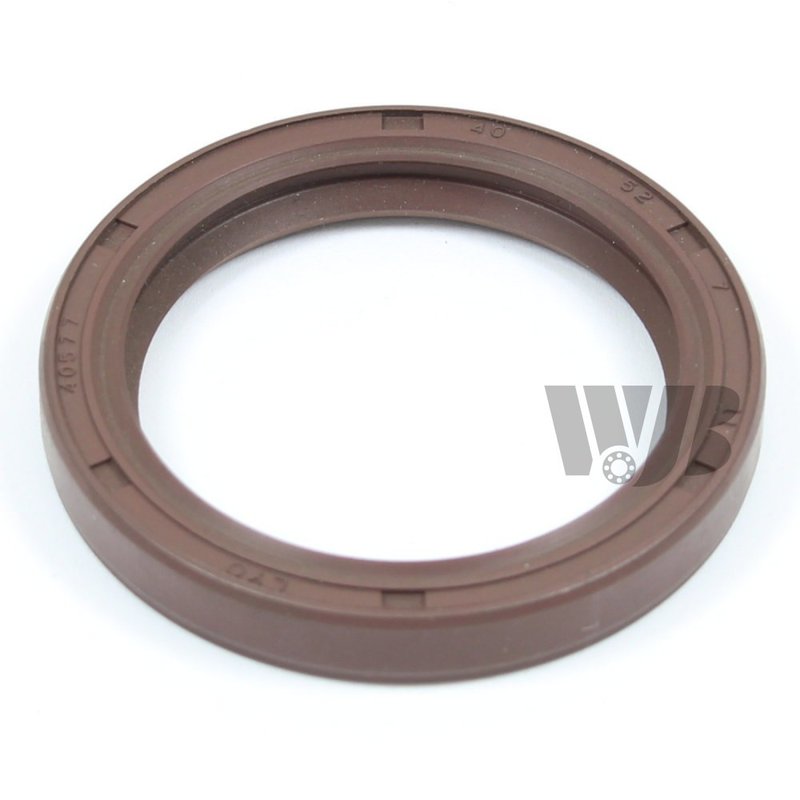

InMotion WS224053 Engine Crankshaft Seal - Front

Engine Crankshaft Seal for Honda and Acura Front Applications

InMotion WS224053 is a fluoro-elastomer engine seal built for front-position applications on select Honda, Acura, and Isuzu vehicles. It is engineered to create a secure barrier against contaminants and help reduce fluid leakage around the shaft interface.

Compatible With 1990-2002 Honda Accord, front; 1992-2001 Honda Prelude, front; 1997-1999 Acura CL, front; 1995-1998 Acura TL, front; 1995-1998 Honda Odyssey, front; and 1996-1999 Isuzu Oasis, front.

• Fluoro-elastomer construction for sealing performance in demanding engine environments
• Inside diameter: 1.575 in.; shaft diameter: 1.575 in.
• Outside diameter: 2.052 in.; housing bore: 2.047 in.
• Thickness and width: 0.276 in.
• Front-position fitment for select Honda, Acura, and Isuzu models
• Part number WS224053 for application matching and catalog lookup

Detailed Product Overview

This InMotion seal is specified around precise dimensional control, with matching inside diameter and shaft diameter measurements to support a consistent seal interface. The fluoro-elastomer material is selected for resistance in engine sealing environments where heat, oil exposure, and contamination control matter. For buyers searching for a Honda Accord front crankshaft seal, Honda Prelude front engine seal, or Acura TL front seal replacement, WS224053 provides a direct fitment reference for the listed vehicles.

Part number WS224053 also helps streamline ordering when cross-checking front engine sealing needs on Honda Accord, Honda Prelude, Acura CL, Acura TL, Honda Odyssey, and Isuzu Oasis applications.

What This Seal Helps Address

• Oil seepage at the front engine seal area
• Contaminant intrusion around the shaft opening
• Wear-related sealing loss from age and heat cycling
• Dimensional mismatch during seal replacement
• Service issues tied to front crankshaft sealing on listed vehicles

Installation Notes and Tips

Verify shaft diameter and housing bore dimensions before installation. Clean the sealing surface thoroughly, inspect for scoring or wear, and confirm the seal is seated evenly to avoid distortion. Use the vehicle service procedure for the specific Honda, Acura, or Isuzu application to ensure proper orientation and fit.

Quality Assurance

InMotion manufactures this seal with precision-focused construction and high-quality materials for consistent sealing performance in the specified front applications. Part number WS224053 is cataloged for direct application matching on the listed vehicles.
