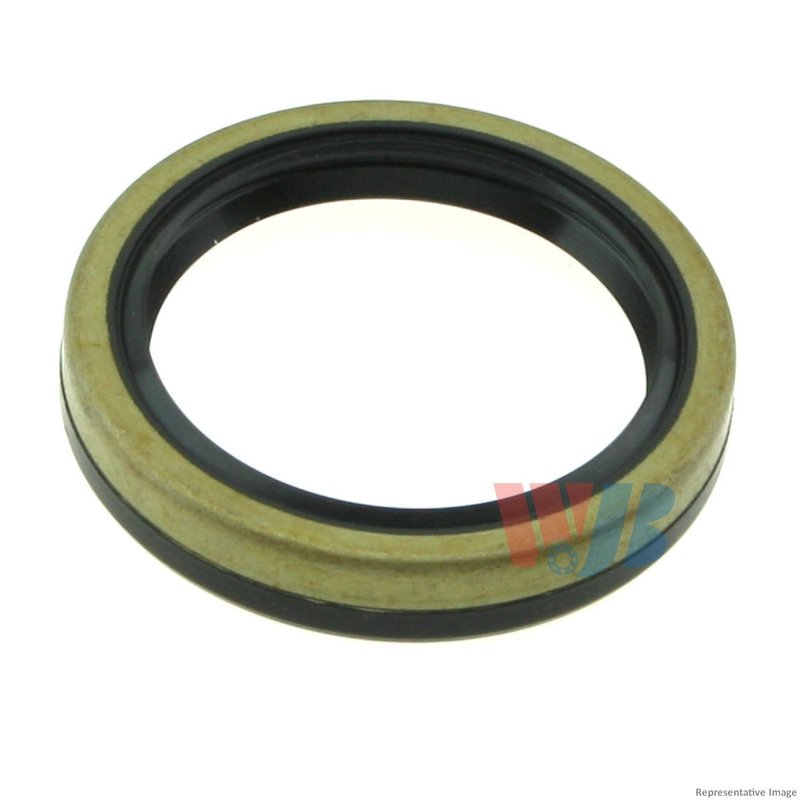

InMotion WS224520 Automatic Transmission Output Shaft Seal

Automatic Transmission Output Shaft Seal

InMotion WS224520 is a nitrile automatic transmission output shaft seal built to maintain a tight barrier at the shaft and housing interface. It helps keep contaminants out and transmission fluid in, supporting consistent operation in Audi, Porsche, and Volkswagen applications with the listed transmissions.

• Nitrile sealing material for dependable fluid control
• Inside diameter: 1.772 in.
• Outside diameter: 2.372 in.
• Housing bore: 2.362 in.
• Thickness/width: 0.394 in.
• Fits a wide range of Audi A4, A4 Quattro, S4, A6 Quattro, and Porsche Boxster applications with specified transmissions

Fitment Coverage

Compatible with select Audi A4 Quattro, Audi S4, Porsche Boxster, and Volkswagen Passat applications, including models using Getrag 466 AWD, Audi 01E, Audi 01W, Audi 012, Audi 01A, Audi 016, VW 090, VW 098, and related driveline configurations. Fits 2006-2012 Audi A4 Quattro, N/A; Fits 2008-2012 Audi R8, N/A; Fits 2005-2012 Audi S4, N/A; Fits 2008-2012 Audi S5, N/A; Fits 2009-2012 Porsche Boxster, N/A; Fits 2007 Porsche Boxster, N/A; Fits 2009-2012 Porsche Cayman, N/A; Fits 2006-2007 Porsche Cayman, N/A; Fits 2007-2008 Audi RS4, N/A; Fits 2008 Porsche Boxster, N/A; Fits 2000-2006 Porsche Boxster, N/A; Fits 2008 Porsche Cayman, N/A; Fits 2005 Audi A4, N/A; Fits 2002-2003 Audi A4, N/A; Fits 1999-2000 Audi A4, N/A; Fits 1996 Audi A4, N/A; Fits 2004-2005 Audi A4 Quattro, N/A; Fits 2002 Audi A4 Quattro, N/A; Fits 2001-2005 Audi Allroad Quattro, N/A; Fits 2005 Volkswagen Passat, N/A; Fits 1998-1999 Volkswagen Passat, N/A; Fits 2004 Audi A4, N/A; Fits 2001 Audi A4, N/A; Fits 1997-1998 Audi A4, N/A; Fits 2002-2004 Audi A6 Quattro, N/A; Fits 2000 Audi A6 Quattro, N/A; Fits 1997-2004 Audi A8 Quattro, Rear Right; Fits 2003-2004 Audi RS6, Rear Right; Fits 2004 Audi S4, Rear Right; Fits 2003-2004 Volkswagen Passat, N/A; Fits 2000 Volkswagen Passat, N/A; Fits 2003 Audi A4 Quattro, N/A; Fits 1996-2001 Audi A4 Quattro, N/A; Fits 2002-2003 Audi S6, Rear Right; Fits 2001-2003 Audi S8, Rear Right; Fits 1999-2003 Volkswagen EuroVan, N/A; Fits 1995-1997 Volkswagen EuroVan, N/A; Fits 2000-2002 Audi S4, N/A; Fits 1992-1994 Audi S4, N/A; Fits 2001-2002 Volkswagen Passat, N/A; Fits 2001 Audi A6 Quattro, N/A; Fits 1995 Audi A6 Quattro, N/A; Fits 1996-1999 Audi A6 Quattro, Rear Right; Fits 1997-1999 Audi A8, Rear Right; Fits 1995-1997 Audi S6, N/A; Fits 1995 Audi 90, N/A; Fits 1989-1991 Audi 90, N/A; Fits 1988-1995 Audi 90 Quattro, N/A; Fits 1995 Audi A6, N/A; Fits 1993-1994 Audi 100, N/A; Fits 1991 Audi 100, N/A; Fits 1989 Audi 100, N/A; Fits 1989-1994 Audi 100 Quattro, N/A; Fits 1993-1994 Audi 90, N/A; Fits 1988 Audi 90, N/A; Fits 1990-1994 Audi V8 Quattro, N/A; Fits 1992-1994 Volkswagen EuroVan, N/A; Fits 1992 Audi 100, N/A; Fits 1990 Audi 100, N/A; Fits 1991-1992 Audi 80, N/A; Fits 1988 Audi 80, N/A; Fits 1988-1992 Audi 80 Quattro, N/A; Fits 1989-1991 Audi 200, N/A; Fits 1989-1991 Audi 200 Quattro, N/A; Fits 1990-1991 Audi Coupe Quattro, N/A; Fits 1983-1991 Porsche 944, N/A; Fits 1980-1991 Volkswagen Vanagon, N/A; Fits 1989-1990 Audi 80, N/A; Fits 1986-1988 Audi 5000 Quattro, N/A; Fits 1987-1988 Porsche 924, N/A; Fits 1979-1982 Porsche 924, N/A; Fits 1983-1988 Volkswagen Quantum, N/A; Fits 1987 Audi 4000, N/A; Fits 1986-1987 Audi 4000 Quattro, N/A; Fits 1984-1987 Audi Coupe, N/A; Fits 1986 Audi 4000, N/A; Fits 1980-1984 Audi 4000, N/A; Fits 1984-1986 Audi Quattro, N/A; Fits 1985 Audi 4000, N/A; Fits 1984-1985 Audi 4000 Quattro, N/A; Fits 1981-1983 Audi Coupe, N/A; Fits 1983 Audi Quattro, N/A; Fits 1981-1983 Porsche 911, N/A; Fits 1969-1978 Porsche 911, N/A; Fits 1982 Volkswagen Quantum, N/A; Fits 1977-1978 Porsche 924, N/A.

What It Helps Address

• Transmission fluid seepage at the output shaft area
• Contamination entering the differential or transmission housing
• Wear-related sealing loss from age and heat cycling
• Moisture intrusion around the shaft seal interface
• Service issues on Audi, Porsche, and Volkswagen driveline assemblies

Installation Notes

Confirm the transmission type and position before installation, since this seal is listed for multiple applications including N/A and Rear Right locations. Inspect the shaft surface and housing bore for scoring, corrosion, or debris before pressing in the new seal. Clean mating surfaces thoroughly and verify the seal seats squarely to maintain proper sealing contact.

Quality Assurance

InMotion WS224520 uses nitrile sealing material and precision dimensions to support a secure fit in the specified applications. The part number WS224520 is the reference to verify against your transmission and vehicle listing before ordering.
