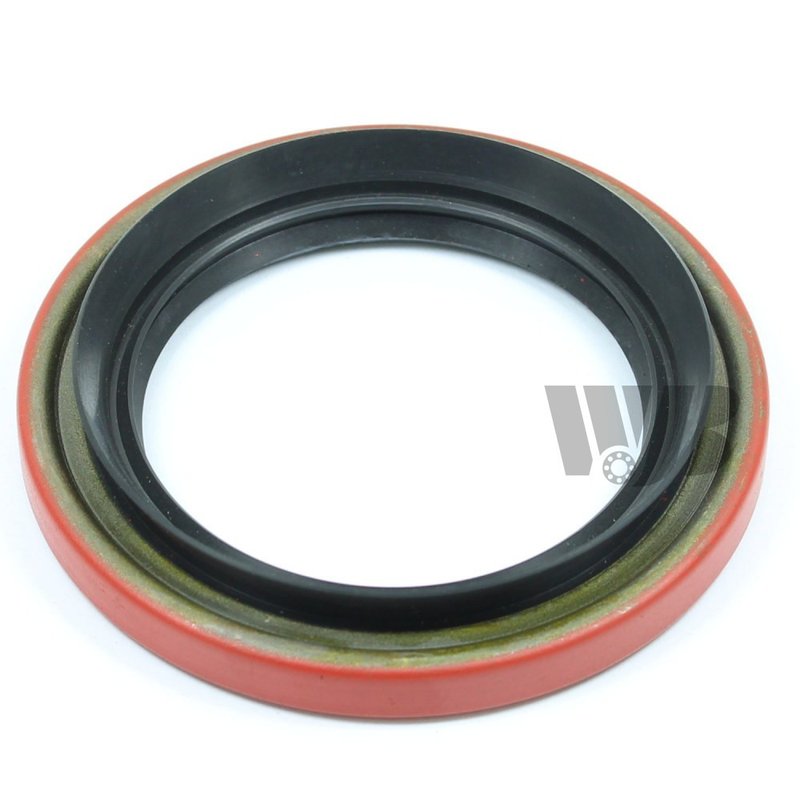

InMotion WS225275 Wheel Seal - Rear Outer

Wheel Seal for Differential Pinion Service

The InMotion WS225275 wheel seal is built with nitrile material to create a secure sealing barrier against moisture and debris. It is sized for a 2.047 in inside diameter, 2.957 in outside diameter, and 0.295 in width to support a precise fit in the differential pinion sealing area.

• Nitrile construction for sealing performance in driveline service
• Inside diameter: 2.047 in
• Outside diameter: 2.957 in
• Width: 0.295 in
• Shaft diameter: 2.047 in
• Housing bore: 2.953 in
• Compatible With rear outer applications on select Lexus and Toyota vehicles

Fitment Details

• Fits 1999-2003 Lexus RX300, rear outer
• Fits 2001-2003 Toyota Highlander, rear outer
• Fits 1988-1993 Toyota Celica, rear outer
• Fits 1988-1991 Toyota Camry, rear outer

Use this seal when servicing the differential pinion area on vehicles such as the Lexus RX300 and Toyota Highlander, or when replacing the rear outer seal on Toyota Celica and Toyota Camry applications. The InMotion WS225275 is engineered to help maintain a tight seal around sensitive internal components, reducing the chance of contamination and fluid loss in the differential assembly. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Repair Issues

• Gear oil seepage at the differential pinion seal
• Contamination entering the pinion area from road debris or moisture
• Seal wear from age, heat, and driveline movement
• Loss of sealing integrity during differential service

Installation Notes and Tips

Verify shaft diameter and housing bore before installation to confirm the seal dimensions match the application. Clean the sealing surface thoroughly, inspect the pinion area for wear or scoring, and install the seal squarely to avoid distortion. Confirm rear outer fitment for the listed Lexus RX300, Toyota Highlander, Toyota Celica, and Toyota Camry applications before reassembly.

Quality Assurance

InMotion manufactures this seal with precision-focused dimensions and nitrile material selection for driveline sealing service. The WS225275 is designed to support reliable sealing performance in the differential pinion area when matched to the confirmed vehicle applications.
