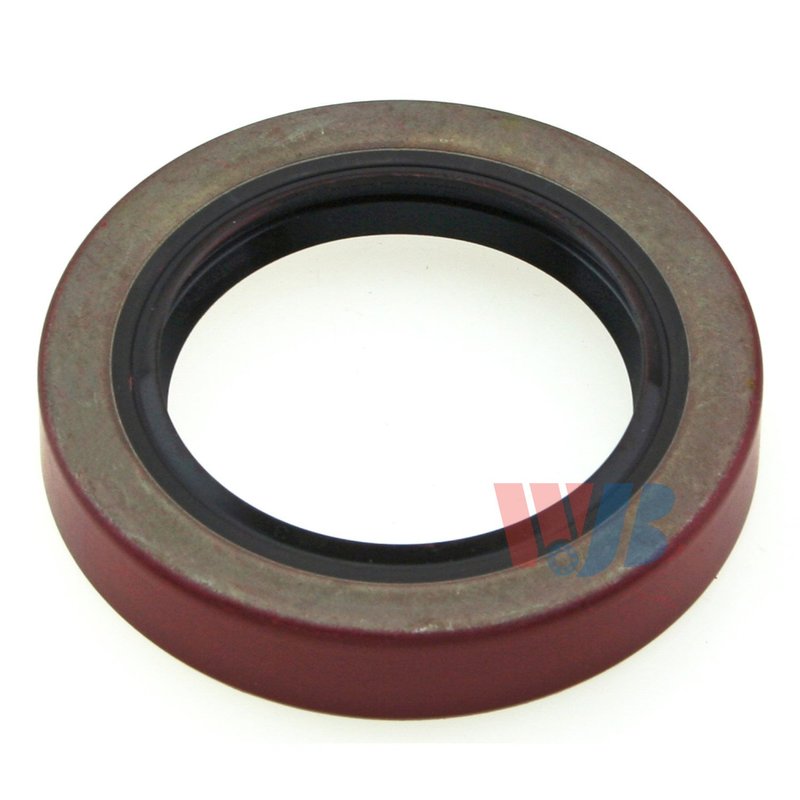

InMotion WS470331N Differential Pinion Seal - Front Outer or Rear Outer

Differential Pinion Seal for Jeep Axles

The InMotion WS470331N differential pinion seal is built to create a tight barrier at the pinion area, helping keep contaminants out and gear oil in. It is a direct-fit sealing component for select Jeep rear axle applications, including Wrangler, Cherokee, Grand Cherokee, Comanche, Wagoneer, CJ5, CJ7, Scrambler, and Grand Wagoneer models with the specified axle configurations.

Key Features

• Polyacrylate sealing material for durable resistance in driveline service
• Inside diameter: 1.843 in.
• Outside diameter: 2.754 in.
• Thickness: 0.5 in.
• Shaft diameter: 1.843 in.
• Housing bore: 2.75 in.
• Designed for rear outer applications on compatible Jeep axle setups
• Part number: WS470331N

Detailed Description

InMotion WS470331N is a differential pinion seal engineered for precise sealing performance in driveline and axle service. The polyacrylate construction is selected for sealing durability, while the listed dimensions help ensure proper seating at the housing bore and shaft interface. This seal is specified for rear outer positions on Jeep vehicles equipped with Spicer 35C Axle or AMC 20 Axle configurations, making it a practical replacement for service work on older Jeep driveline systems. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Compatible With 1997-2007 Jeep Wrangler, rear outer with Spicer 35C Axle; 1987-1995 Jeep Wrangler, rear outer with Spicer 35C Axle; 1984-2001 Jeep Cherokee, rear outer with Spicer 35C Axle; 1993-1997 Jeep Grand Cherokee, rear outer with Spicer 35C Axle; 1986-1992 Jeep Comanche, rear outer with Spicer 35C Axle; 1984-1990 Jeep Wagoneer, rear outer with Spicer 35C Axle; 1976-1986 Jeep CJ7, rear outer with AMC 20 Axle; 1984-1985 Jeep Grand Wagoneer, rear outer with AMC 20 Axle; 1981-1985 Jeep Scrambler, rear outer with AMC 20 Axle; 1976-1983 Jeep CJ5, rear outer with AMC 20 Axle; 1980-1983 Jeep Wagoneer, rear outer with AMC 20 Axle.

What It Helps Address

• Gear oil seepage at the differential pinion area
• Contamination from dirt, debris, and moisture entering the axle assembly
• Seal wear that can lead to driveline fluid loss
• Service issues on Jeep rear axle pinion sealing points
• Maintenance needs on aging Spicer 35C and AMC 20 axle setups

Installation Notes and Tips

Verify axle type, position, and seal dimensions before installation. Inspect the pinion surface and housing bore for wear, scoring, or corrosion before pressing in the new seal. Clean the sealing area thoroughly and confirm the seal is seated evenly to help maintain proper contact at the pinion shaft.

Quality Assurance

InMotion manufactures this seal with precision-focused construction and material selection for differential service. The part is built to meet the dimensional requirements listed above for the specified Jeep applications.
