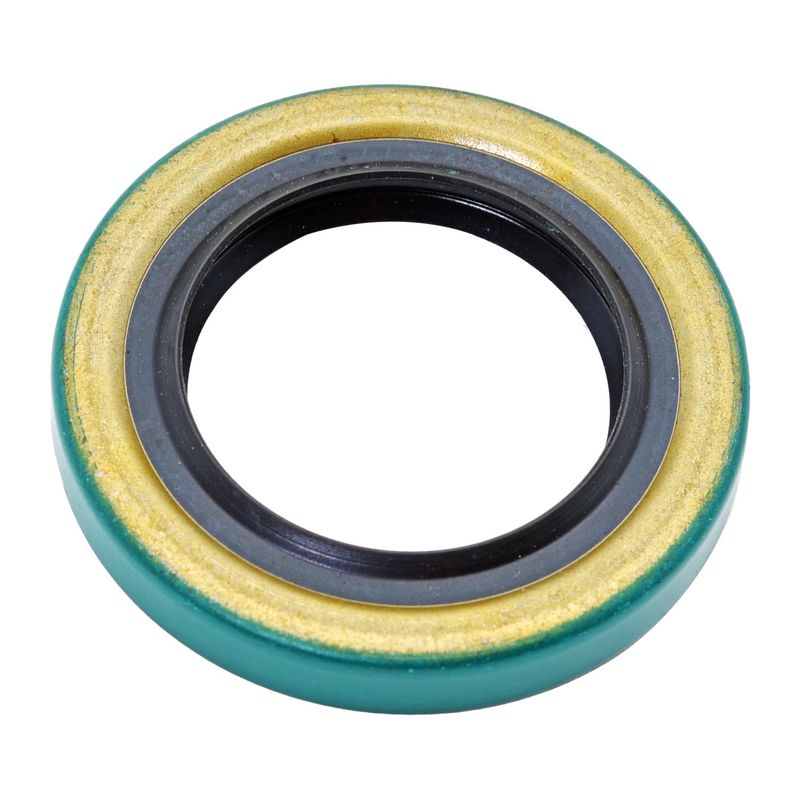

InMotion WS471192 Wheel Seal - Front Inner or Rear
| Brand | InMotion WS471192 |
|---|---|
| Position | Front Inner and Rear |
| Material | Nitrile |
| Inside Diameter | 1.375 |
| Width | 0.312 |
| Outside Diameter | 2.129 |
| Shaft Diameter | 1.375 |
| Housing Bore | 2.125 |
| Fits | —109 vehicles |
Nitrile construction. Provides dependable sealing performance in driveline service.
Precision dimensions. Sized for accurate fitment with the shaft and housing bore.
Leak control. Helps keep contaminants out and fluid where it belongs.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Overview
The InMotion WS471192 wheel seal is built to create a secure barrier that keeps contaminants away from sensitive differential pinion components. With nitrile construction and precise dimensions, it helps maintain a tight seal and reduce fluid loss in driveline service.
Use this seal when servicing a differential pinion assembly that requires a 1.375-inch shaft diameter and a 2.125-inch housing bore. The WS471192 is a practical replacement for applications that need controlled sealing performance in demanding driving conditions.
Key Features
- Nitrile material for sealing performance in driveline applications
- Precision dimensions: 1.375-inch inside diameter, 0.312-inch width, and 2.129-inch outside diameter
- Designed to help block debris and moisture from internal differential components
- Supports leak control in differential pinion service
- InMotion part number WS471192 for catalog and service reference
Detailed Description
InMotion WS471192 is a differential pinion seal engineered for a secure fit and dependable sealing at the pinion area. Its nitrile construction is selected for sealing durability, while the measured dimensions help ensure proper alignment with the shaft and housing bore. For technicians and vehicle owners addressing driveline seepage or contamination concerns, this seal provides a direct service solution for maintaining differential integrity. The WS471192 is a useful choice when replacing a worn seal during differential maintenance on vehicles such as the Honda Civic, where precise sealing matters for long-term driveline protection.
Common Uses
- Stops gear oil seepage at the differential pinion area
- Helps keep dirt and moisture out of internal driveline components
- Addresses seal wear that can lead to contamination
- Supports repair of a leaking or damaged pinion seal
Installation Notes
Confirm shaft diameter and housing bore measurements before installation to verify proper fit. Inspect the pinion surface for wear or scoring, and replace any damaged sealing surfaces before installing the new seal. Clean the sealing area thoroughly so the seal seats evenly and maintains contact under operating conditions.
Quality Assurance
InMotion manufactures this seal with precision-focused construction and high-quality materials to support reliable differential service. Part number WS471192 is identified for service reference and ordering accuracy.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1979 | MG | Midget | Front Inner | — |
| 1978 | MG | Midget | Front Inner | — |
| 1977 | MG | Midget | Front Inner | — |
| 1976 | MG | Midget | Front Inner | — |
| 1975 | MG | Midget | Front Inner | — |
| 1974 | MG | Midget | Front Inner | — |
| 1973 | MG | Midget | Front Inner | — |
| 1972 | MG | Midget | Front Inner | — |
| 1971 | MG | Midget | Front Inner | — |
| 1970 | Austin Healey | Sprite | Front Inner | — |
| 1970 | MG | Midget | Front Inner | — |
| 1969 | Austin Healey | Sprite | Front Inner | — |
| 1969 | MG | 1300 | Front Inner | — |
| 1969 | MG | Midget | Front Inner | — |
| 1968 | Austin Healey | Sprite | Front Inner | — |
| 1968 | MG | 1300 | Front Inner | — |
| 1968 | MG | Midget | Front Inner | — |
| 1967 | Austin Healey | Sprite | Front Inner | — |
| 1967 | MG | Midget | Front Inner | — |
| 1966 | Austin Healey | Sprite | Front Inner | — |
| 1966 | MG | Midget | Front Inner | — |
| 1966 | Volvo | 1800 | Rear | with ENV Differential |
| 1965 | Austin Healey | Sprite | Front Inner | — |
| 1965 | MG | Midget | Front Inner | — |
| 1965 | Volvo | 122 | Rear | with ENV Differential |
| 1965 | Volvo | 1800 | Rear | with ENV Differential |
| 1965 | Volvo | 544 | Rear | with ENV Differential |
| 1964 | Austin Healey | Sprite | Front Inner | — |
| 1964 | MG | Midget | Front Inner | — |
| 1964 | Volvo | 122 | Rear | with ENV Differential |
| 1964 | Volvo | 1800 | Rear | with ENV Differential |
| 1964 | Volvo | 544 | Rear | with ENV Differential |
| 1963 | Austin Healey | Sprite | Front Inner | — |
| 1963 | MG | Midget | Front Inner | — |
| 1963 | Volvo | 122 | Rear | with ENV Differential |
| 1963 | Volvo | 1800 | Rear | with ENV Differential |
| 1963 | Volvo | 544 | Rear | with ENV Differential |
| 1962 | Austin | A40 | Front Inner | — |
| 1962 | Austin Healey | Sprite | Front Inner | — |
| 1962 | Metropolitan | Series 1500 | Front Inner | — |
| 1962 | MG | Midget | Front Inner | — |
| 1962 | Morris | Minor | Front Inner | — |
| 1962 | Volvo | 122 | Rear | with ENV Differential |
| 1962 | Volvo | 1800 | Rear | with ENV Differential |
| 1962 | Volvo | 544 | Rear | with ENV Differential |
| 1961 | Austin | A40 | Front Inner | — |
| 1961 | Austin Healey | Sprite | Front Inner | — |
| 1961 | Metropolitan | Series 1500 | Front Inner | — |
| 1961 | Morris | Minor | Front Inner | — |
| 1961 | Volvo | 122 | Rear | with ENV Differential |
| 1961 | Volvo | 1800 | Rear | with ENV Differential |
| 1961 | Volvo | 444 | Rear | with ENV Differential |
| 1961 | Volvo | 445 | Rear | with ENV Differential |
| 1961 | Volvo | 544 | Rear | with ENV Differential |
| 1960 | Austin | A40 | Front Inner | — |
| 1960 | Austin Healey | Sprite | Front Inner | — |
| 1960 | Metropolitan | Series 1500 | Front Inner | — |
| 1960 | MG | Midget | Front Inner | — |
| 1960 | Morris | Minor | Front Inner | — |
| 1960 | Volvo | 122 | Rear | with ENV Differential |
| 1960 | Volvo | 444 | Rear | with ENV Differential |
| 1960 | Volvo | 445 | Rear | with ENV Differential |
| 1960 | Volvo | 544 | Rear | with ENV Differential |
| 1959 | Austin | A35 | Front Inner | — |
| 1959 | Austin | A40 | Front Inner | — |
| 1959 | Austin Healey | Sprite | Front Inner | — |
| 1959 | Metropolitan | Series 1500 | Front Inner | — |
| 1959 | Morris | Minor | Front Inner | — |
| 1959 | Volvo | 122 | Rear | with ENV Differential |
| 1959 | Volvo | 444 | Rear | with ENV Differential |
| 1959 | Volvo | 445 | Rear | with ENV Differential |
| 1959 | Volvo | 544 | Rear | with ENV Differential |
| 1958 | Austin | A35 | Front Inner | — |
| 1958 | Austin | A40 | Front Inner | — |
| 1958 | Austin | Cambridge | Front Inner | — |
| 1958 | Austin Healey | Sprite | Front Inner | — |
| 1958 | Metropolitan | Series 1500 | Front Inner | — |
| 1958 | Morris | Minor | Front Inner | — |
| 1958 | Volvo | 444 | Rear | with ENV Differential |
| 1958 | Volvo | 445 | Rear | with ENV Differential |
| 1958 | Volvo | 544 | Rear | with ENV Differential |
| 1957 | Austin | A35 | Front Inner | — |
| 1957 | Austin | A40 | Front Inner | — |
| 1957 | Metropolitan | Series 1500 | Front Inner | — |
| 1957 | Metropolitan | Series B | Front Inner | — |
| 1957 | Morris | Minor | Front Inner | — |
| 1957 | Volvo | 444 | Rear | with ENV Differential |
| 1957 | Volvo | 445 | Rear | with ENV Differential |
| 1956 | Austin | A35 | Front Inner | — |
| 1956 | Metropolitan | Series 1500 | Front Inner | — |
| 1956 | Metropolitan | Series B | Front Inner | — |
| 1956 | Morris | Minor | Front Inner | — |
| 1956 | Volvo | 444 | Rear | with ENV Differential |
| 1956 | Volvo | 445 | Rear | with ENV Differential |
| 1955 | Metropolitan | Series B | Front Inner | — |
| 1955 | Morris | Minor | Front Inner | — |
| 1955 | Volvo | 444 | Rear | with ENV Differential |
| 1954 | Metropolitan | Series A | Front Inner | — |
| 1954 | Morris | Minor | Front Inner | — |
| 1954 | Volvo | 444 | Rear | with ENV Differential |
| 1953 | Morris | Minor | Front Inner | — |
| 1953 | Volvo | 444 | Rear | with ENV Differential |
| 1952 | Volvo | 444 | Rear | with ENV Differential |
| 1951 | Volvo | 444 | Rear | with ENV Differential |
| 1950 | Volvo | 444 | Rear | with ENV Differential |
| 1949 | Volvo | PV 444 | Rear | with ENV Differential |
| 1948 | Volvo | PV 444 | Rear | with ENV Differential |
| 1947 | Volvo | PV 444 | Rear | with ENV Differential |
| 1946 | Volvo | PV 444 | Rear | with ENV Differential |
| No rows match your filter. | ||||
