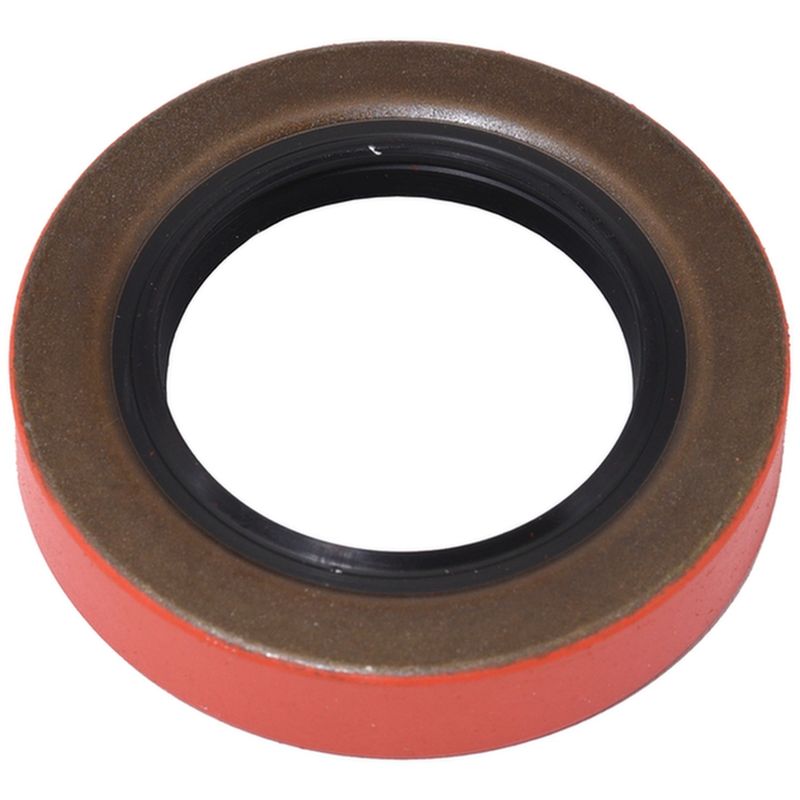

InMotion WS472635 Transfer Case Output Shaft Seal - Front or Rear
OE Quality 60-Day Returns
InMotion

InMotion WS472635 Transfer Case Output Shaft Seal - Front or Rear

Brand InMotion WS472635
Position Front and Rear
Inside Diameter 1.552
Thickness 0.5
Outside Diameter 2.5059999999999998
Shaft Diameter 1.552
Sealing Material Nitrile
Housing Bore 2.5019999999999998
Fits Chevrolet, GMC, International, Jeep, and Willys · 142 vehicles

Nitrile sealing material. Provides dependable resistance for transfer case sealing service.

Precision dimensions. Supports a secure shaft and housing fit in service applications.

Leak control. Helps keep contaminants out and lubricant in.

$15.29Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $15.29
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Transfer Case Output Shaft Seal options

Transfer Case Output Shaft Seal Overview

InMotion WS472635 is a transfer case output shaft seal built to keep contaminants out and fluid in. It uses nitrile sealing material and precise dimensions for a secure fit in supported applications.

Fits a wide range of classic 4x4 applications, including Jeep CJ5, Jeep CJ6, and Chevrolet K10 Pickup configurations listed below. The WS472635 seal is specified for front and rear positions depending on the vehicle and transfer case setup.

Key Features

  • Nitrile sealing material for dependable fluid control.
  • Precision dimensions for proper shaft and housing engagement.
  • Helps block dirt, moisture, and debris from entering the assembly.
  • Supports leak control in transfer case service applications.
  • Fits multiple vintage Chevrolet, GMC, International, Jeep, and Willys applications.

Detailed Description

The InMotion WS472635 transfer case output shaft seal is engineered for service in older 4x4 driveline systems that use a Spicer 18 transfer case in many of the listed applications. Its nitrile construction and measured inside diameter, outside diameter, thickness, shaft diameter, and housing bore help provide a tight sealing interface where the output shaft passes through the case. This part number, WS472635, is used across a broad range of classic truck and utility platforms, including Chevrolet Blazer, GMC K15/K1500 Pickup, and Jeep CJ5 applications.

This seal is intended for buyers replacing a worn transfer case output shaft seal that may be allowing gear oil seepage, contamination intrusion, or reduced sealing performance around the shaft opening. The WS472635 part number appears in fitments for front and rear positions, so the exact application should be matched to the vehicle and transfer case configuration before installation. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Service Issues

  • Fluid leakage at the transfer case output shaft.
  • Contamination entering the transfer case through a worn seal.
  • Seal hardening, cracking, or wear from age and heat.
  • Reduced sealing performance after driveline service.
  • Noise or driveline concerns related to low lubricant level.

Installation Notes

Confirm the transfer case type, shaft diameter, and housing bore before installation. Match the position and notes in the fitment data to the vehicle configuration, especially where Spicer 18 transfer case usage is specified. Clean the sealing surface thoroughly and inspect the shaft for wear or scoring before installing the new seal.

Quality Assurance

InMotion manufactures this seal with precision-focused construction and high-quality materials for reliable sealing performance in transfer case service.

This part fits 142 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelDrive TypePositionNotes
1972ChevroletBlazer4WDFrontwith Spicer 18 Transfer Case
1972ChevroletK10 Pickup—Front—
1972ChevroletK10 Suburban—Frontwith Spicer 18 Transfer Case
1972ChevroletK20 Pickup—Frontwith Spicer 18 Transfer Case
1972ChevroletK20 Suburban—Front—
1972ChevroletK30 Pickup—Frontwith Spicer 18 Transfer Case
1972GMCK15/K1500 Pickup—Rearwith Spicer 18 Transfer Case
1972GMCK15/K1500 Suburban—Frontwith Spicer 18 Transfer Case
1972GMCK25/K2500 Pickup—Rearwith Spicer 18 Transfer Case
1972GMCK35/K3500 Pickup—Frontwith Spicer 18 Transfer Case
1972InternationalScout II—Frontwith Spicer 18 Transfer Case
1971ChevroletBlazer4WDFrontwith Spicer 18 Transfer Case
1971ChevroletK10 Pickup—Front—
1971ChevroletK10 Suburban—Frontwith Spicer 18 Transfer Case
1971ChevroletK20 Pickup—Frontwith Spicer 18 Transfer Case
1971ChevroletK20 Suburban—Front—
1971ChevroletK30 Pickup—Frontwith Spicer 18 Transfer Case
1971GMCK15/K1500 Pickup—Rearwith Spicer 18 Transfer Case
1971GMCK15/K1500 Suburban—Frontwith Spicer 18 Transfer Case
1971GMCK25/K2500 Pickup—Rearwith Spicer 18 Transfer Case
1971GMCK35/K3500 Pickup—Frontwith Spicer 18 Transfer Case
1971InternationalScout II—Frontwith Spicer 18 Transfer Case
1971JeepCJ5—Frontwith Spicer 18 Transfer Case
1971JeepCJ6—Frontwith Spicer 18 Transfer Case
1970ChevroletBlazer4WDFrontwith Spicer 18 Transfer Case
1970ChevroletK10 Pickup—Front—
1970ChevroletK10 Suburban—Frontwith Spicer 18 Transfer Case
1970ChevroletK20 Pickup—Frontwith Spicer 18 Transfer Case
1970ChevroletK20 Suburban—Front—
1970ChevroletK30 Pickup—Frontwith Spicer 18 Transfer Case
1970GMCK15/K1500 Pickup—Rearwith Spicer 18 Transfer Case
1970GMCK15/K1500 Suburban—Frontwith Spicer 18 Transfer Case
1970GMCK25/K2500 Pickup—Rearwith Spicer 18 Transfer Case
1970GMCK35/K3500 Pickup—Frontwith Spicer 18 Transfer Case
1970InternationalScout 800—Front—
1970JeepCJ5—Frontwith Spicer 18 Transfer Case
1970JeepCJ6—Frontwith Spicer 18 Transfer Case
1969ChevroletBlazer4WDFrontwith Spicer 18 Transfer Case
1969ChevroletK10 Pickup—Front—
1969ChevroletK10 Suburban—Frontwith Spicer 18 Transfer Case
1969ChevroletK20 Pickup—Frontwith Spicer 18 Transfer Case
1969ChevroletK20 Suburban—Front—
1969ChevroletK30 Pickup—Frontwith Spicer 18 Transfer Case
1969GMCK15/K1500 Pickup—Rearwith Spicer 18 Transfer Case
1969GMCK15/K1500 Suburban—Frontwith Spicer 18 Transfer Case
1969GMCK25/K2500 Pickup—Rearwith Spicer 18 Transfer Case
1969GMCK35/K3500 Pickup—Frontwith Spicer 18 Transfer Case
1969InternationalScout 800—Front—
1969JeepCJ5—Frontwith Spicer 18 Transfer Case
1969JeepCJ6—Frontwith Spicer 18 Transfer Case
1969JeepUniversal Truck—Front—
1968ChevroletK30 Pickup—Frontwith Spicer 18 Transfer Case
1968GMCK35/K3500 Pickup—Frontwith Spicer 18 Transfer Case
1968InternationalScout 800—Front—
1968JeepCJ5—Frontwith Spicer 18 Transfer Case
1968JeepCJ5A—Front—
1968JeepCJ6—Frontwith Spicer 18 Transfer Case
1968JeepCJ6A—Frontwith Spicer 18 Transfer Case
1968JeepUniversal Truck—Front—
1967InternationalScout 800—Front—
1967JeepCJ5—Frontwith Spicer 18 Transfer Case
1967JeepCJ5A—Front—
1967JeepCJ6—Frontwith Spicer 18 Transfer Case
1967JeepCJ6A—Frontwith Spicer 18 Transfer Case
1967JeepUniversal Truck—Front—
1966InternationalScout 800—Front—
1966JeepCJ3—Front—
1966JeepCJ5—Frontwith Spicer 18 Transfer Case
1966JeepCJ5A—Front—
1966JeepCJ6—Frontwith Spicer 18 Transfer Case
1966JeepCJ6A—Frontwith Spicer 18 Transfer Case
1966JeepFC150—Frontwith Spicer 18 Transfer Case
1966JeepFC170—Front—
1966JeepFC170HD—Frontwith Spicer 18 Transfer Case
1966JeepUniversal Truck—Front—
1965JeepCJ3—Front—
1965JeepCJ5—Frontwith Spicer 18 Transfer Case
1965JeepCJ6—Frontwith Spicer 18 Transfer Case
1965JeepFC150—Frontwith Spicer 18 Transfer Case
1965JeepFC170—Front—
1965JeepFC170HD—Frontwith Spicer 18 Transfer Case
1965JeepUniversal Truck—Front—
1964JeepCJ3—Front—
1964JeepCJ5—Frontwith Spicer 18 Transfer Case
1964JeepCJ6—Frontwith Spicer 18 Transfer Case
1964JeepFC150—Frontwith Spicer 18 Transfer Case
1964JeepFC170—Front—
1964JeepFC170HD—Frontwith Spicer 18 Transfer Case
1964JeepUniversal Truck—Front—
1963JeepCJ3—Front—
1963JeepCJ5—Frontwith Spicer 18 Transfer Case
1963JeepCJ6—Frontwith Spicer 18 Transfer Case
1963JeepFC150—Frontwith Spicer 18 Transfer Case
1963JeepFC170—Front—
1963JeepFC170HD—Frontwith Spicer 18 Transfer Case
1963JeepUniversal Truck—Front—
1962JeepCJ3—Front—
1962JeepCJ5—Frontwith Spicer 18 Transfer Case
1962JeepCJ6—Frontwith Spicer 18 Transfer Case
1962JeepFC150—Frontwith Spicer 18 Transfer Case
1962JeepFC170—Front—
1962JeepUniversal Truck—Front—
1961JeepCJ3—Front—
1961JeepCJ5—Frontwith Spicer 18 Transfer Case
1961JeepCJ6—Frontwith Spicer 18 Transfer Case
1961JeepFC150—Frontwith Spicer 18 Transfer Case
1961JeepFC170—Front—
1961JeepUniversal Truck—Front—
1960JeepCJ3—Front—
1960JeepCJ5—Frontwith Spicer 18 Transfer Case
1960JeepCJ6—Frontwith Spicer 18 Transfer Case
1960JeepFC150—Frontwith Spicer 18 Transfer Case
1960JeepFC170—Front—
1959JeepCJ3—Front—
1959JeepCJ5—Frontwith Spicer 18 Transfer Case
1959JeepCJ6—Frontwith Spicer 18 Transfer Case
1959JeepFC150—Frontwith Spicer 18 Transfer Case
1959JeepFC170—Front—
1958JeepFC150—Frontwith Spicer 18 Transfer Case
1958JeepFC170—Front—
1958JeepWillys—Front—
1957JeepFC150—Frontwith Spicer 18 Transfer Case
1957JeepFC170—Front—
1957JeepWillys—Front—
1956Jeep475—Front—
1956JeepWillys—Front—
1955JeepWillys—Front—
1954JeepWillys—Front—
1953JeepWillys—Front—
1953WillysStation Wagon—Frontwith Spicer 18 Transfer Case
1952JeepWillys—Front—
1952WillysStation Wagon—Frontwith Spicer 18 Transfer Case
1951JeepWillys—Front—
1950JeepWillys—Front—
1949JeepWillys—Front—
1948JeepWillys—Front—
1947JeepWillys—Front—
1946JeepWillys—Front—
1945JeepWillys—Front—
1944JeepWillys—Front—
1943JeepWillys—Front—
1942WillysMB—Frontwith Spicer 18 Transfer Case
