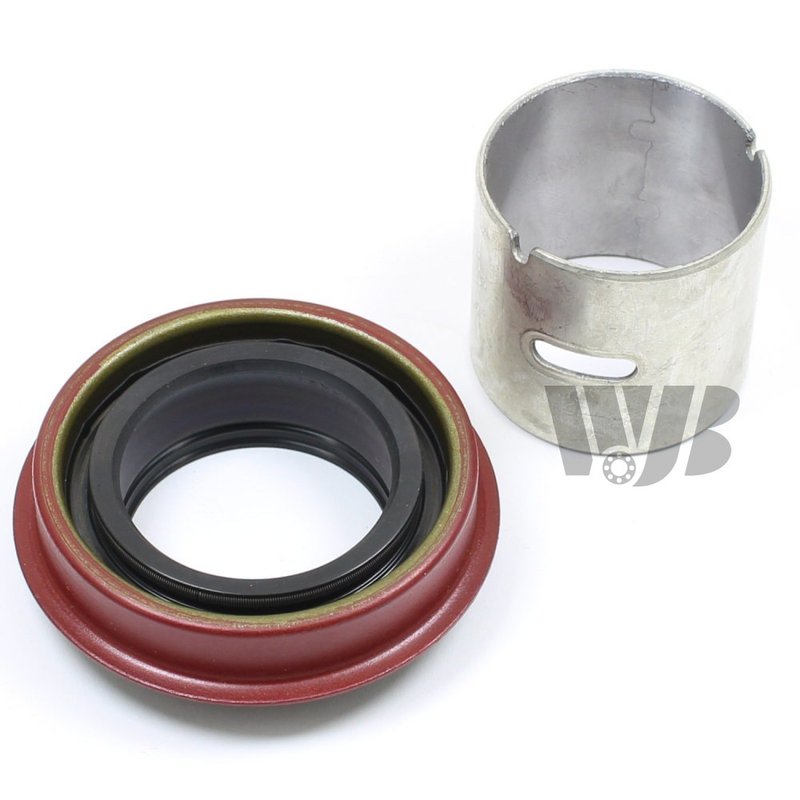

InMotion WS5202 Manual Transmission Output Shaft Seal Kit

Manual Transmission Output Shaft Seal Kit for Ford Applications

Restore sealing performance at the transmission output shaft with the InMotion WS5202 seal kit. Built with nitrile sealing material and sized for a 1.5 in shaft diameter, this kit is made to help keep contaminants out and fluid in across a wide range of Ford, Lincoln, and Mercury manual transmission applications.

Fits 2003-1953 Ford, Mercury, and Lincoln vehicles across multiple transmission configurations, including Ford Mustang, Ford F-150, and Ford Bronco applications listed below.

Key Features

• Part number: WS5202
• Nitrile sealing material for durable fluid resistance
• 1.5 in inside diameter and 1.5 in shaft diameter
• 2.3759999999999999 in outside diameter
• 0.42 in thickness and 0.42 in width
• Designed for manual transmission output shaft sealing applications
• Fits a broad range of Ford, Mercury, and Lincoln vehicles with specified transmission notes

Detailed Description

The InMotion WS5202 manual transmission output shaft seal kit is engineered for precise fitment where a reliable seal is critical. Its nitrile construction helps maintain a tight barrier at the output shaft, reducing the chance of fluid leakage and limiting exposure to dirt and moisture. With a 2.3719999999999999 in housing bore and 2.3759999999999999 in outside diameter, this seal is sized for the listed applications and transmission configurations.

This part is listed for numerous Ford Mustang, Ford F-150, Ford Bronco, Ford Thunderbird, Mercury Cougar, and Lincoln Town Car applications, along with many other classic and late-model vehicles. If you are servicing a manual transmission output shaft on a vehicle with the specified transmission code or notes, WS5202 provides a direct replacement option for the sealing point.

This part cross-references no listed interchange numbers in the provided data.

Common Problems This Seal Can Address

• Transmission fluid seepage at the output shaft
• Contamination entering the rear of the transmission
• Wear-related sealing loss from age or mileage
• Moisture and debris intrusion around the shaft area
• Service issues during transmission reseal or rebuild work

Installation Notes and Tips

• Verify transmission type and notes before ordering; fitment varies by transmission code and configuration.
• Inspect the shaft surface and housing bore for wear, scoring, or corrosion before installation.
• Clean the sealing surface thoroughly to avoid premature leakage.
• Confirm the seal dimensions match the application: 1.5 in ID, 2.3759999999999999 in OD, and 0.42 in thickness.
• Use proper installation tools to seat the seal evenly and avoid distortion.

Quality Assurance

InMotion manufactures this seal with precision-focused construction and high-quality materials for the listed manual transmission applications. The nitrile sealing element is selected for dependable sealing performance in drivetrain service environments.
