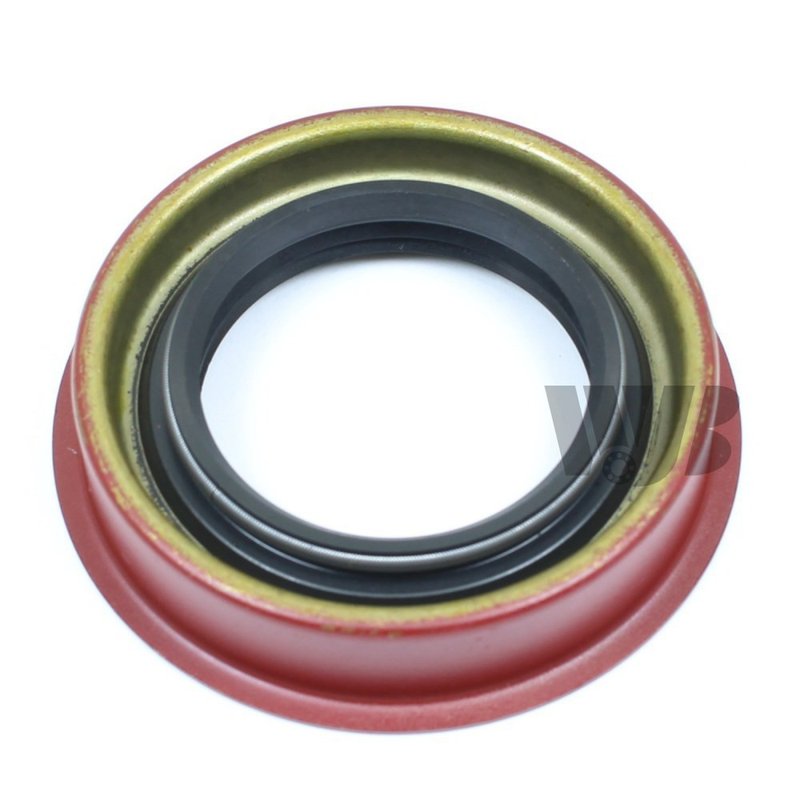

InMotion WS710046 Transfer Case Output Shaft Seal - Front

Transfer Case Output Shaft Seal Overview

The InMotion WS710046 transfer case output shaft seal is built to create a secure barrier against contaminants and fluid loss. It uses nitrile sealing material and precise dimensions to support a tight seal in a wide range of Jeep, Dodge, Chevrolet, and GMC applications.

• Nitrile sealing material for dependable resistance to contamination and leakage.
• Precision dimensions: 1.552 inside diameter, 2.452 outside diameter, and 3.934 thickness.
• Compatible with transfer case applications across multiple Jeep, Dodge, Chevrolet, and GMC models.
• Fits front transfer case positions with application-specific notes for exact vehicle matching.

Detailed Application Coverage

WS710046 is a transfer case output shaft seal for front-position applications and is listed across 1983-2007 vehicle coverage, including Jeep Liberty, Jeep Wrangler, Jeep Cherokee, Dodge Ram 1500, and Chevrolet S10. Fitment notes vary by transfer case family, including New Process 207, 231C, 231D, 231DHD, 231J, and 233C configurations, so exact application matching is important. This part number, WS710046, is used where a precise seal is needed to help maintain internal cleanliness and fluid retention in the transfer case assembly.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Fluid seepage at the transfer case output shaft area.
• Contamination entering the transfer case through a worn seal.
• Seal wear that can lead to reduced sealing performance.
• Application mismatch when the transfer case family differs by model year.

Installation Notes

Verify the transfer case type and fitment notes before installation, especially on Dodge Dakota, Jeep Cherokee, and Chevrolet S10 applications. Match the seal dimensions and housing bore to the original part, and inspect the shaft surface for wear or scoring before assembly. WS710046 should be installed only on the listed applications for proper sealing performance.

Quality Assurance

InMotion manufactures this seal with precision and high-quality materials to support reliable sealing performance and long service life in demanding driveline use.
