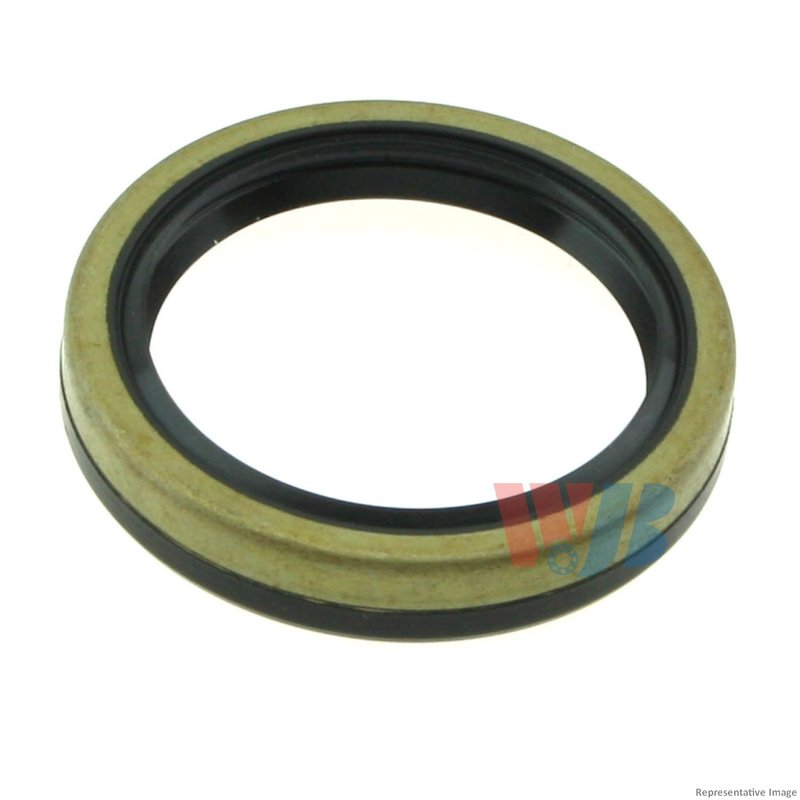

InMotion WS710113 Transfer Case Output Shaft Seal - Front
| Brand | InMotion WS710113 |
|---|---|
| Position | Front |
| Inside Diameter | 1.575 |
| Thickness | 0.47199999999999998 |
| Outside Diameter | 2.9649999999999999 |
| Shaft Diameter | 1.575 |
| Sealing Material | Nitrile |
| Housing Bore | 2.9529999999999998 |
| Fits | INFINITI and Nissan · 49 vehicles |
Precision sealing. Nitrile material helps maintain a secure barrier against fluid loss and contamination.
Exact dimensions. Sized for a controlled fit at the shaft and housing bore during service.
Drivetrain service part. Built for transfer case sealing in select Nissan and INFINITI applications.
Transfer Case Output Shaft Seal Overview
This InMotion transfer case output shaft seal is built for Nissan and INFINITI applications that need a precise sealing surface at the front position. Part number WS710113 uses nitrile sealing material to help keep contaminants out and fluid in, supporting reliable transfer case operation.
Key Features
- Nitrile sealing material for dependable fluid control.
- Precision dimensions for a secure fit at the shaft and housing bore.
- Engineered to form a tight barrier against debris and moisture.
- Direct replacement style for select Nissan and INFINITI transfer case applications.
- Part number WS710113 for easy identification.
Detailed Description
WS710113 is a transfer case output shaft seal designed around specific dimensional requirements, including a 1.575-inch inside diameter, 2.965-inch outside diameter, and 2.953-inch housing bore. The nitrile sealing element is selected for sealing performance in drivetrain service, where controlling leaks and contamination is critical. This seal is a practical choice for Nissan Frontier, Nissan Pathfinder, Nissan Xterra, Nissan Pickup, Nissan D21, Nissan Pathfinder Armada, and INFINITI QX4 front-position transfer case applications listed in the fitment data. If you are servicing a Nissan Pathfinder or related drivetrain, WS710113 provides the sealing profile needed for the specified transfer case configurations.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems It Helps Address
- Transfer case fluid seepage at the output shaft area.
- Contamination entering the sealing interface.
- Wear-related loss of sealing integrity.
- Moisture intrusion around the shaft opening.
- Service issues tied to an aging transfer case seal.
Installation Notes and Tips
Confirm the transfer case type and front-position fitment before installation, especially on Nissan Pathfinder and Nissan D21 applications with Fuji Univance TX10, TX10A, or ATX14A transfer cases. Match the seal dimensions to the shaft and housing bore during service, and inspect the sealing surface for wear or damage before assembly. Proper cleaning of the bore and shaft area helps the new seal seat correctly.
Quality Assurance
InMotion manufactures this seal with precision and high-quality materials to support reliable drivetrain sealing performance.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2004 | Nissan | Frontier | 4WD | Front | — |
| 2004 | Nissan | Pathfinder | 4WD | Front | with Fuji Univance ATX14A Transfer Case |
| 2004 | Nissan | Pathfinder Armada | 4WD | Front | with Fuji Univance TX10A Transfer Case |
| 2004 | Nissan | Xterra | 4WD | Front | with Fuji Univance TX10A Transfer Case |
| 2003 | Nissan | Frontier | 4WD | Front | — |
| 2003 | Nissan | Pathfinder | 4WD | Front | with Fuji Univance TX10A Transfer Case |
| 2003 | Nissan | Xterra | 4WD | Front | with Fuji Univance TX10A Transfer Case |
| 2002 | INFINITI | QX4 | 4WD | Front | — |
| 2002 | Nissan | Frontier | 4WD | Front | — |
| 2002 | Nissan | Pathfinder | 4WD | Front | with Fuji Univance ATX14A Transfer Case |
| 2002 | Nissan | Xterra | 4WD | Front | with Fuji Univance TX10A Transfer Case |
| 2001 | INFINITI | QX4 | 4WD | Front | — |
| 2001 | Nissan | Frontier | 4WD | Front | — |
| 2001 | Nissan | Pathfinder | 4WD | Front | with Fuji Univance TX10A Transfer Case |
| 2001 | Nissan | Xterra | 4WD | Front | with Fuji Univance TX10A Transfer Case |
| 2000 | INFINITI | QX4 | 4WD | Front | — |
| 2000 | Nissan | Frontier | 4WD | Front | — |
| 2000 | Nissan | Pathfinder | 4WD | Front | with Fuji Univance ATX14A Transfer Case |
| 2000 | Nissan | Xterra | 4WD | Front | with Fuji Univance TX10A Transfer Case |
| 1999 | INFINITI | QX4 | 4WD | Front | — |
| 1999 | Nissan | Frontier | 4WD | Front | — |
| 1999 | Nissan | Pathfinder | 4WD | Front | with Fuji Univance ATX14A Transfer Case |
| 1998 | INFINITI | QX4 | 4WD | Front | — |
| 1998 | Nissan | Frontier | 4WD | Front | — |
| 1998 | Nissan | Pathfinder | 4WD | Front | with Fuji Univance TX10A Transfer Case |
| 1997 | INFINITI | QX4 | 4WD | Front | — |
| 1997 | Nissan | Pathfinder | 4WD | Front | with Fuji Univance ATX14A Transfer Case |
| 1997 | Nissan | Pickup | 4WD | Front | — |
| 1996 | Nissan | Pathfinder | 4WD | Front | with Fuji Univance TX10A Transfer Case |
| 1996 | Nissan | Pickup | 4WD | Front | — |
| 1995 | Nissan | Pathfinder | 4WD | Front | with Fuji Univance TX10A Transfer Case |
| 1995 | Nissan | Pickup | 4WD | Front | — |
| 1994 | Nissan | D21 | 4WD | Front | with Fuji Univance TX10A Transfer Case |
| 1994 | Nissan | Pathfinder | 4WD | Front | with Fuji Univance TX10A Transfer Case |
| 1993 | Nissan | D21 | 4WD | Front | with Fuji Univance TX10A Transfer Case |
| 1993 | Nissan | Pathfinder | 4WD | Front | with Fuji Univance TX10A Transfer Case |
| 1992 | Nissan | D21 | 4WD | Front | with Fuji Univance TX10A Transfer Case |
| 1992 | Nissan | Pathfinder | 4WD | Front | with Fuji Univance TX10A Transfer Case |
| 1991 | Nissan | D21 | 4WD | Front | with Fuji Univance TX10A Transfer Case |
| 1991 | Nissan | Pathfinder | 4WD | Front | with Fuji Univance TX10A Transfer Case |
| 1990 | Nissan | D21 | 4WD | Front | with Fuji Univance TX10A Transfer Case |
| 1990 | Nissan | Pathfinder | 4WD | Front | with Fuji Univance TX10A Transfer Case |
| 1989 | Nissan | D21 | 4WD | Front | with Fuji Univance TX10 Transfer Case |
| 1989 | Nissan | Pathfinder | 4WD | Front | — |
| 1988 | Nissan | D21 | 4WD | Front | with Fuji Univance TX10 Transfer Case |
| 1988 | Nissan | Pathfinder | 4WD | Front | — |
| 1987 | Nissan | D21 | 4WD | Front | with Fuji Univance TX10 Transfer Case |
| 1987 | Nissan | Pathfinder | 4WD | Front | — |
| 1986 | Nissan | D21 | 4WD | Front | with Fuji Univance TX10 Transfer Case |
