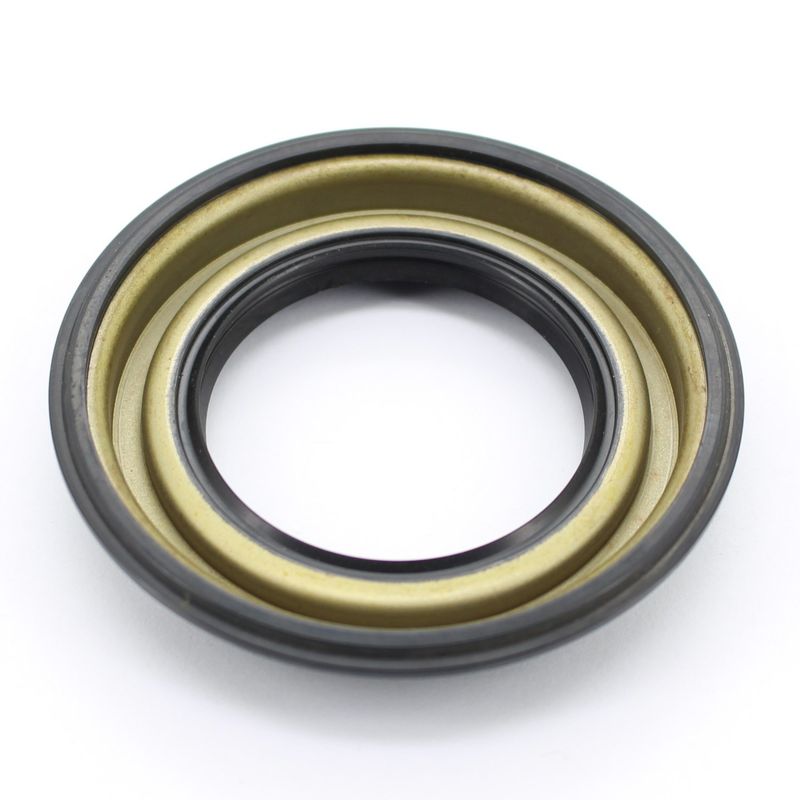

InMotion WS710126 Wheel Seal - Front Inner

Front Inner Differential Pinion Seal for Nissan 300ZX

Restore sealing performance at the differential pinion with the InMotion WS710126 wheel seal. Built with nitrile sealing material and a precision case design, it helps keep moisture and road debris out while supporting a tight seal at the pinion area. Fits 1987-1989 Nissan 300ZX, front inner.

Key Features

• Fits 1987-1989 Nissan 300ZX, front inner
• Nitrile seal material for dependable fluid resistance
• SAE 1070 seal case material for structural support
• SAE 1008 spring material for consistent sealing tension
• External markings: 46 x 69.4 x 11
• Part number WS710126 for accurate ordering and lookup

Detailed Description

The InMotion WS710126 is a differential pinion seal engineered around precise dimensions: 45.6 mm inside diameter, 69.4 mm housing bore, 69.6 mm outside diameter, and 11 mm width. Those measurements matter when replacing a worn seal on the differential pinion, where a stable fit helps reduce gear oil leakage and limits contamination at the internal components. For drivers servicing a Nissan 300ZX front inner application, WS710126 provides a direct replacement path based on the listed fitment.

This seal is built from nitrile, with a SAE 1070 seal case and SAE 1008 spring material to maintain sealing contact under operating conditions. The result is a practical replacement for vehicles that need a reliable barrier against debris and moisture in the driveline. WS710126 is a focused solution for Nissan 300ZX differential service, especially when the original seal shows wear, seepage, or contamination-related damage.

What It Helps Address

• Gear oil seepage at the differential pinion area
• Contamination from dirt, water, and road debris
• Loss of sealing tension from an aged or hardened seal
• Wear-related leakage during differential service
• Seal replacement needs on 1987-1989 Nissan 300ZX front inner applications

Installation Notes and Tips

Confirm housing bore, shaft diameter, and seal orientation before installation. Clean the sealing surface thoroughly and inspect the pinion area for scoring or wear that could affect the new seal. Proper seating depth is important for maintaining a uniform seal, and the mating surface should be free of burrs or contamination. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Quality Assurance

InMotion manufactures this seal with precision-focused dimensions and material selection intended for driveline sealing service. Part number WS710126 is specified for the listed Nissan 300ZX fitment and dimensions, supporting accurate replacement selection.
