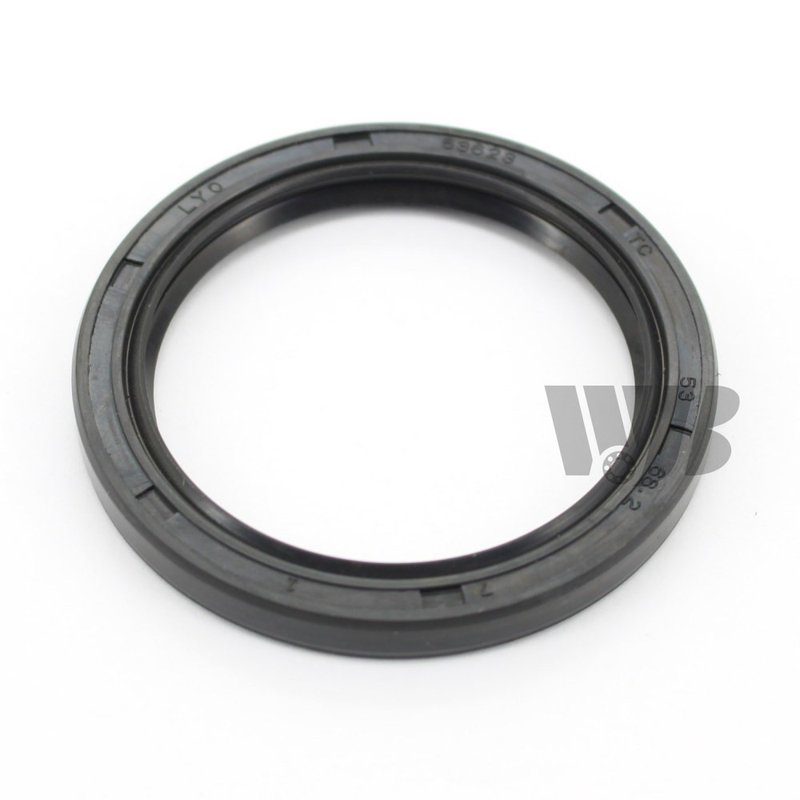

InMotion WS710175 Wheel Seal - Front Outer

Wheel Seal for Differential Pinion Applications

InMotion WS710175 is a nitrile wheel seal built to create a secure barrier against dirt, moisture, and other contaminants. It helps maintain a tight seal at the differential pinion area, supporting cleaner operation and reducing the chance of fluid leakage.

Compatible With 1987-1992 Chevrolet Sprint, Front Outer; 1992 Chevrolet Metro, Front Outer; 1998-2001 Chevrolet Metro, Front Outer; 1987-1988 Suzuki Forsa, Front Outer; 1989-1994 Suzuki Swift, Front Outer; 1992-1997 Geo Metro, Front Outer; 1987-1991 Pontiac Firefly, Front Outer; and 1994-2000 Pontiac Firefly, Front Outer.

• Nitrile construction for sealing performance in driveline service
• Inside diameter: 2.087 in.
• Outside diameter: 2.696 in.
• Width: 0.276 in.
• Shaft diameter: 2.087 in.
• Housing bore: 2.685 in.

Detailed Product Overview

This InMotion wheel seal, part number WS710175, is engineered for precise fitment in differential pinion sealing applications. Its nitrile material is selected for dependable resistance to contaminants while maintaining a consistent seal around the shaft and housing bore dimensions. For drivers servicing a Chevrolet Metro, Geo Metro, Pontiac Firefly, Suzuki Swift, Suzuki Forsa, or Chevrolet Sprint, WS710175 supports the sealing interface that helps protect internal driveline components from debris and moisture intrusion.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Seal Helps Address

• Gear oil seepage at the differential pinion seal area
• Contamination entering the pinion housing
• Wear caused by moisture and road debris exposure
• Loss of sealing integrity from an aged or hardened seal
• Noise or driveline concerns associated with leaking differential fluid

Installation Notes and Tips

Confirm shaft diameter, housing bore, and seal width before installation to match the original sealing dimensions. Clean the sealing surface thoroughly and inspect the pinion area for scoring, corrosion, or wear that could affect seal life. Proper alignment during installation helps the seal seat evenly and maintain contact pressure.

Quality Assurance

InMotion manufactures this seal with precision-focused construction and high-quality materials for driveline sealing service. Part number WS710175 is built to support reliable sealing performance in the listed Chevrolet, Geo, Pontiac, and Suzuki applications.
