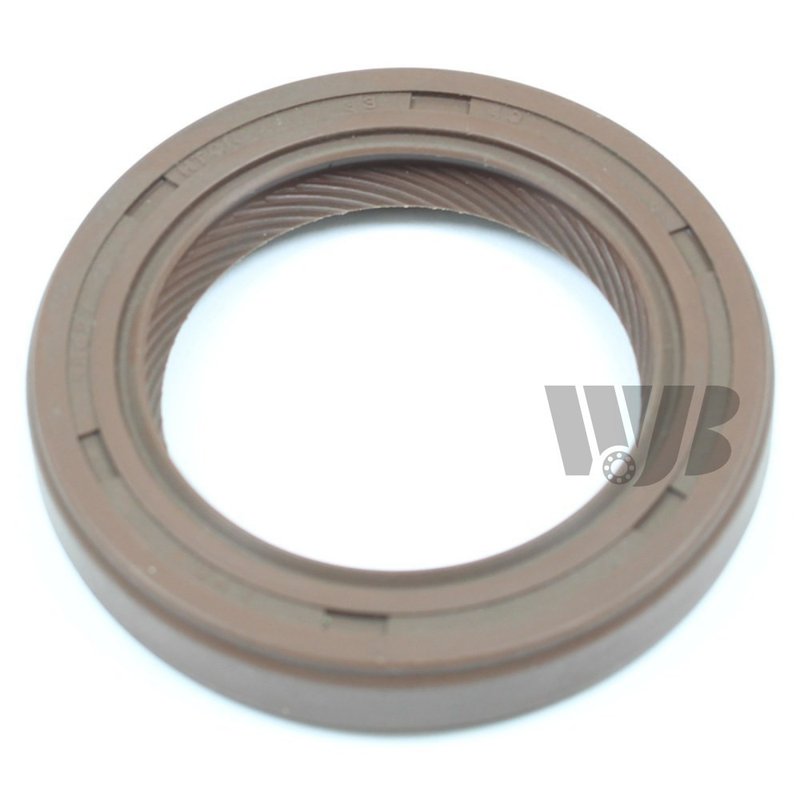

InMotion WS710236 Engine Oil Pump Seal

Engine Oil Pump Seal for Subaru Applications

The InMotion WS710236 is a precision-engineered seal built from polyacrylate material to create a secure barrier against contaminants and fluid loss. It is designed for Subaru WRX STI, WRX, Impreza, Forester, Legacy, Outback, Baja, and Saab 9-2X applications where a reliable sealing surface is critical.

• Polyacrylate sealing material for durable resistance in engine sealing applications
• Inside diameter: 1.299 in; outside diameter: 1.938 in
• Thickness and width: 0.315 in
• Housing bore: 1.929 in; shaft diameter: 1.299 in
• Direct-fit sealing dimensions for select Subaru and Saab applications

Fitment and Application Details

Compatible with 2013-2019 Subaru WRX STI, 2013-2015 Subaru WRX, 1993-2014 Subaru Impreza, 1998-2013 Subaru Forester, 1990-2012 Subaru Legacy, 2000-2012 Subaru Outback, 2005-2006 Saab 9-2X, and 2003-2006 Subaru Baja. The InMotion WS710236 is specified for vehicles that require a seal with these exact dimensions and material characteristics.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What This Seal Helps Address

• Oil seepage at the sealing interface
• Contamination from dirt, debris, and moisture
• Wear related to an aging or hardened seal
• Loss of sealing integrity around the shaft and housing bore
• Service issues tied to differential or engine sealing leakage

Installation Notes and Tips

Verify shaft diameter, housing bore, inside diameter, and thickness before installation. Clean the sealing surfaces thoroughly and inspect the mating components for scoring or wear that could affect seal performance. Confirm vehicle application by year, make, and model before ordering, especially on Subaru WRX STI, WRX, and Impreza platforms.

Quality Assurance

InMotion manufactures this seal with precision and high-quality materials to support consistent sealing performance in demanding driving conditions. Part number WS710236 is built to match the listed dimensions and application coverage for proper fitment.
