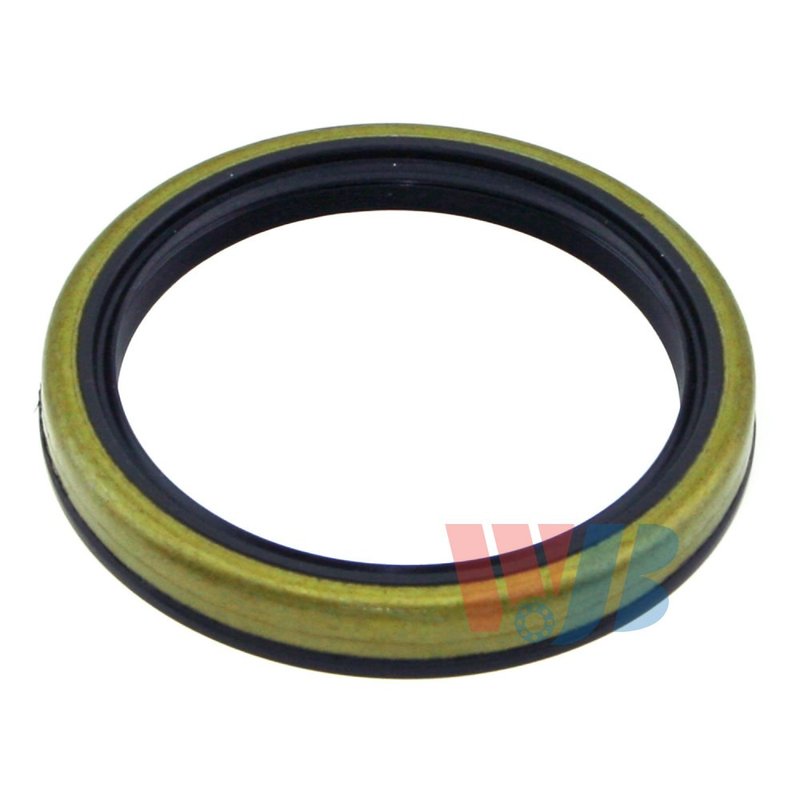

InMotion WS710323 Wheel Seal - Front Outer

Wheel Seal for Front Outer Applications

The InMotion WS710323 wheel seal is built with nitrile material to help maintain a secure seal at the front outer position. It is sized for precise housing and shaft dimensions, helping keep contaminants out and fluid where it belongs in the wheel-end assembly.

Compatible With 2001-2005 Kia Rio, front outer; 1994-1997 Ford Aspire, front outer; 1991-1994 Mercury Capri, front outer; 1988-1993 Ford Festiva, front outer; 1986-1989 Mazda 323, front outer; and 1987-1989 Mercury Tracer, front outer.

Key Features

• Nitrile construction for sealing performance in driveline and axle service
• Inside diameter: 2.008 in.
• Outside diameter: 2.488 in.
• Width: 0.335 in.
• Shaft diameter: 2.008 in.
• Housing bore: 2.48 in.
• Designed for front outer wheel-end sealing applications
• Part number: WS710323

Detailed Description

InMotion WS710323 is a front outer wheel seal engineered to create a tight barrier against moisture, dirt, and road debris. The nitrile sealing material and defined dimensions help support a proper fit in the wheel-end assembly, reducing the chance of leakage and helping protect internal components from contamination. This part number WS710323 is listed for select compact vehicles including Kia Rio, Ford Aspire, Mercury Capri, Ford Festiva, Mazda 323, and Mercury Tracer applications.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Gear oil or lubricant seepage at the wheel-end seal area
• Contamination from water, dust, and debris entering the assembly
• Wear caused by a compromised sealing surface
• Noise or rough operation related to seal failure and fluid loss
• Premature component damage from inadequate sealing

Installation Notes and Tips

Verify the front outer position and confirm the seal dimensions before installation. Inspect the shaft and housing bore for wear, scoring, or corrosion, and replace damaged mating surfaces as needed. Clean the sealing area thoroughly so the new seal seats evenly and maintains consistent contact.

Quality Assurance

InMotion manufactures this seal with precision-focused construction and high-quality materials to support reliable sealing performance in driveline and axle service.
